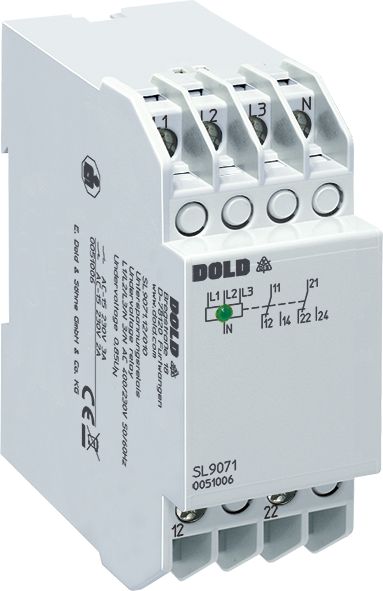

Dold 0051006 SL9071.12/010 3/N AC400/230V 0.85UN undervoltage relay
|
256,70 EUR |
|||||||||||
|
( 305,47 EUR incl. VAT ) ≈ £214.86 | ≈ $282.11 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 1312789 | ||||||||||
| Mfg Part No: | 0051006 | ||||||||||
| UPC/EAN: | 4030641510060 | ||||||||||
| Weight: | 0.19 kg | ||||||||||
| Type: | SL9071.12/010 3/N AC400/230V 0,85UN | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Dold 0051006:
Applications
This relay is suitable for use in industrial and commercial installations, particularly in systems where high operational safety and availability are required. It is used to prevent damage to consumers caused by unexpected voltage fluctuations, phase failures, or asymmetric voltage distribution. It is especially relevant in installations with single-phase consumers connected to the neutral conductor, as a broken neutral conductor can lead to dangerous overvoltages or undervoltages. Monitoring is independent of phase sequence, increasing flexibility during installation.
Functions and Equipment in Detail
The device detects several critical network disturbances: undervoltage, phase failure, asymmetry (including reverse voltage), and missing or broken neutral conductor. Asymmetry detection occurs at a deviation of approximately 5 to 10 % of the phase voltage. Neutral conductor monitoring protects against damage caused by interruption of the neutral conductor. The output contacts consist of two changeover contacts (2 C/O contacts), sufficient to control safety functions such as shutting down equipment or activating emergency lighting. The contacts are made of AgNi (silver-nickel), ensuring high switching durability and corrosion resistance. The switching voltage is AC 250 V, and the device has a thermal current rating of 4 A.
Technology Explained Simply
The relay operates on the rest current principle, meaning the output relay is not activated during normal operation and only switches when a fault is detected (e.g., undervoltage). This reduces mechanical stress on the contacts and extends service life. The LED indicator lights green when the network is fault-free, visually signaling the operational status. The pickup delay is activated, meaning the device ignores short-term voltage fluctuations that do not indicate a permanent fault. The input power consumption is approximately 6 VA (L3-N), and the input currents at nominal voltage are approximately 1.5 mA (L1-N, L2-N) and 25 mA (L3-N). The frequency range is 45 to 65 Hz, making the device suitable for networks operating at 50 Hz and 60 Hz.
Compatibility and Accessories
The device is suitable for single-phase and three-phase connections. In single-phase applications, terminals L1, L2, and L3 must be bridged. The SL 9071 housing type is designed for enclosures with mounting plates and cable ducts and features top-mounted connection terminals. It is manufactured in accordance with IEC/EN 60255-1 and provides safe isolation between the measuring circuit and contacts as per IEC/EN 61140 and IEC/EN 60947-1. The electrical service life is approximately 500,000 switching operations at 1 A and AC 230 V. The switching capacity according to AC 15 is 3 A / AC 230 V for closing contacts and 2 A / AC 230 V for opening contacts.
Mounting and Installation
Mounting is performed in enclosures with a mounting plate. The width of 35 mm allows installation in standard switchboards. The connection terminals are located at the top, enabling easy wiring. The device is designed for a depth of 98 mm. The pickup value setting is fixed at 0.85 Un, ensuring standardized monitoring.
Operational Advantages
Early detection of network disturbances enables preventive maintenance and prevents costly damage to equipment and installations. High availability and operational safety increase productivity. The LED indicator provides visual feedback on the operational status, and the rest current principle reduces mechanical stress on the contacts. Monitoring is independent of phase sequence, increasing installation flexibility. Compliance with the IEC/EN 60255-1 standard ensures the reliability and safety of the device.
| Technical data | |
| 1- / 3-phase | 1, 3 |
| Auxiliary voltage | Without |
| Enclosure design | Switch cabinet |
| Nominal voltage max. | 3/N AC 500 / 290 V |
| Output contacts | 2 C/O contacts |
| Width | 35 mm |
| Type | SL 9071 |
| Operate delay | |
| Variant | |
| Contact equipping | 2 changeover contacts |
| Nominal voltage | 3/N AC 400 / 230 V |
| Response value | 0,85 Un |
| Variant | With neutral connection. With asymmetry detection. With neutral conductor monitoring. Without time delay |
