Dold 0050982 BG5924.48 AC/DC24V emergency stop module

Your rating:
Average rating
product review for Dold 0050982 BG5924.48 AC/DC24V emergency stop module
( 4.7 / 5 ) 6 ratings

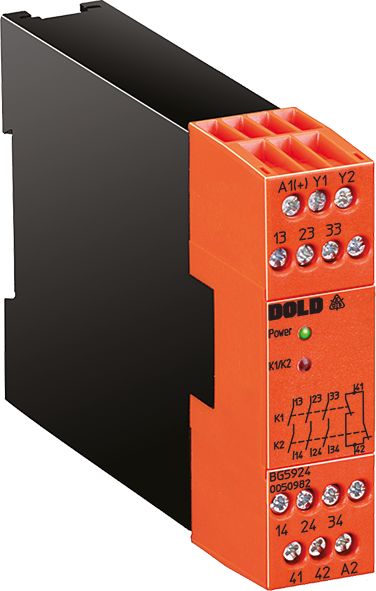

Dold 0050982
This image may differ from the desired article.
262,23 EUR
( 312,05 EUR incl. VAT )
≈ £219.49  |  ≈ $288.19
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0050982 BG5924.48 AC/DC24V emergency stop module
Datasheet:file_download Download
Lieske Part No.:608743
Mfg Part No: 0050982
UPC/EAN: 4030641509828
Weight:0.237 kg
Type:BG5924.48AC/DC24V
Graduated prices net
From piecesPrice per pieces
4252,40 EUR
8242,56 EUR
12232,73 EUR
16222,90 EUR

Product information for Dold 0050982:

The Dold emergency stop module BG5924.48AC/DC24V is a safety relay for use in industrial plants, ensuring the protection of personnel and machinery through safety-oriented enabling and interruption of a safety circuit. The device is designed for operation with a nominal voltage of AC/DC 24 V and has a width of 22.5 mm, making it suitable for installation in standard 35 mm control panels. It is available as a 1- or 2-channel variant and is used for the safe control of emergency stop functions in machines and plants.

Safety functions and approvals
This module meets the requirements for safety functions according to EN ISO 13849-1 with Performance Level (PL) e and Category 4. Additionally, it complies with Safety Integrity Level (SIL) 3 as per IEC/EN 62061 and SIL Claimed Level (SIL CL) 3. These approvals make it suitable for applications requiring high safety integrity, for example in automation technology or in combustion plants according to EN 50156-1. The approvals TÜV, UKCA, CCC and UL-Recognized confirm compliance with international safety standards.

Functions and equipment in detail
The device features a contact configuration with 3 NO contacts and 1 NC contact, where up to 4 NO contacts can be used as output contacts. The connection technology uses removable screw terminals designed for wire connections up to 2 x 2.5 mm² stranded wire with sleeve DIN 46228-1/-2/-3/-4 or 2 x 1.5 mm² stranded wire with sleeve and plastic collar. The terminal blocks are removable, facilitating installation and maintenance. LED indicators for channel 1, channel 2, and operating status enable visual monitoring of the module. A short-circuit detection between terminal Y1 and ground provides additional safety.

Technology explained simply
The safety relay operates with a thermal current rating (Ith) of up to 5 A. Galvanic isolation in the circuit (in AC 230 V variants) ensures electrical isolation between control and load circuits, enhancing safety. The 1- or 2-channel configuration allows control of various safety functions, with operation possible both manually and automatically. The width of 22.5 mm enables compact installation in standard control panels.

Compatibility and accessories
The module is designed for use in safety systems requiring high availability and reliability. It can be used in combination with other safety components such as emergency stop switches, sensors, or controls. The approvals and technical features make it suitable for use in various industries, particularly in manufacturing, packaging technology, or power generation.

Mounting and installation
Installation is carried out in standard 35 mm control panels. The removable terminal blocks facilitate installation and maintenance. The connection terminals are designed for use with wires up to 2.5 mm², with the use of sleeves and plastic collars according to DIN 46228-1/-2/-3/-4 recommended. The LED indicators support commissioning and diagnostics.

Advantages in operation
The module offers high safety integrity through the approvals PL e / Category 4 and SIL 3. The visual indication of operating states and short-circuit detection increase operational safety. The compact design and removable terminal blocks simplify installation and maintenance. Support for manual and automatic start enables flexible integration into existing control systems.

Technical data
1- / 2-channel1, 2
ApprovalsUL-Recognized
Cat. / PL acc. to EN ISO 13849-14/e
ConnectionPluggable screw terminals
Output contacts max.4 NO contacts
SIL CL acc. to IEC/EN 620613
SIL acc. to IEC/EN 620613
Thermal current Ith max.5 A
Width22,5 mm
TypeBG 5924
Variant
Contact equipping3 NO contacts, 1 NC contact
Nominal voltageAC/DC 24 V
Approvals and MarkingsTÜV, UKCA, CCC


Product data sheet
Datasheet for Dold 0050982, EAN: 4030641509828
