Dold 0050981 BG5924.04 AC/DC24V emergency stop module

Your rating:
Average rating
product review for Dold 0050981 BG5924.04 AC/DC24V emergency stop module
( 4.3 / 5 ) 15 ratings

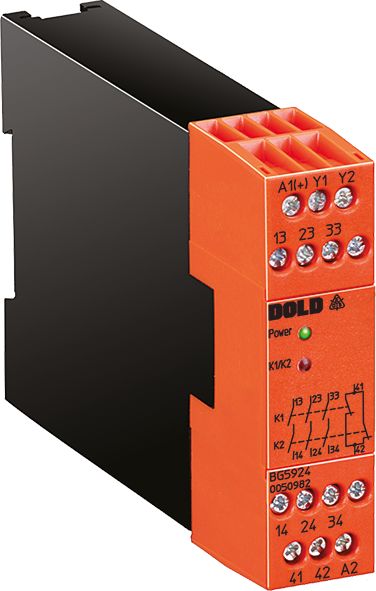

Dold 0050981
This image may differ from the desired article.
Dold 0050981Dold 0050981
262,23 EUR
( 312,05 EUR incl. VAT )
≈ £219.49  |  ≈ $288.19
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0050981 BG5924.04 AC/DC24V emergency stop module
Datasheet:file_download Download
Lieske Part No.:802813
Mfg Part No: 0050981
UPC/EAN: 4030641509811
Weight:0.237 kg
Type:BG5924.04 AC/DC24V
Graduated prices net
From piecesPrice per pieces
4252,40 EUR
8242,56 EUR
12232,73 EUR
16222,90 EUR

Product information for Dold 0050981:

The Dold BG5924.04 AC/DC24V is an emergency stop module for use in safety-oriented systems. It serves for controlled release and interruption of safety circuits to protect personnel and machinery from hazards. The device is designed for use in industrial environments where high safety integrity is required. It features a contact configuration with 4 normally closed contacts and is rated for a nominal voltage of AC/DC 24 V. The width is 22.5 mm, enabling compact mounting in standard control panels.

Applications
This module is used in systems subject to high safety requirements, for example in manufacturing industry, on machines with emergency stop functions, or in combustion systems, as it complies with the requirements of EN 50156-1. It is suitable for single-channel or dual-channel wiring, allowing flexible integration into different safety architectures. The application is particularly in systems requiring safe shutdown in hazardous situations, such as with emergency stop buttons, safety light curtains, or other safety functions.

Functions and Equipment in Detail
The device features removable screw terminals, enabling flexible and secure wiring. The terminals are designed for stranded wires up to 2 x 1.5 mm² with ferrules and plastic sleeves according to DIN 46228-1/-2/-3/-4 or 2 x 2.5 mm² with ferrules according to DIN 46228-1/-2/-3. The output contacts consist of 4 normally closed contacts, rated for operation with a thermal current of up to 5 A. Operating states are visually indicated by LED displays for channel 1 and channel 2, as well as for the general operating status. A short-circuit detection between terminal Y1 and ground provides additional safety in case of connection faults.

Technology Explained Simply
The module is designed for use in safety-critical systems and meets the requirements for safety integrity. It achieves a Performance Level (PL) e and Category 4 according to EN ISO 13849-1, representing the highest level of safety performance under the Machinery Directive. Additionally, it complies with SIL 3 according to IEC/EN 62061 and SIL 3 according to IEC/EN 61508, confirming the reliability and fault tolerance of the device in safety-critical systems. The certifications TÜV, UKCA, CCC as well as recognition by UL-Recognized confirm compliance with international safety standards.

Compatibility and Accessories
The module is designed for use in systems with emergency stop functions and can be combined with other safety components such as emergency stop buttons, safety light curtains, or safety relays. It is suitable for single- or dual-channel wiring, allowing integration into various safety architectures. The terminal technology with removable terminals enables flexible wiring. Compatibility with AC/DC 24 V makes it suitable for a wide range of control systems.

Mounting and Installation
Mounting is done in standard control panels with a width of 22.5 mm. The removable terminal blocks facilitate installation and maintenance. The terminals are rated for wires up to 2.5 mm², with the use of ferrules and plastic sleeves according to DIN 46228-1/-2/-3/-4 recommended. Installation must follow the manufacturer’s technical instructions, ensuring correct wiring and compliance with safety regulations.

Operational Advantages
The module offers high safety integrity with PL e / Cat. 4 and SIL 3, making it suitable for critical applications. The LED displays enable quick diagnosis of operating status. Short-circuit detection increases system reliability. Removable terminals simplify installation and maintenance. Compatibility with AC/DC 24 V and support for single- and dual-channel wiring increase flexibility during system integration.

Technical data
1- / 2-channel1, 2
ApprovalsUL-Recognized
Cat. / PL acc. to EN ISO 13849-14/e
ConnectionPluggable screw terminals
Output contacts max.4 NO contacts
SIL CL acc. to IEC/EN 620613
SIL acc. to IEC/EN 620613
Thermal current Ith max.5 A
Width22,5 mm
TypeBG 5924
Variant
Contact equipping4 NO contacts
Nominal voltageAC/DC 24 V
Approvals and MarkingsTÜV, UKCA, CCC


Product data sheet
Datasheet for Dold 0050981, EAN: 4030641509811

Questions & answers

What is the delivery time of Dold 0050981 BG5924.04 AC/DC24V emergency stop module ?

The article Dold 0050981 BG5924.04 AC/DC24V emergency stop module is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0050981 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0050981 BG5924.04 AC/DC24V emergency stop module always at the best possible price. We can give you a discount of 2% on Dold 0050981 BG5924.04 AC/DC24V emergency stop module if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Dold 0050981 BG5924.04 AC/DC24V emergency stop module we can offer you a price of 252,40 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
