Dold 0050946 BD9080.12 3AC400V UH AC/DC24-80V phase monitor Tv=0.1-5s

Your rating:
Average rating
product review for Dold 0050946 BD9080.12 3AC400V UH AC/DC24-80V phase monitor Tv=0.1-5s
( 4.5 / 5 ) 13 ratings

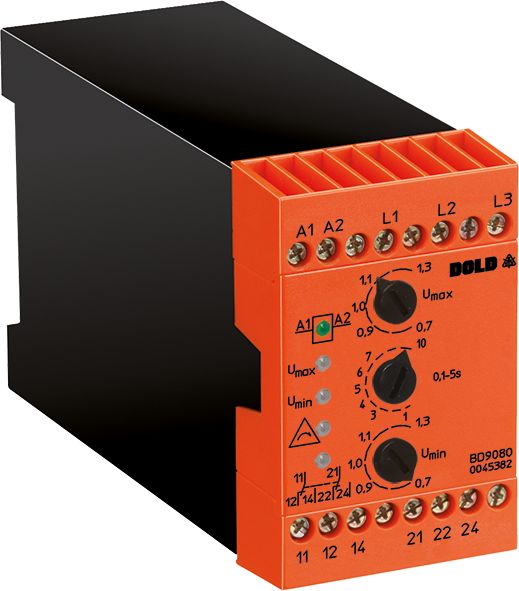

Dold 0050946
This image may differ from the desired article.
435,95 EUR
( 518,78 EUR incl. VAT )
≈ £364.89  |  ≈ $479.11
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0050946 BD9080.12 3AC400V UH AC/DC24-80V phase monitor Tv=0.1-5s
Datasheet:file_download Download
Lieske Part No.:984478
Mfg Part No: 0050946
UPC/EAN: 4030641509460
Weight:0.35 kg
Type:BD9080.12 3AC400V UH AC/DC24-80V
Graduated prices net
From piecesPrice per pieces
4419,60 EUR
8403,25 EUR
12386,91 EUR
16370,56 EUR

Product information for Dold 0050946:

The phase monitor BD9080.12 from Dold is an industrial monitoring switch for three-phase AC power networks. It is designed for continuous monitoring of voltage levels, phase sequence, asymmetry, and power failure in systems with nominal voltage 3AC 400 V. The device operates on the standby current principle, where the output relay is not activated in the event of a fault, enabling safe and precise fault detection. The auxiliary voltage is AC/DC 24 to 80 V, making the device flexible for use in various enclosure environments. The width of 45 mm allows for compact mounting in standard control panels.

Applications

The BD9080.12 is designed for use in industrial and commercial installations where power supply reliability is critical. It monitors three-phase networks for under- and over-voltage, asymmetry, incorrect phase sequence, and power failure. These functions are particularly important in production plants, pump stations, air conditioning systems, or drives, where an unexpected voltage drop or phase disturbance can cause damage or downtime. Early detection of disturbances enables preventive maintenance and increases operational safety.

Functions and Equipment in Detail

The device features two changeover contacts as output contacts, which can be used to control auxiliary relays, warning lights, or switching devices. The pickup delay is adjustable in the range of 0.1 to 5 seconds, allowing adaptation to specific system requirements. The reset delay is also in the range of 0.1 to 5 seconds, filtering out short-term voltage fluctuations and avoiding unnecessary tripping. The maximum measurement voltage is 750 V, with the standard measurement range set for 3AC 400 V.

Technology Explained Simply

The phase monitor detects the voltage values of the three phases (L1, L2, L3) and compares them with the set threshold values. If the upper or lower voltage limit is exceeded (adjustable range 0.7 to 1.3 times nominal voltage) or if asymmetry (±8 to 20% deviation) or incorrect phase sequence is detected, the output relay is activated. The LED indicators signal the operating status: one LED indicates the presence of auxiliary voltage (A1/A2), another indicates over-voltage (U max.), a third indicates under-voltage (U min.), a fourth indicates asymmetry, incorrect phase sequence, or power failure (Δ), and a fifth LED indicates the relay contact position. The current consumption is approximately 0.5 mA per phase (L1, L2) and 0.8 mA (L3) at nominal voltage.

Compatibility and Accessories

The device is designed for use in enclosures and complies with the standard IEC/EN 60255-1. The auxiliary voltage can be drawn from the network being monitored, which restricts the permissible voltage range of the network to 0.8 to 1.1 times the auxiliary voltage. The maximum operating altitude is 2000 m above sea level. The operating temperature range is -20 °C to +60 °C, and the storage temperature range is also -20 °C to +60 °C. The electrical life expectancy is at least 250,000 switching operations at 1 A and AC 230 V, and the mechanical life expectancy is at least 50 million switching operations. The short-circuit withstand capability is designed for a maximum fuse rating of 4 A gG/gL.

Mounting and Installation

The phase monitor is mounted in enclosures and connected to the three phases (L1, L2, L3) as well as to the auxiliary voltage terminals (A1/A2). The connection terminals are clearly labeled: L1, L2, L3 for phase voltage, A1/A2 for auxiliary voltage, and contacts 11-12-14 and 21-22-24 for the two changeover contacts. Mounting is done in an enclosure with a width of 45 mm. The connection terminals are designed for secure connections, and the device display allows for quick visual inspection of the operating status.

Advantages in Operation

Through precise and reliable monitoring of network parameters, the BD9080.12 enables early detection of disturbances. The adjustable pickup delay reduces false alarms caused by short-term voltage fluctuations. The LED indicators provide clear visual feedback, accelerating fault localization. The high life expectancy and robust construction ensure long operational life with minimal maintenance. Compatibility with various auxiliary voltages and compliance with the standard IEC/EN 60255-1 ensure safe and standard-compliant integration into existing systems.

Technical data
1- / 3-phase3
Enclosure designSwitch cabinet
Measuring range max.750 V
Output contacts2 C/O contacts
Standard measuring range3 AC 400 V
Width45 mm
TypeBD 9080
Operate delayYes
Variant
Auxiliary voltageAC/DC 24 - 80 V
Contact equipping2 changeover contacts
Nominal voltage3AC 400 V
Release delay0,1 - 5 s
Approvals and MarkingsCCC
VariantDe-Energized on trip


Product data sheet
Datasheet for Dold 0050946, EAN: 4030641509460

Questions & answers

What is the delivery time of Dold 0050946 BD9080.12 3AC400V UH AC/DC24-80V phase monitor Tv=0.1-5s ?

The article Dold 0050946 BD9080.12 3AC400V UH AC/DC24-80V phase monitor Tv=0.1-5s is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0050946 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0050946 BD9080.12 3AC400V UH AC/DC24-80V phase monitor Tv=0.1-5s always at the best possible price. We can give you a discount of 2% on Dold 0050946 BD9080.12 3AC400V UH AC/DC24-80V phase monitor Tv=0.1-5s if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Dold 0050946 BD9080.12 3AC400V UH AC/DC24-80V phase monitor Tv=0.1-5s we can offer you a price of 419,60 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
