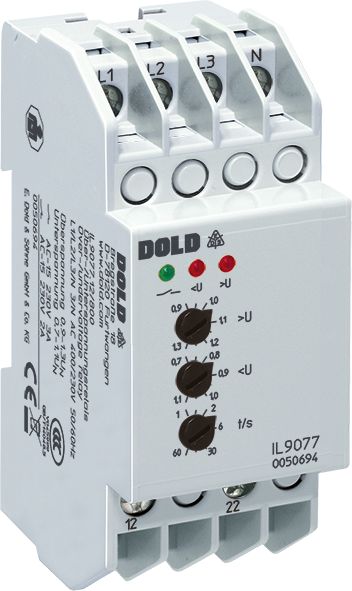

Dold 0050694 IL9077.12/800 3/N AC400/230V 1-60S under-voltage/over-voltage relay

Your rating:
Average rating
product review for Dold 0050694 IL9077.12/800 3/N AC400/230V 1-60S under-voltage/over-voltage relay
( 4.5 / 5 ) 20 ratings
Dold 0050694
This image may differ from the desired article.
Dold 0050694Dold 0050694
293,07 EUR
( 348,75 EUR incl. VAT )
≈ £245.30  |  ≈ $322.08
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0050694 IL9077.12/800 3/N AC400/230V 1-60S under-voltage/over-voltage relay
Datasheet:file_download Download
Lieske Part No.:1312733
Mfg Part No: 0050694
UPC/EAN: 4030641506940
Weight:0.13 kg
Type:IL9077.12/800 3/N AC400/230V 1-60S
Graduated prices net
From piecesPrice per pieces
4282,08 EUR
8271,09 EUR
12260,10 EUR
16249,11 EUR

Product information for Dold 0050694:

The Dold under-/overvoltage relay IL9077.12/800 3/N AC400/230V 1-60S is an industrial power supply monitoring switch designed for continuous monitoring of alternating and three-phase power networks for under- and overvoltage conditions. The device is particularly suitable for monitoring self-generation systems, where stable and secure network voltage is critical for the operation of plants and machines. It operates on the rest current principle, whereby the output relay is not activated in the event of a fault, enabling clear fault detection. The mounting width is 35 mm, and the device is designed for installation in installation distributors according to DIN 43 880.

Applications
This relay is designed for use in industrial and commercial facilities where reliable power supply monitoring is required. It monitors three-phase networks with nominal voltage 3/N AC 400/230 V, but can also be operated in single-phase mode by connecting terminals L1, L2, and L3. Applications include, for example, monitoring of photovoltaic systems, wind power plants, or other self-generation systems, where voltage fluctuations or phase failures can cause damage or operational interruptions.

Functions and Features in Detail
The device detects overvoltage, undervoltage, and phase failure, and signals fault conditions via multiple LEDs. A green LED indicates normal operation, while two red LEDs indicate the respective fault cause: “< U” for undervoltage and “> U” for overvoltage. The trigger values for over- and undervoltage are separately adjustable, with the overvoltage range extending from 0.9 to 1.3 times nominal voltage (U_N) and the undervoltage range from 0.7 to 1.1 times nominal voltage (U_N). The time delay for resetting to normal operation is adjustable between 1 and 60 seconds. Overvoltage detection occurs immediately, while undervoltage detection is delayed by approximately 0.5 seconds.

Technology Explained Simply
The relay measures all three phase voltages against the neutral conductor (N). If all voltages are within the set normal range, the output relay is energized and the green LED lights up. As soon as at least one phase exceeds the set overvoltage trigger value or falls below the undervoltage trigger value, the relay de-energizes, the green LED turns off, and the corresponding red LED lights up. When the voltage returns to the normal range, the relay is re-energized after the set time delay. A hysteresis of approximately 4 % of the set value ensures that the relay does not switch uncontrollably due to minor fluctuations around the trigger value. The input resistances are approximately 180 kΩ (L1-N, L2-N), and the nominal power consumption is approximately 8 VA (L3-N). The device is designed for a nominal frequency of 50/60 Hz and can withstand overloads up to 1.9 times nominal voltage (1.9 U_N) for one hour.

Compatibility and Accessories
The device is suitable for use in single- and three-phase networks. It operates without auxiliary voltage, simplifying installation. Phase sequence is arbitrary, allowing flexible mounting. The device is available in two versions: IL 9077 with 59 mm depth and bottom-mounted terminals for installation and industrial distributors, and SL 9077 with 98 mm depth and top-mounted terminals for enclosures with mounting plate and cable duct. The devices comply with the standard IEC/EN 60255-1 and carry the CCC certification.

Mounting and Installation
The relay is installed in standard installation distributors with 35 mm mounting width. The terminals are designed for direct connection to cables. For single-phase operation, terminals L1, L2, and L3 must be connected together. Mounting is carried out in the usual manner in enclosures or distributors, with the version (IL or SL) adapted to the respective enclosure construction.

Operational Advantages
Thanks to the separate adjustability of trigger values for over- and undervoltage, as well as the adjustable time delay for resetting, the device can be adapted to different requirements. Fault diagnosis via LEDs enables quick fault localization. The rest current principle ensures that the output relay is deactivated in the event of a fault, providing clear fault signaling. The high overload capacity under overvoltage conditions increases the device’s reliability under extreme conditions. Operational safety is enhanced by the rapid response to overvoltage and stable function without auxiliary voltage.

Technical data
1- / 3-phase1, 3
Auxiliary voltageWithout
Enclosure designDistribution board
Measuring range max.400 V
Output contacts2 C/O contacts
Standard measuring range3/N AC 400/230 V
Width35 mm
TypeIL 9077/800
Operate delayYes
Variant
Contact equipping2 changeover contacts
Nominal voltage3/N AC 400/230 V
Time delay1 - 60 s
Approvals and MarkingsCCC
VariantWith neutral connection. De-energized on trip. Fast reaction on overvoltage


Product data sheet
Datasheet for Dold 0050694, EAN: 4030641506940
