Dold 0050639 BH5928.47/61 DC24V 30-300S emergency stop module

Your rating:
Average rating
product review for Dold 0050639 BH5928.47/61 DC24V 30-300S emergency stop module
( 4.4 / 5 ) 7 ratings
Dold 0050639

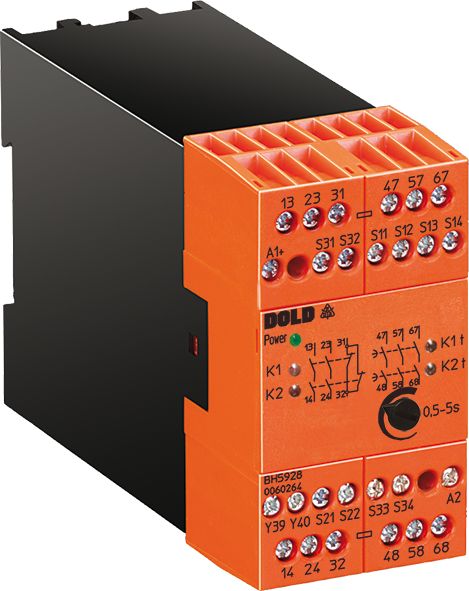

This image may differ from the desired article.
507,41 EUR
( 603,82 EUR incl. VAT )
≈ £424.70  |  ≈ $557.64
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0050639 BH5928.47/61 DC24V 30-300S emergency stop module
Datasheet:file_download Download
Lieske Part No.:1312963
Mfg Part No: 0050639
UPC/EAN: 4030641506391
Weight:0.428 kg
Type:BH5928.47 DC24V 30-300S
Graduated prices net
From piecesPrice per pieces
3499,80 EUR
6492,19 EUR
9484,58 EUR
12476,97 EUR

Product information for Dold 0050639:

The Dold safety relay BH5928.47 DC24V 30-300S is an emergency stop module for use in safety-critical installations in industrial automation. It serves as a protection function for personnel and machinery, particularly in emergency stop circuits where a Stop Category 1 must be implemented. The device is specifically designed for monitoring sliding safety guards and offers an adjustable time delay ranging from 30 to 300 seconds, making it suitable for applications requiring delayed reset behavior.

Applications
This safety relay is used in industrial installations where safe shutdown is required in hazardous situations. It is suitable as a safety door monitor to verify the secure state of safety guards or doors. Applications include machine controls where compliance with safety standards such as EN ISO 13849-1 and IEC/EN 62061 is mandatory. Integration into emergency stop circuits enables reliable response to threats, with the time delay allowing for controlled shutdown without immediately stopping the machine.

Functions and Equipment in Detail
The device features contact configuration with 3 NO contacts, 1 NC contact immediately, and 1 NO contact with delayed reset. The output contacts can provide up to 3 NO contacts immediately and 3 NO contacts with delayed reset. Connection technology uses removable screw terminals, enabling flexible and secure wiring. The wire connections are designed for 2 x 1.5 mm² stranded wire with ferrule and plastic collar DIN 46 228-1/-2/-3/-4 or 2 x 2.5 mm² stranded wire with ferrule DIN 46 228-1/-2/-3. Activation can be performed via a single push-button connected to terminals S33-S34 or via automatic start function with a bridge across S13-S14.

Technology Explained Simply
The safety relay operates at a nominal voltage of DC 24 V and is designed for use in 1- or 2-channel circuits. The time delay of 30 to 300 seconds allows for controlled shutdown, which can be adjusted according to application requirements. Cross-connection detection at the single push-button, when connected to terminals S33-S34, detects faults in the control circuit and prevents incorrect states. Status indication for the delayed reset timing circuit, along with LED indicators for power, channel 1/2, and time delay, enables visual monitoring of the operating status. The thermal current rating is up to 5 A, defining the contact load capacity.

Compatibility and Accessories
The device is designed for use in safety-relevant installations and complies with the requirements of standards EN ISO 13849-1 (Category 4, Performance Level e) and IEC/EN 62061 (SIL CL 3, SIL 3). It is UL-listed C/US, TÜV- and CCC-certified, confirming compliance with international safety standards. The width is 45 mm, enabling compact mounting in standard control panels. The terminals are removable, ensuring easy maintenance and replaceability.

Mounting and Installation
Mounting is performed in standard control panels with a width of 45 mm. The removable screw terminals simplify wiring and maintenance. The terminals are clearly labeled, with S33-S34 designated for the single push-button and S13-S14 for the automatic start function. The LED indicators allow for quick diagnosis of the operating status. Integration into existing safety circuits is achieved via designated connection points, with cross-connection detection optionally activatable via terminals.

Advantages in Operation
The safety relay offers high reliability through compliance with safety standards SIL 3 and PL e. The adjustable time delay allows application-specific adaptation, enabling controlled machine shutdown. LED indicators and status displays facilitate diagnosis and maintenance. Removable terminals and the compact form factor with 45 mm width support flexible and efficient installation in industrial environments. UL, TÜV, and CCC certifications guarantee compliance with international safety requirements.

Technical data
1- / 2-channel1, 2
ApprovalsUL
Cat. / PL acc. to EN ISO 13849-14/e
ConnectionPluggable screw terminals
Output contacts max.3 NO contacts, 3 NO contacts delayed
SIL CL acc. to IEC/EN 620613
SIL acc. to IEC/EN 620613
Thermal current Ith max.5 A
Width45 mm
TypeBH 5928
Cross fault detectionYes
Suited as safety gate monitorYes
Variant
Contact equipping3 NO contacts, 1 NC contact instantaneous, 1 NO contact off delay
Nominal voltageDC 24 V
Time range30 - 300 s
Approvals and MarkingsUL-listed C/US, TÜV, CCC
VariantWith adjustable time delay


Product data sheet
Datasheet for Dold 0050639, EAN: 4030641506391

Questions & answers

What is the delivery time of Dold 0050639 BH5928.47/61 DC24V 30-300S emergency stop module ?

The article Dold 0050639 BH5928.47/61 DC24V 30-300S emergency stop module is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0050639 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0050639 BH5928.47/61 DC24V 30-300S emergency stop module always at the best possible price. We can give you a discount of 2% on Dold 0050639 BH5928.47/61 DC24V 30-300S emergency stop module if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 3 pieces of Dold 0050639 BH5928.47/61 DC24V 30-300S emergency stop module we can offer you a price of 499,80 EUR per piece. The more you buy, the cheaper the article will be.
