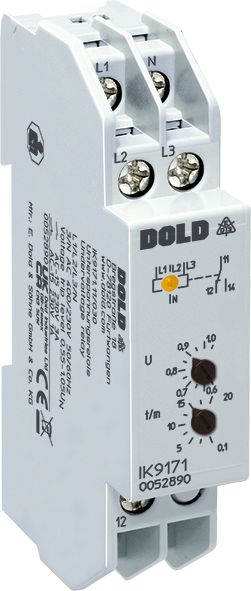

Dold 0050452 IK9171.11/030 3AC220/127V 0.5-20S undervoltage relay

Your rating:
Average rating
product review for Dold 0050452 IK9171.11/030 3AC220/127V 0.5-20S undervoltage relay
( 4.3 / 5 ) 6 ratings
Dold 0050452
This image may differ from the desired article.
116,97 EUR
( 139,19 EUR incl. VAT )
≈ £97.90  |  ≈ $128.55
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0050452 IK9171.11/030 3AC220/127V 0.5-20S undervoltage relay
Datasheet:file_download Download
Lieske Part No.:1312712
Mfg Part No: 0050452
UPC/EAN: 4030641504526
Weight:0.073 kg
Type:IK9171.11/030 3AC220/127V,55-1,05UN
Graduated prices net
From piecesPrice per pieces
5116,09 EUR
10115,22 EUR
15114,34 EUR
20113,46 EUR

Product information for Dold 0050452:

The Dold undervoltage relay IK9171.11/030 is an industrial-grade monitoring device for detecting undervoltage in three-phase power networks. It serves for network monitoring and enables automatic switching to a safety power supply or safety lighting in accordance with DIN VDE 0100-710 or DIN VDE 0108. The device operates on the rest current principle, whereby the output relay is not activated in the event of a fault, ensuring safe and reliable signal transmission. The width is 17.5 mm, and it is designed for installation in installation distributors according to DIN 43 880, with connection terminals located at the bottom (I-type construction). The nominal voltage is 3/N AC 220 / 127 V, and the device is suitable for operating voltages up to 3/N AC 500 / 290 V. It can operate without auxiliary voltage, simplifying installation and ensuring independence from additional power supplies.

Applications
This relay is used in industrial and commercial facilities where continuous monitoring of the network voltage is required. Typical applications include ensuring power supply for emergency lighting, safety functions, or critical machinery. It is suitable for both three-phase and single-phase connections; for single-phase use, terminals L1, L2, and L3 must be bridged. The variant with time delay t1 (0.5 to 20 seconds) is particularly used in unstable networks to avoid immediate shutdown during short-term voltage dips. This is especially relevant when certain loads, such as compressors or machining tools, must not be switched on immediately after a network failure.

Functions and Equipment in Detail
The device features an adjustable pickup value in the range of 0.55 to 1.05 times nominal voltage (Un), allowing flexible adaptation to various network conditions. The time delay t1 is also adjustable and ensures that the device only switches to the fault state after the specified time has elapsed if a fault (e.g., undervoltage) occurs after the operating voltage is applied. The LED indicator signals the state of the output relay – a yellow LED lights up when the contact is activated. The contact configuration includes one changeover contact (1 C/O contact), used for controlling auxiliary functions or safety circuits. Phase sequence is arbitrary, allowing flexible installation.

Technology Explained Simply
The relay measures the arithmetic mean voltage of each phase against the neutral conductor (N). For variants without neutral conductor connection, voltage is measured between L1 and L3 against L2 (IK/SK 9171) or between L1 and L2 against L3 (IL/SL 9171). The hysteresis is approximately 4 %, preventing the device from switching uncontrollably due to minor voltage fluctuations. The response time of the measuring input is short to detect rapid voltage dips. The frequency range coverage is between 45 and 65 Hz, enabling use in various networks. The overload capacity is 1.15 times nominal voltage continuously, providing some reserve during voltage fluctuations.

Compatibility and Accessories
The device is designed for use in 1- or 3-phase networks and can be operated with or without neutral conductor connection. It is available in various variants differing in contact configuration (1 or 2 changeover contacts), pickup value (fixed or adjustable), and time delay (t1, t2). The I-type construction (IK 9171) is intended for installation distributors, while the S-type construction (SK 9171) is designed for enclosures with mounting plate and cable duct. The width of 17.5 mm allows compact installation in standard distributor boxes.

Mounting and Installation
Mounting is carried out in standard installation distributor boxes according to DIN 43 880. The connection terminals are located at the bottom, enabling easy wiring. The terminals are designed for connection with cables meeting the requirements of the respective application. For single-phase use, terminals L1, L2, and L3 must be connected together. The devices are certified according to IEC/EN 60255-1 and carry the UKCA mark, confirming compliance with applicable European standards.

Advantages in Operation
The relay provides reliable and low-maintenance network monitoring. The ability to operate without auxiliary voltage reduces installation complexity. Adjustable parameters (pickup value, time delay) allow individual adaptation to the specific application. The LED indicator facilitates diagnosis of the operating state. The width of 17.5 mm and I-type construction make it particularly suitable for use in compact distributors. The rest current principle construction ensures that the output relay is not activated in the event of a fault, increasing safety.

Approvals and Markings
The device complies with the requirements of standard IEC/EN 60255-1 and carries the UKCA mark, confirming compliance with applicable European safety and functional requirements. The approvals are relevant for use in industrial and commercial facilities and ensure the reliability of the device under real operating conditions.

Technical data
1- / 3-phase1, 3
Auxiliary voltageWithout
Enclosure designDistribution board
Nominal voltage max.3/N AC 500 / 290 V
Output contacts1 C/O contact
Width17,5 mm
TypeIK 9171
Operate delayYes
Variant
Contact equipping1 changeover contact
Nominal voltage3/N AC 220 / 127 V
Response value0,55 - 1,05 Un
Time delay0,5 - 20 s
Approvals and MarkingsUKCA
VariantWith N. NC circuit operation. Settable time delay t1. Settable response value


Product data sheet
Datasheet for Dold 0050452, EAN: 4030641504526

Questions & answers

What is the delivery time of Dold 0050452 IK9171.11/030 3AC220/127V 0.5-20S undervoltage relay ?

The article Dold 0050452 IK9171.11/030 3AC220/127V 0.5-20S undervoltage relay is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0050452 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0050452 IK9171.11/030 3AC220/127V 0.5-20S undervoltage relay always at the best possible price. We can give you a discount of 2% on Dold 0050452 IK9171.11/030 3AC220/127V 0.5-20S undervoltage relay if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Dold 0050452 IK9171.11/030 3AC220/127V 0.5-20S undervoltage relay we can offer you a price of 116,09 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
