Dold 0050331 IK9271.11 AC220-240V 0.1-15A undercurrent relay Tv=0.1-20S

Your rating:
Average rating
product review for Dold 0050331 IK9271.11 AC220-240V 0.1-15A undercurrent relay Tv=0.1-20S
( 4.3 / 5 ) 21 ratings
Dold 0050331
This image may differ from the desired article.
202,98 EUR
( 241,55 EUR incl. VAT )
≈ £169.89  |  ≈ $223.08
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline

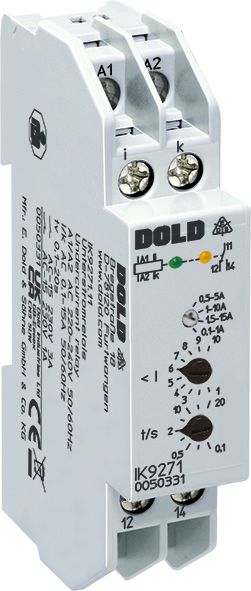

1x Dold 0050331 IK9271.11 AC220-240V 0.1-15A undercurrent relay Tv=0.1-20S
Datasheet:file_download Download
Lieske Part No.:930686
Mfg Part No: 0050331
UPC/EAN: 4030641503314
Weight:0.078 kg
Type:IK9271.11AC220-240V0,1-15A
Graduated prices net
From piecesPrice per pieces
5201,46 EUR
10199,94 EUR
15198,41 EUR
20196,89 EUR

Product information for Dold 0050331:

The Dold undercurrent relay type IK9271.11AC220-240V0,1-15A is a single-phase current relay for monitoring AC and three-phase power networks. It is designed to detect undercurrent conditions, where the current flow falls below a pre-set threshold, and responds with an output contact. The device operates on the residual current principle, in which the output relay is not activated in the event of a fault. It is designed for use in installation and industrial distributors according to DIN 43880 and features a width of 17.5 mm and a depth of 61 mm, making it suitable for standard distributor enclosures.

Applications
This relay is used in systems requiring continuous power supply, for example in pump control systems, fan control systems, or for monitoring motors and transformer installations. It ensures that when the current drops below the set threshold, a reaction occurs, such as shutting down an assembly or triggering an alarm. The galvanic isolation between the auxiliary circuit and the measuring circuit increases safety and prevents interference in the control circuit.

Functions and Equipment in Detail
The device features an adjustable pickup value in the measuring range of 0.1 to 15 A, which can be set via a rotary switch in four sub-ranges (0.1–1 A, 0.5–5 A, 1–10 A, 1.5–15 A). The switching delay is also adjustable and ranges from 0.1 to 20 seconds, allowing adaptation to different requirements for response time. The hysteresis is fixed at approximately 4 % to prevent the relay from switching undesirably due to minor fluctuations around the pickup value. The output contacts consist of a changeover contact, used for controlling auxiliary circuits.

Technology Explained Simply
The relay monitors the current flow in an electrical network. When the measured current falls below the set pickup value, the output contact opens after the set delay time. As this is a residual current relay, the contact remains closed during normal operation and only opens in the event of undercurrent. The auxiliary voltage is supplied via the network AC 220–240 V, enabling the device to operate independently of the load voltage. LED indicators signal the operating status: a green LED lights up when auxiliary voltage is applied, and a yellow LED indicates activation of the output relay.

Compatibility and Accessories
The device is designed for use in single-phase networks and complies with the standard IEC/EN 60255-1. It is equipped with an auxiliary circuit that is galvanically isolated from the measuring circuit, ensuring safe and interference-free signal transmission. The width of 17.5 mm and depth of 61 mm correspond to the I-form, intended for installation distributors. It is not compatible with other forms such as S-form (100 mm depth) or three-phase variants, as these have different dimensions and measuring circuits.

Mounting and Installation
Mounting is carried out in standard installation distributors according to DIN 43880. The connection terminals are located at the bottom of the device, facilitating integration into distributor enclosures. The auxiliary voltage is connected to terminals A1 and A2, the measuring circuit to terminals i and k. The measuring range is adjusted via the rotary switch, connected to terminals 11, 12, and 14. The contacts of the output relay are available at terminals 21, 22, and 24.

Advantages in Operation
The relay provides precise and reliable undercurrent monitoring with adjustable parameters that can be adapted to the specific requirements of the system. The galvanic isolation between the measuring and auxiliary circuits increases safety and prevents interference. The LED indicators allow for quick visual inspection of the operating status. The compact design with a width of 17.5 mm enables efficient space utilisation in distributors. Compliance with the standard IEC/EN 60255-1 ensures the quality and reliability of the device.

Technical data
1- / 3-phase1
Enclosure designDistribution board
Output contacts1 C/O contact
Width17,5 mm
TypeIK 9271
Operate delayYes
Variant
Auxiliary voltageAC 220 - 240 V
Contact equipping1 changeover contact
Measuring range0,1 - 15 A
Switching delay0,1 - 20 s
Approvals and MarkingsUKCA
VariantSingle phase current relay. De-energized on trip


Product data sheet
Datasheet for Dold 0050331, EAN: 4030641503314

Questions & answers

What is the delivery time of Dold 0050331 IK9271.11 AC220-240V 0.1-15A undercurrent relay Tv=0.1-20S ?

The article Dold 0050331 IK9271.11 AC220-240V 0.1-15A undercurrent relay Tv=0.1-20S is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0050331 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0050331 IK9271.11 AC220-240V 0.1-15A undercurrent relay Tv=0.1-20S always at the best possible price. We can give you a discount of 2% on Dold 0050331 IK9271.11 AC220-240V 0.1-15A undercurrent relay Tv=0.1-20S if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Dold 0050331 IK9271.11 AC220-240V 0.1-15A undercurrent relay Tv=0.1-20S we can offer you a price of 201,46 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
