Dold 0050170 IL9171.12/030 AC400/230V 0.55-1.05 under-voltage relay Tv=0.5-20S

Your rating:
Average rating
product review for Dold 0050170 IL9171.12/030 AC400/230V 0.55-1.05 under-voltage relay Tv=0.5-20S
( 4.5 / 5 ) 11 ratings

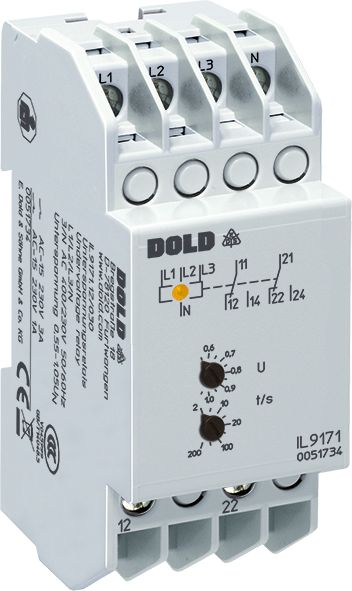

Dold 0050170
This image may differ from the desired article.
159,43 EUR
( 189,72 EUR incl. VAT )
≈ £133.44  |  ≈ $175.21
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0050170 IL9171.12/030 AC400/230V 0.55-1.05 under-voltage relay Tv=0.5-20S
Datasheet:file_download Download
Lieske Part No.:934922
Mfg Part No: 0050170
UPC/EAN: 4030641501709
Weight:0.123 kg
Type:IL9171.12/030 AC400/230V ,55-1,05UN
Graduated prices net
From piecesPrice per pieces
5153,45 EUR
10147,47 EUR
15141,49 EUR
20135,52 EUR

Product information for Dold 0050170:

The Dold undervoltage relay IL9171.12/030 is an industrial device for monitoring three-phase power networks for undervoltage. It is used for network monitoring and enables automatic switching to a safety power supply or safety lighting in accordance with DIN VDE 0100-710 and DIN VDE 0108. The device operates on the stand-by current principle, in which the output relay is not activated in the event of a fault, and is designed for mounting in installation and industrial distributors in accordance with DIN 43 880. The width is 17.5 mm, and it is operational without auxiliary voltage.

Applications
This relay is used in systems where reliable power supply is critical, for example in safety lighting systems, emergency power supplies, or for monitoring machines and systems that must be switched off in the event of voltage dips. It is suitable for single-phase and three-phase networks, with the connections L1, L2, and L3 to be bridged for single-phase connection. The rated voltage is 3/N AC 400/230 V, with a maximum rated voltage of 3/N AC 500/290 V. The overload capacity is 1.15 times the rated voltage continuously.

Functions and Equipment in Detail
The device features two changeover contacts as output contacts, which can be used to control auxiliary consumers or switching operations. The pickup value is adjustable in the range of 0.55 to 1.05 times the rated voltage (Un), allowing flexible adaptation to different network conditions. The time delay t1 for fault indication is also adjustable and ranges from 0.5 to 20 seconds. This delay ensures that short-term voltage dips do not cause unwanted switching off. An LED indicator shows the status of the output relay – the LED lights yellow when the contact is activated.

Technology Explained Simply
Measurement is performed via the arithmetic mean of the phase voltages against the neutral conductor (N). For variants without neutral conductor connection, L1 and L3 are measured against L2 (IK/SK 9171) or L1 and L2 against L3 (IL/SL 9171). Phase sequence is arbitrary, which simplifies installation. The device is compliant with IEC/EN 60255-1 and detects undervoltages in three-phase networks. The hysteresis is approximately 4%, ensuring stable switching behavior.

Compatibility and Accessories
The relay is designed for mounting in installation distributors and corresponds to I-form with a depth of 59 mm and terminal connections located at the bottom. It is compatible with three-phase networks with and without neutral conductor connection. The IL9171.12/030 variant is equipped with neutral conductor connection and adjustable time delay t1. The devices are available in various versions, with the described variant having a width of 17.5 mm. The devices are designed for frequencies between 45 and 65 Hz.

Mounting and Installation
Mounting is carried out in standard installation distributors in accordance with DIN 43 880. The terminal connections are located at the bottom, enabling easy integration into existing switchgear. The devices are designed for use in industrial and commercial environments. The rated consumption values are approximately 8 VA for the IL variant.

Advantages in Operation
The relay provides reliable network monitoring without additional auxiliary voltage. Adjustable parameters such as pickup value and time delay allow application-specific configuration. The LED indicator facilitates diagnosis of the operating status. The I-form with 17.5 mm width enables compact mounting in distributors. Compliance with IEC/EN 60255-1 and use in safety systems in accordance with DIN VDE 0100-710 and DIN VDE 0108 ensures adherence to relevant standards.

Technical data
1- / 3-phase1, 3
Auxiliary voltageWithout
Enclosure designDistribution board
Nominal voltage max.3/N AC 500 / 290 V
Output contacts2 C/O contacts
Width17,5 mm
TypeIL 9171
Operate delayYes
Variant
Contact equipping2 changeover contacts
Nominal voltage3/N AC 400 / 230 V
Response value0,55 - 1,05 Un
Time delay0,5 - 20 s
Approvals and MarkingsCCC
VariantWith N. NC circuit operation. Settable time delay t1. Settable response value


Product data sheet
Datasheet for Dold 0050170, EAN: 4030641501709
