Dold 0050074 BD5935.48/61 DC24V emergency stop module

Your rating:
Average rating
product review for Dold 0050074 BD5935.48/61 DC24V emergency stop module
( 4.4 / 5 ) 18 ratings
Dold 0050074

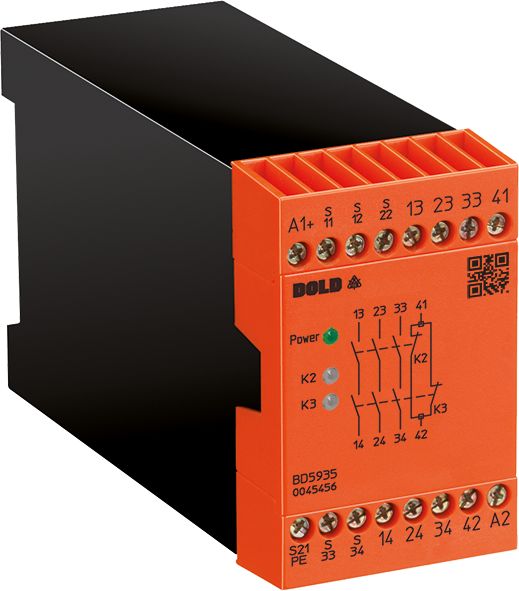

This image may differ from the desired article.
Dold 0050074Dold 0050074
403,44 EUR
( 480,09 EUR incl. VAT )
≈ £337.68  |  ≈ $443.38
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0050074 BD5935.48/61 DC24V emergency stop module
Datasheet:file_download Download
Lieske Part No.:425460
Mfg Part No: 0050074
UPC/EAN: 4030641500740
Weight:0.475 kg
Type:BD5935.48/61 DC24V
Graduated prices net
From piecesPrice per pieces
4388,31 EUR
8373,18 EUR
12358,05 EUR
16342,92 EUR

Product information for Dold 0050074:

The Dold safety relay BD5935.48/61 DC24V is an emergency stop module for safety-oriented applications in industry. It is designed for the safe interruption of circuits, particularly in conjunction with emergency stop buttons and safety doors, to protect personnel and machinery. The device is designed for use in safety-critical systems and complies with the requirements of standards EN ISO 13849-1 and IEC/EN 62061. It features a contact configuration with 3 NO contacts and 1 NC contact and operates with a nominal voltage of DC 24 V. The width is 45 mm, making it suitable for standard control panels.

Applications

The BD5935.48/61 DC24V is specifically designed for applications where safe shutdown of machines or plants is required. It is commonly used in the manufacturing industry, machine building, and plants with moving parts, where protection against accidents caused by mechanical movements or unexpected start-up is important. Suitable as a safety door monitor, it can monitor the position of safety doors and safely interrupt machine operation upon opening. The function as an emergency stop module enables integration into existing safety concepts.

Functions and Equipment in Detail

The device provides cross-circuit detection in the emergency stop control circuit, ensuring that a short circuit between channels is detected and the circuit is safely switched off. The output contacts consist of 3 NO contacts and 1 NC contact, with contacts gold-plated to ensure reliable switching even for low loads such as signals for PLCs. Connection is made via removable screw terminals, enabling quick replacement of the device. The operating status is indicated by LED displays for channel 1 and channel 2, visually signaling the status.

Technology Explained Simply

The safety relay operates on the principle of redundant safety monitoring. It can be operated in 1- or 2-channel wiring, with the 2-channel variant providing a higher safety level. Wire break detection at the single-button switch ensures that a defective switch is detected before it can impair the safety function. The thermal current Ith max. is 10 A, indicating the maximum current load for the contacts. Overvoltage and short-circuit protection functions protect the device and connected components from damage due to electrical faults.

Compatibility and Accessories

The BD5935.48/61 DC24V is designed for use with emergency stop buttons and safety door monitors. It can be integrated into existing safety architectures based on standards EN ISO 13849-1 and IEC/EN 62061. Connection options include stranded wires with 2 x 1.5 mm² or 2 x 2.5 mm², with the use of ferrules according to DIN 46228-1/-2/-3/-4 recommended. Device programming is performed via the provided adjustment options, described in the operating manual.

Mounting and Installation

Mounting is done in standard control panels with a width of 45 mm. The removable screw terminals facilitate installation and maintenance. The connection terminals are designed for use with stranded wires and ferrules, ensuring a secure and reliable connection. The operating manual contains detailed circuit diagrams and instructions for correct installation.

Advantages in Operation

The safety relay offers high reliability through redundant safety functions and cross-circuit detection. The gold-plated contacts ensure long service life and reliable switching even at low loads. The LED displays allow for quick visual inspection of the operating status. The removable terminal strips facilitate replacement and maintenance. Certifications UL-rec. C/US, TÜV, UKCA, and CCC confirm compliance with international safety standards.

Technical data
1- / 2-channel1, 2
ApprovalsUL-Recognized
Cat. / PL acc. to EN ISO 13849-14/e
ConnectionPluggable screw terminals
Output contacts max.1 NC contact, 3 NO contacts
SIL CL acc. to IEC/EN 620613
SIL acc. to IEC/EN 620613
Thermal current Ith max.10 A
Width45 mm
TypeBD 5935
Cross fault detectionYes
Suited as safety gate monitorYes
Variant
Contact equipping3 NO contacts, 1 NC contact
Nominal voltageDC 24 V
Approvals and MarkingsUL-rec. C/US, TÜV, UKCA, CCC


Product data sheet
Datasheet for Dold 0050074, EAN: 4030641500740

Questions & answers

What is the delivery time of Dold 0050074 BD5935.48/61 DC24V emergency stop module ?

The article Dold 0050074 BD5935.48/61 DC24V emergency stop module is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0050074 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0050074 BD5935.48/61 DC24V emergency stop module always at the best possible price. We can give you a discount of 2% on Dold 0050074 BD5935.48/61 DC24V emergency stop module if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Dold 0050074 BD5935.48/61 DC24V emergency stop module we can offer you a price of 388,31 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
