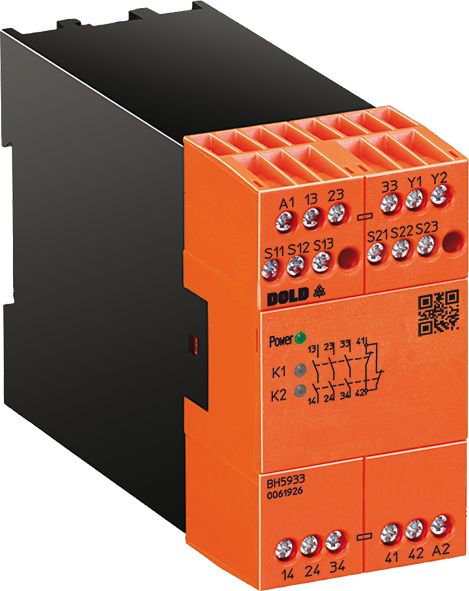

Dold 0050073 BH5933.48/61 DC24V two-hand safety relay
|
461,11 EUR |
|||||||||||
|
( 548,72 EUR incl. VAT ) ≈ £385.95 | ≈ $506.76 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 1323585 | ||||||||||
| Mfg Part No: | 0050073 | ||||||||||
| UPC/EAN: | 4030641500733 | ||||||||||
| Weight: | 0.428 kg | ||||||||||
| Type: | BH5933.48 DC24V | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Dold 0050073:
Applications
This safety relay is used in industrial automation where the safety of personnel and machinery is paramount. Typical applications include machines with hazardous movements, where operation must be performed via two-hand controls to prevent unintended actuation. It is particularly suitable for systems requiring a safe, monitored control, such as in metal processing.
Functions and Equipment in Detail
The device features a contact configuration with 3 closers and 1 opener, enabling flexible use in various circuits. The rated voltage is DC 24 V, a standard supply voltage in industry. The output contacts are rated for a thermal current of up to 5 A, defining the relay's load capacity. The connection technology uses removable screw terminals, allowing secure and easy connection of wires. The terminals are designed for stranded wires with 2 x 1.5 mm² or 2 x 2.5 mm² with ferrules and plastic collars according to DIN 46228-1/-2/-3/-4.
Technology Explained Simply
The safety relay operates on the principle of safe signal processing. It monitors inputs from two switches, each with an opener and a closer. The outputs enable control of further components, such as contactors, via a feedback circuit (Y1 – Y2), achieving contact multiplication or amplification. The integrated monitoring function ensures that the safety circuit is only enabled when both switches are correctly actuated. The device is equipped with overvoltage and short-circuit protection to prevent damage to the electronics.
Compatibility and Accessories
The relay is designed for use in systems complying with safety function standards. It is compatible with two-hand controls and can be used to monitor external contactors. Certifications include UL-listed C/US, TÜV, and UKCA, enabling use in various markets. Safety levels correspond to Type III C according to EN ISO 13851 and EN 574, ensuring high safety performance. The Performance Level (PL) is e, Category 4 according to EN ISO 13849-1, and the SIL (Safety Integrity Level) is 3 according to IEC/EN 62061. These ratings define the reliability and safety of the device in critical applications.
Mounting and Installation
Mounting is done in standard control panels. The width is 45 mm, allowing compact placement in control cabinets. The connection terminals are removable, simplifying installation and maintenance. Installation should follow the technical data and instructions in the datasheet. It is essential to ensure that wires are correctly connected and that the voltage matches the rated voltage.
Operational Advantages
The safety relay provides reliable and secure machine control. The integrated monitoring function and combination with two-hand controls increase operational safety. The compact design and easy mounting reduce installation effort. The use of removable screw terminals facilitates maintenance and replacement. The certifications and safety levels guarantee compliance with applicable industrial standards and norms.
Safety Level and Certifications
The device meets the requirements of standards EN ISO 13849-1 (Category 4, PL e), IEC/EN 62061 (SIL 3), and EN ISO 13851 (Type III C). These ratings are crucial for approval in safety-critical applications. Certifications UL-listed C/US, TÜV, and UKCA confirm compliance with respective market standards. The thermal load capacity of 5 A ensures stable operation under load conditions.
Connection and Operation
The connection terminals are designed for stranded wire connections, with maximum cross-sections of 1.5 mm² and 2.5 mm². The terminals are removable, enabling flexible and secure connections. The operating voltage is DC 24 V, a widely used voltage in industrial electronics. The relay's function is designed to monitor and control safety-critical functions, with outputs usable for controlling additional components.
Safety Level
The device meets the requirements of standards EN ISO 13849-1 (Category 4, PL e), IEC/EN 62061 (SIL 3), and EN ISO 13851 (Type III C). These ratings are crucial for approval in safety-critical applications. Certifications UL-listed C/US, TÜV, and UKCA confirm compliance with respective market standards. The thermal load capacity of 5 A ensures stable operation under load conditions.
Connection and Operation
The connection terminals are designed for stranded wire connections, with maximum cross-sections of 1.5 mm² and 2.5 mm². The terminals are removable, enabling flexible and secure connections. The operating voltage is DC 24 V, a widely used voltage in industrial electronics. The relay's function is designed to monitor and control safety-critical functions, with outputs usable for controlling additional components.
| Technical data | |
| Approvals | UL |
| Cat. / PL acc. to EN ISO 13849-1 | 4/e |
| Connection | Pluggable screw terminals |
| Output contacts max. | 1 NC contact, 3 NO contacts |
| SIL CL acc. to IEC/EN 62061 | 3 |
| SIL acc. to IEC/EN 62061 | 3 |
| Safety integrity level according to EN 574 | lll C |
| Safety integrity level according to EN ISO 13851 | lll C |
| Thermal current Ith max. | 5 A |
| Width | 45 mm |
| Type | BH 5933 |
| Variant | |
| Contact equipping | 3 NO contacts, 1 NC contact |
| Nominal voltage | DC 24 V |
| Approvals and Markings | UL-listed C/US, TÜV, UKCA |
