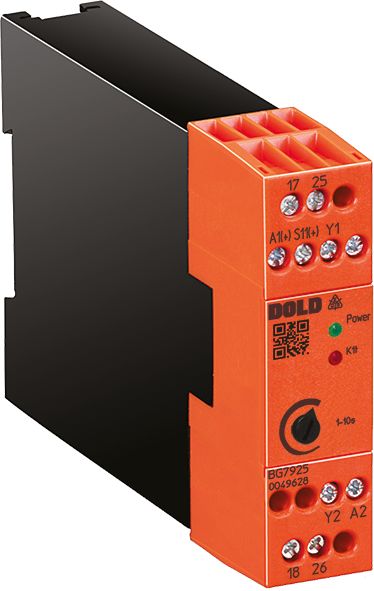

Dold 0049643 BG7925.96 AC/DC24V 0.1-1S delay module

Your rating:
Average rating
product review for Dold 0049643 BG7925.96 AC/DC24V 0.1-1S delay module
( 4.6 / 5 ) 19 ratings
Dold 0049643
This image may differ from the desired article.
Dold 0049643Dold 0049643
182,53 EUR
( 217,21 EUR incl. VAT )
≈ £152.78  |  ≈ $200.60
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0049643 BG7925.96 AC/DC24V 0.1-1S delay module
Datasheet:file_download Download
Lieske Part No.:1313002
Mfg Part No: 0049643
UPC/EAN: 4030641496432
Weight:0.237 kg
Type:BG7925.96 AC/DC24V 0,1-1S
Graduated prices net
From piecesPrice per pieces
5179,79 EUR
10177,05 EUR
15174,32 EUR
20171,58 EUR

Product information for Dold 0049643:

The Dold delay module BG7925.96 AC/DC24V 0.1-1S is an industrial safety relay with adjustable time delay, used in control systems for delayed switching off. It is designed for operating voltages of AC/DC 24 V and has a width of 22.5 mm, making it suitable for standard control panels. The device is equipped with an auxiliary voltage and features an adjustable time circuit that can be set within a range of 0.1 to 1 second. The maximum time delay is 10 seconds, with precise adjustment achieved via a digital time step, ensuring high long-term stability.

Applications
This module is designed for use in safety applications, particularly in systems complying with Stop Category 1 according to DIN EN 60 204-1. It can be used in conjunction with suitable switching devices or controls to implement safety functions such as emergency shutdowns or protective measures for machinery. The application is in industrial environments where controlled, time-delayed switching off of electrical loads is required, for example, when shutting down drives or heating systems.

Functions and Equipment in Detail
The device features contact configuration with 3 normally open (NO) contacts and 1 normally closed (NC) contact, with forced-guided contacts to ensure secure switching function. Connection is made via removable screw terminals, ensuring secure and quick installation. The terminals are designed for conductor cross-sections up to 2.5 mm² wire with ferrules according to DIN 46 228-1/-2/-3/-4. An operating position indicator allows visual verification of the operational status. The maximum thermal current rating is 5 A.

Technology Explained Simply
The digital time step ensures that the set delay time remains stable over extended operating periods, which is important for industrial applications requiring high reliability. The time delay is activated by the auxiliary voltage, allowing the device to remain functional even during brief interruptions of the main voltage. The time delay is adjustable between 0.1 and 1 second, with a maximum delay of up to 10 seconds. The function is designed for use in safety circuits requiring a defined response time.

Compatibility and Accessories
The module is designed for use in safety systems certified up to Category 2 and PL d according to EN ISO 13849-1, as well as up to SIL 2 according to IEC/EN 62061. It is marked with a TÜV symbol and carries UL-Recognized approval, enabling use in various regions and industries. Compatibility with other devices in the BG 7925 series is ensured, especially in combination with controls requiring safe switching off.

Mounting and Installation
Mounting is performed in standard control panels with a width of 22.5 mm. The removable screw terminals facilitate installation and maintenance. Wiring must follow the specifications in the datasheet, taking into account maximum conductor cross-sections and the types of ferrules used. The device indicators allow for quick visual control of the operational status.

Advantages in Operation
The high long-term stability of the digital time step ensures reliable function throughout the entire lifecycle. The forced-guided contacts guarantee a secure switching function, which is critical for safety applications. The combination of adjustable time delay and auxiliary voltage allows flexible adaptation to different requirements in industrial automation. The approvals according to EN ISO 13849-1 and IEC/EN 62061 enable use in safety-critical systems.

Technical data
1- / 2-channel1
ApprovalsUL-Recognized
Cat. / PL acc. to EN ISO 13849-12/d
ConnectionPluggable screw terminals
Output contacts max.1 NC contact, 3 NO contacts
SIL CL acc. to IEC/EN 620612
SIL acc. to IEC/EN 620612
Thermal current Ith max.5 A
Time delay max.10 s
Width22,5 mm
TypeBG 7925
Variant
Contact equipping3 NO contacts, 1 NC contact
Nominal voltageAC/DC 24 V
Time range0,1 - 1 s
Approvals and MarkingsTÜV
VariantWith auxiliary voltage. 1 timing circuit adjustable


Product data sheet
Datasheet for Dold 0049643, EAN: 4030641496432
