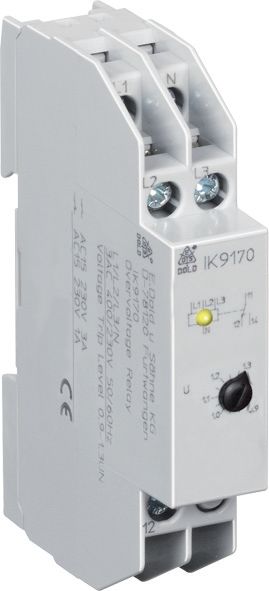

Dold 0049572 IK9170.11/041 3AC400V 0.9-1.3UN overvoltage relay Tv=0.5-20S
|
121,00 EUR |
|||||||||||
|
( 143,99 EUR incl. VAT ) ≈ £101.28 | ≈ $132.98 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 1583369 | ||||||||||
| Mfg Part No: | 0049572 | ||||||||||
| UPC/EAN: | 4030641495725 | ||||||||||
| Weight: | 0.073 kg | ||||||||||
| Type: | IK9170.11/041 3AC400V 0,9-1,3UN | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Dold 0049572:
Applications
This relay is designed for monitoring three-phase networks in industrial and commercial facilities where stable voltage supply is required. It serves as a protective function for electrical systems and equipment against damage caused by short-term or sustained overvoltages. Applications include distributors, enclosures, or other electrical switching installations where continuous voltage monitoring is necessary. The devices are intended for indoor use, as the protection rating is IP 40 for the housing and IP 40 for the terminals, providing protection against contact and solid foreign objects, but not against splashing water or dust.
Functions and Equipment in Detail
The device features a changeover contact as the output contact, consisting of a normally closed contact (11-14) and a normally open contact (11-12). The contact material is silver-nickel with a gold plating layer (AgNi 0.15 + 0.3 μm Au), ensuring high switching durability and corrosion resistance. The rated operating voltage is AC 250 V, and the device is designed for a thermal current of 4 A. The electrical service life at 1 A and AC 230 V is at least 300,000 switching operations, while the mechanical service life is at least 30 million switching operations. The LED indicator signals the state of the output relay: the yellow LED lights up when the contact is activated. Phase sequence is irrelevant, as the device operates independently of the phase order.
Technology Explained Simply
Monitoring is performed by measuring the arithmetic mean of the voltage of each phase relative to the neutral conductor (N). In variants without a neutral conductor connection, the voltage between L1 and L3 is measured relative to L2. The pickup value is adjustable, allowing the operator to set the overvoltage detection threshold according to the specific requirements of the installation. The hysteresis is approximately 4 % of the set pickup value, preventing the relay from switching uncontrollably due to minor voltage fluctuations. The time delay t2 ensures that the relay does not immediately return to the normal state after an overvoltage, but only after an adjustable delay, enabling a stable and reliable return to operation.
Compatibility and Accessories
The device is designed for mounting on a DIN rail (IEC/EN 60715) and can therefore be integrated into standard distributor enclosures. The connection terminals are rated for conductor cross-sections of 2 x 2.5 mm² (solid) or 2 x 1.5 mm² (stranded wire with sleeve DIN 46228-1/-2/-3/-4). The tightening torque is 0.8 Nm. The devices are available in two housing forms: IK 9170 for installation distributors and SK 9170 for enclosures, with the SK variant having a greater depth (98 mm) and terminals located at the top. Compatibility with other devices in the series is ensured, as technical features such as pickup value, time delay, and contact configuration are standardized.
Mounting and Installation
Mounting is done by securing the device to a DIN rail inside the distributor. The terminals are located at the bottom, enabling easy wiring. Cable connections are made via flat terminals with self-lifting connection washers, ensuring a secure and reliable connection. The devices are designed for continuous operation and can be operated in a temperature range of -20 °C to +60 °C. Storage is possible in the range of -25 °C to +60 °C. The relative humidity may reach up to 93 % at 40 °C. The operating altitude is limited to below 2000 m above sea level.
Advantages in Operation
The relay provides a reliable and low-maintenance monitoring solution without requiring additional auxiliary voltage. The adjustable parameters such as pickup value and time delay allow flexible adaptation to different requirements. The LED indicator facilitates diagnosis of the operating state. The high switching durability and robust construction ensure a long service life and low maintenance costs. Compliance with the standard IEC/EN 60255-1 ensures electrical safety and reliability of the device. EMC requirements are met, allowing the device to be safely operated even in electromagnetically noisy environments.
| Technical data | |
| 1- / 3-phase | 1, 3 |
| Auxiliary voltage | Without |
| Enclosure design | Distribution board |
| Nominal voltage max. | 3/N AC 400 / 230 V |
| Output contacts | 1 C/O contact |
| Width | 17,5 mm |
| Type | IK 9170 |
| Operate delay | |
| Variant | |
| Contact equipping | 1 changeover contact |
| Nominal voltage | 3AC 400 V |
| Response value | 0,9 - 1,3 Un |
| Time delay | 0,5 - 20 s |
| Variant | Without N. NC circuit operation. Settable time delay t2. Settable response value |
Questions & answers
What is the delivery time of Dold 0049572 IK9170.11/041 3AC400V 0.9-1.3UN overvoltage relay Tv=0.5-20S ?
The article Dold 0049572 IK9170.11/041 3AC400V 0.9-1.3UN overvoltage relay Tv=0.5-20S is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0049572 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Dold 0049572 IK9170.11/041 3AC400V 0.9-1.3UN overvoltage relay Tv=0.5-20S always at the best possible price. We can give you a discount of 2% on Dold 0049572 IK9170.11/041 3AC400V 0.9-1.3UN overvoltage relay Tv=0.5-20S if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Dold 0049572 IK9170.11/041 3AC400V 0.9-1.3UN overvoltage relay Tv=0.5-20S we can offer you a price of 120,09 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
