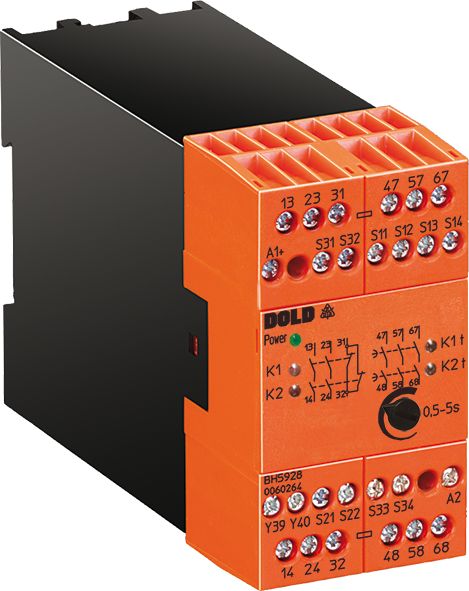

Dold 0049446 BH5928.92/61 DC24V 1-10S emergency stop module

Your rating:
Average rating
product review for Dold 0049446 BH5928.92/61 DC24V 1-10S emergency stop module
( 4.4 / 5 ) 10 ratings
Dold 0049446
This image may differ from the desired article.
507,41 EUR
( 603,82 EUR incl. VAT )
≈ £424.70  |  ≈ $557.64
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0049446 BH5928.92/61 DC24V 1-10S emergency stop module
Datasheet:file_download Download
Lieske Part No.:660043
Mfg Part No: 0049446
UPC/EAN: 4030641494469
Weight:0.428 kg
Type:BH5928.92 DC24V 1-10S
Graduated prices net
From piecesPrice per pieces
3488,38 EUR
6469,35 EUR
9450,33 EUR
12431,30 EUR

Product information for Dold 0049446:

The Dold BH5928.92 DC24V 1-10S is an emergency stop module with integrated time delay, designed for use in safety-critical applications in industrial automation. The device serves the protective function for personnel and machinery, particularly in emergency stop circuits where a Stop Category 1 must be implemented. It is suitable for monitoring sliding safety grilles and can be used as a safety door monitor. The module width is 45 mm, enabling compact mounting in standard control panels. The module features an adjustable time delay in the range of 1 to 10 seconds, allowing flexible integration into various safety concepts.

Applications
This emergency stop module is designed for use in industrial environments where safe machine shutdown is required. It is commonly used in plants with moving parts, such as presses, machine tools, or conveyor systems, to ensure immediate or delayed shutdown in hazardous situations. The function as a safety door monitor enables monitoring of access doors or sliding grilles, ensuring the machine can only operate when the safety device is closed. The 1- or 2-channel wiring provides flexibility for integration into existing safety architectures.

Functions and Equipment in Detail
The device features contact configuration with 2 NO contacts, 1 NC contact immediately, and 3 NO contacts with delayed reset. The delayed reset contacts enable controlled shutdown, which may be necessary to avoid damage caused by sudden stoppage. The connection technology uses removable screw terminals, ensuring secure and easy wiring. The terminal connections support up to 2 x 2.5 mm² stranded wire with ferrules according to DIN 46 228-1/-2/-3/-4. A status indicator for the delayed reset circuit, as well as LED indicators for power, channel 1/2, and time delay, support diagnostics and maintenance. Cross-connection detection at the single-button (terminals S33–S34) detects faults in the control circuit and prevents incorrect operating states.

Technology Explained Simply
The time delay of 1 to 10 seconds is implemented via an internal timer activated when the emergency stop button is pressed. The delayed reset time ensures the machine does not shut down immediately but continues to run for a defined period, which may be required in certain processes. The immediate contacts switch directly upon activation, while the delayed contacts close only after the set time has elapsed. The thermal current rating is up to 5 A, defining the contact load capacity. The wire break detection checks the integrity of the connection to the emergency stop button and signals a break or short circuit.

Compatibility and Accessories
The module is designed for operation with a nominal voltage of DC 24 V and complies with safety requirements according to EN ISO 13849-1 (Category 4, Performance Level e) and IEC/EN 62061 (SIL CL 3). It is UL-listed C/US, TÜV- and CCC-certified, confirming compliance with international safety standards. The choice between 1- and 2-channel wiring allows adaptation to different safety architectures. Activation occurs either via the single-button at S33–S34 or via an automatic start function with a bridge at S13–S14. The connection terminals are removable, facilitating installation and maintenance.

Mounting and Installation
Mounting is performed in standard control panels with a module width of 45 mm. The removable screw terminals enable quick and secure wiring. The terminal assignment is detailed in the datasheet, with terminals S33–S34 designated for button connection function and S13–S14 for the automatic start function. The LED indicators support installation by providing visual feedback on the operating status. The cross-connection detection can be activated or deactivated via terminals, depending on the safety concept requirements.

Advantages in Operation
The module offers high safety integrity through certification to SIL 3 and PL e, making it suitable for critical applications. The integrated time delay enables controlled shutdown, which is required in many industrial processes. The status indicators and wire break detection increase reliability and simplify maintenance. The removable terminals and compact design support efficient installation and maintenance. Compatibility with 1- and 2-channel systems provides flexibility for integration into existing safety structures.

Technical data
1- / 2-channel1, 2
ApprovalsUL
Cat. / PL acc. to EN ISO 13849-14/e
ConnectionPluggable screw terminals
Output contacts max.3 NO contacts, 3 NO contacts delayed
SIL CL acc. to IEC/EN 620613
SIL acc. to IEC/EN 620613
Thermal current Ith max.5 A
Width45 mm
TypeBH 5928
Cross fault detectionYes
Suited as safety gate monitorYes
Variant
Contact equipping2 NO contacts, 1 NC contact instantaneous, 3 NO contacts off delay
Nominal voltageDC 24 V
Time range1 - 10 s
Approvals and MarkingsUL-listed C/US, TÜV, CCC
VariantWith adjustable time delay


Product data sheet
Datasheet for Dold 0049446, EAN: 4030641494469
