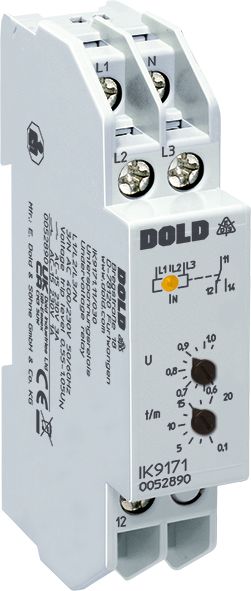

Dold 0049434 IK9171.11/201 3AC400V 0.85UN4% undervoltage relay

Your rating:
Average rating
product review for Dold 0049434 IK9171.11/201 3AC400V 0.85UN4% undervoltage relay
( 4.4 / 5 ) 5 ratings
Dold 0049434
This image may differ from the desired article.
106,00 EUR
( 126,14 EUR incl. VAT )
≈ £88.72  |  ≈ $116.49
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0049434 IK9171.11/201 3AC400V 0.85UN4% undervoltage relay
Datasheet:file_download Download
Lieske Part No.:1583367
Mfg Part No: 0049434
UPC/EAN: 4030641494346
Weight:0.073 kg
Type:IK9171.11/201 3AC400V 0,85UN4%
Graduated prices net
From piecesPrice per pieces
5105,21 EUR
10104,41 EUR
15103,62 EUR
20102,82 EUR

Product information for Dold 0049434:

The Dold undervoltage relay IK9171.11/201 3AC400V 0,85UN4% is an industrial-grade monitoring device for detecting undervoltages in three-phase power networks. It is used for network monitoring and enables automatic switching to a safety power supply or safety lighting in accordance with DIN VDE 0100-710 or DIN VDE 0108. The device operates on the rest current principle, in which the output relay is not activated in the event of a fault, and is designed for use in installation distributor configurations. It has a width of 17.5 mm and is rated for a nominal voltage of 3AC 400 V.

Applications
This relay is designed for monitoring three-phase networks and can be used in both three-phase and single-phase installations. In single-phase operation, terminals L1, L2, and L3 must be bridged. It is particularly used in systems where safe disconnection or switching to an emergency power supply is required in the event of undervoltage or phase loss, for example in industrial plants, building technology, or safety lighting. The application is in networks with a frequency of 45 to 65 Hz.

Functions and Features in Detail
The device detects undervoltages below a fixed pickup value of 0.85 times the nominal voltage (Un), with an integrated hysteresis of approximately 4 %. The output contacts consist of a changeover contact (1 C/O contact), which closes contacts 11-14 when the pickup value is reached. A yellow LED indicates the status of the output relay – illuminated when the contact is activated. Phase sequence is irrelevant, as the device operates independently of phase order. It is operational without auxiliary voltage, simplifying installation and ensuring independence from additional power supplies.

Technical Explanation
Measurement is performed via the arithmetic mean of individual phases against the neutral conductor (N). In variants without neutral conductor connection, L1 and L3 are measured against L2 (IK/SK 9171) or L1 and L2 against L3 (IL/SL 9171). The maximum nominal voltage is 3/N AC 500 / 290 V. The device is designed for continuous overload capacity of 1.15 times the nominal voltage. The fault condition is indicated only after the time delay t1 (which is not present in this variant).

Compatibility and Accessories
The device is manufactured in I-type construction, featuring a depth of 59 mm and bottom-mounted connection terminals for installation and industrial distributors in accordance with DIN 43 880. It is compatible with other devices from the IK and SK series, which are also available in 17.5 mm width. The variant without time delay is suitable for applications requiring immediate response to undervoltage.

Mounting and Installation
Mounting is performed in installation distributor enclosures in accordance with DIN 43 880. The connection terminals are located at the bottom, enabling easy integration into existing control systems. The width of 17.5 mm allows for compact placement in enclosures. The devices are rated for an operating voltage of 3AC 400 V and can be operated in networks with a frequency of 45 to 65 Hz.

Operational Advantages
The relay provides reliable network monitoring without requiring additional auxiliary voltage. The LED indicator allows for quick visual monitoring of the operating status. The width of 17.5 mm and I-type construction ensure compact and standardized mounting. The rest current principle reduces energy consumption and increases safety, as the output relay is not activated in the event of a fault. The 4 % hysteresis prevents unwanted switching operations during voltage fluctuations near the pickup value.

Technical data
1- / 3-phase1, 3
Auxiliary voltageWithout
Enclosure designDistribution board
Nominal voltage max.3/N AC 500 / 290 V
Output contacts1 C/O contact
Width17,5 mm
TypeIK 9171
Operate delayYes
Variant
Contact equipping1 changeover contact
Nominal voltage3AC 400 V
Response value0,85 Un 4%
Time delaywithout
Approvals and MarkingsUKCA
VariantWithout N. NC circuit operation. Without time delay. Fixed response value


Product data sheet
Datasheet for Dold 0049434, EAN: 4030641494346
