Dold 0049405 IL9171.12/201 3AC400V 0.85UN undervoltage relay

Your rating:
Average rating
product review for Dold 0049405 IL9171.12/201 3AC400V 0.85UN undervoltage relay
( 4.6 / 5 ) 5 ratings

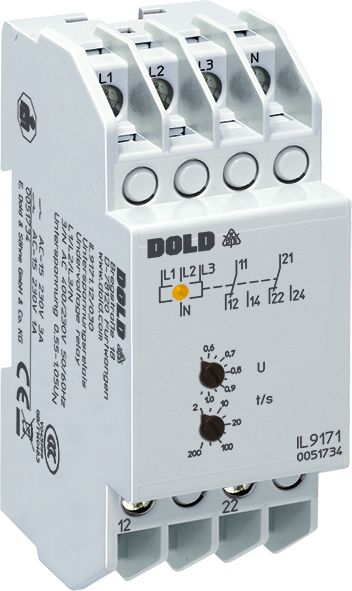

Dold 0049405
This image may differ from the desired article.
148,07 EUR
( 176,20 EUR incl. VAT )
≈ £123.93  |  ≈ $162.73
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0049405 IL9171.12/201 3AC400V 0.85UN undervoltage relay
Datasheet:file_download Download
Lieske Part No.:1583366
Mfg Part No: 0049405
UPC/EAN: 4030641494056
Weight:0.123 kg
Type:IL9171.12/201 3AC400V 0,85UN
Graduated prices net
From piecesPrice per pieces
5145,85 EUR
10143,63 EUR
15141,41 EUR
20139,19 EUR

Product information for Dold 0049405:

The Dold undervoltage relay IL9171.12/201 3AC400V 0,85UN is designed for monitoring three-phase power networks for undervoltage conditions. It is intended for use in industrial and installation distributors and enables automatic switching to a safety power supply or safety lighting in accordance with DIN VDE 0100-710 and DIN VDE 0108. The device operates on the rest current principle, whereby the output relay is not activated in the event of a fault, ensuring a safe and reliable response during voltage dips.

Applications
This relay is designed for monitoring three-phase networks but can also be connected in single-phase mode. It is particularly suitable for applications where a secure power supply is required in the event of a fault, such as in production plants, lighting systems, or for controlling safety functions. Monitoring is performed without auxiliary voltage, simplifying installation and ensuring independence from additional power sources.

Functions and Equipment in Detail
The device features two changeover contacts as output contacts, which can be used to control auxiliary functions or safety circuits. The pickup value is fixed at 0.85 of the nominal voltage (Un), enabling precise detection of undervoltage conditions. The LED indicator signals the contact position and allows for visual inspection of the operating status. Phase sequence is arbitrary, increasing flexibility during installation.

Technology Explained Simply
Voltage detection is achieved by measuring the arithmetic mean of the individual phases. For variants without neutral conductor connection, L1 and L3 are measured against L2 (IK/SK 9171) or L1 and L2 against L3 (IL/SL 9171). In single-phase operation, terminals L1, L2, and L3 must be connected. The device operates without time delay, ensuring an immediate response to voltage dips. The nominal voltage is 3AC 400 V, with a maximum nominal voltage up to 3/N AC 500 / 290 V.

Compatibility and Accessories
The relay is designed for use in installation distributors according to DIN 43 880 and has a width of 17.5 mm. It is available in I form, which features a depth of 59 mm and terminals located at the bottom. The IL 9171.12/201 variant is specifically designed for three-phase networks without neutral conductor connection. Compatibility with other devices in the IL series is ensured, particularly when selecting variants with different pickup values or time delays.

Mounting and Installation
Mounting is performed in standard installation distributors. The bottom-mounted terminals simplify wiring. The devices are designed for frequencies between 45 and 65 Hz and can be operated continuously with an overload capacity of 1.15 Un. The nominal power consumption is approximately 8 VA for the IL variant.

Operational Advantages
The relay provides reliable and maintenance-free monitoring of three-phase networks. Fault tolerance is ensured by a hysteresis of approximately 4%, allowing for safe reset after voltage restoration. The LED indicator and rest current principle enhance safety and transparency during operation. Compliance with the standard IEC/EN 60255-1 ensures the quality and reliability of the device.

Approvals and Markings
The device carries the CCC approval, confirming compliance with applicable safety and quality requirements. Compliance with standards DIN VDE 0100-710 and DIN VDE 0108 makes it suitable for use in safety installations.

Enclosure Design
The enclosure design is intended for installation distributors, with the I form featuring a depth of 59 mm and bottom-mounted terminals being standard. The width of 17.5 mm allows for compact mounting in standard distributor enclosures.

Application
The relay is used in industrial plants, building technology, and safety installations where reliable monitoring of network voltage is required. It enables automatic switching to emergency power supplies or safety lighting during voltage dips.

Functions
The functions include detection of undervoltage in three-phase networks, the possibility of single-phase connection, operation without auxiliary voltage, the rest current principle, LED indicator for contact position, arbitrary phase sequence, provision of two changeover contacts, fixed pickup value of 0.85 Un, and fault tolerance via hysteresis of approximately 4%.

Functions and Equipment
The functions include detection of undervoltage in three-phase networks, the possibility of single-phase connection, operation without auxiliary voltage, the rest current principle, LED indicator for contact position, arbitrary phase sequence, provision of two changeover contacts, fixed pickup value of 0.85 Un, and fault tolerance via hysteresis of approximately 4%.

Application
The relay is used in industrial plants, building technology, and safety installations where reliable monitoring of network voltage is required. It enables automatic switching to emergency power supplies or safety lighting during voltage dips.

Technical data
1- / 3-phase1, 3
Auxiliary voltageWithout
Enclosure designDistribution board
Nominal voltage max.3/N AC 500 / 290 V
Output contacts2 C/O contacts
Width17,5 mm
TypeIL 9171
Operate delayYes
Variant
Contact equipping2 changeover contacts
Nominal voltage3AC 400 V
Response value0,85 Un
Time delaywithout
Approvals and MarkingsCCC
VariantWithout N. NC circuit operation. Without time delay. Fixed response value


Product data sheet
Datasheet for Dold 0049405, EAN: 4030641494056
