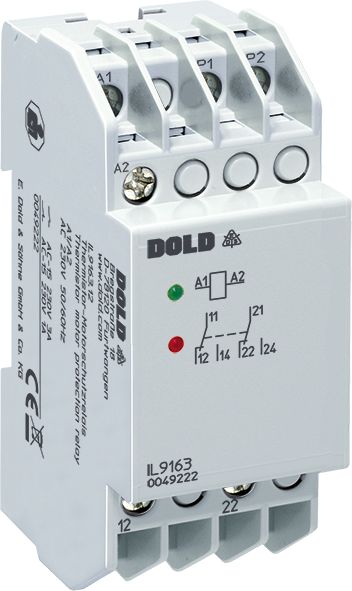

Dold 0049222 IL9163.12 AC 50/60 Hz 230 V thermistor motor protection relay

Your rating:
Average rating
product review for Dold 0049222 IL9163.12 AC 50/60 Hz 230 V thermistor motor protection relay
( 4.6 / 5 ) 28 ratings
Dold 0049222
This image may differ from the desired article.
101,91 EUR
( 121,27 EUR incl. VAT )
≈ £85.30  |  ≈ $112.00
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0049222 IL9163.12 AC 50/60 Hz 230 V thermistor motor protection relay
Datasheet:file_download Download
Lieske Part No.:886390
Mfg Part No: 0049222
UPC/EAN: 4030641492229
Weight:0.162 kg
Type:IL9163.12AC50/60HZ230V
Graduated prices net
From piecesPrice per pieces
5100,38 EUR
1098,85 EUR
1597,32 EUR
2095,80 EUR

Product information for Dold 0049222:

The Dold thermistor motor protection relay IL9163.12AC50/60HZ230V is an industrial protection switch designed to prevent thermal motor overloads. It is used for monitoring electric motors and protects against damage caused by high switching frequency, heavy start-up, single-phasing, impaired cooling, or high ambient temperature. The device is designed for use in installation and industrial distributors according to DIN 43880 and has a width of 35 mm. It operates on the principle of thermistor motor protection technology, where PTC sensors (according to DIN 44081/44082) are connected in series to monitor the temperature within the motor. The number of sensors can range from 1 to 6. The pickup value is between 3.2 and 3.8 kΩ, and the reset value is between 1.5 and 1.8 kΩ. A fault condition is detected when the pickup value is reached or if there is a break in the sensor circuit (> 3.1 kΩ). The device is designed for an auxiliary voltage of AC 230 V and complies with the standard IEC/EN 60255-1.

Applications
This motor protection relay is intended for use in industrial plants, such as pumps, fans, conveyor systems, and other electrically driven machinery. It protects motors from thermal overload caused by irregular operating conditions or mechanical faults. The application is in installation distributors with DIN rail mounting, where the connection terminals are located at the bottom. The IL 9163 model has a depth of 58 mm and is suitable for standard distributors.

Functions and Equipment in Detail
The device features 2 changeover contacts as output contacts, which can be used to control auxiliary circuits or warning signals. The contact rating is designed for an electrical life of at least 500,000 switching operations at 1 A and AC 230 V. The switching capacity is 3 A / AC 230 V for make contacts and 1 A / AC 230 V for break contacts, according to IEC/EN 60947-5-1. The LED indicator shows the presence of auxiliary voltage (green LED) and fault condition (red LED) in case of overheating or sensor break. The device operates on the no-current principle, meaning the output relay is not activated in the event of a fault. The reset function is automatic, without fault memory. A test/reset button is not provided. Remote reset is possible via a break contact (A1/A2) or a make contact (X1/X2).

Technology Explained Simply
The relay’s measuring circuit loads the sensor circuit with less than 5 mW at a resistance of 1.5 kΩ. The measuring voltage is up to 2 V, and the measuring current is up to 1 mA. In case of a sensor break, a voltage of approximately 9 V DC is measured. The auxiliary voltage is supplied via terminals A1/A2, with the voltage range coverage being 0.9 to 1.1 times the nominal voltage for AC. The turn-on delay is less than 40 ms, and the turn-off delay is less than 100 ms. The maximum bridging time in case of auxiliary voltage failure is approximately 70 ms. The housing is made of thermoplastic with V0 flammability rating according to UL 94.

Compatibility and Accessories
The device is designed for use with PTC sensors according to DIN 44081/44082. It can operate with up to six sensors connected in series. The connection terminals are rated for 2 x 2.5 mm² solid or 2 x 1.5 mm² stranded conductors with wire end ferrules, in accordance with DIN 46228-1/-2/-3/-4. Mounting is on a DIN rail according to IEC/EN 60715. Terminal markings follow EN 50005. The device does not include fault memory, so the fault condition is automatically reset once normal operation is restored.

Mounting and Installation
Mounting is on a DIN rail within the installation distributor. The connection terminals are located at the bottom of the device. Fixing is done using flat terminals with self-lifting clamping pieces according to IEC/EN 60999-1. The specified tightening torque is 0.8 Nm. The connecting wires must be installed according to the specified cross-section and connection technique. The electrical connection of the sensors is in series, where the total resistance of the sensors during operation affects the relay’s pickup values.

Advantages in Operation
The relay provides reliable monitoring of motor temperature and protects against thermal damage. The automatic reset without fault memory allows for quick reactivation after fault elimination. The LED indicator ensures clear visual indication of the operating status. The remote reset function via external contacts enables centralized fault acknowledgment in complex systems. Galvanic isolation between the auxiliary circuit and measuring circuit (available in AC/DC 24 V versions) is not provided; however, the device is designed for AC 230 V, where such isolation is not required. Compliance with the standard IEC/EN 60255-1 ensures reliability and safety in industrial applications.

Technical data
ClassificationThermistor-Motorschutz
Enclosure designDistribution board
Measuring range max.> 3.8 kΩ
Output contacts2 C/O contacts
Width35 mm
TypeIL 9163
Variant
Auxiliary voltageAC 230 V
Contact equipping2 changeover contacts
VariantAutomatic reset


Product data sheet
Datasheet for Dold 0049222, EAN: 4030641492229
