Dold 0049188 IL5990 AC 50/60 Hz 230 V 1S surge relay

Your rating:
Average rating
product review for Dold 0049188 IL5990 AC 50/60 Hz 230 V 1S surge relay
( 4.5 / 5 ) 6 ratings
Dold 0049188
This image may differ from the desired article.

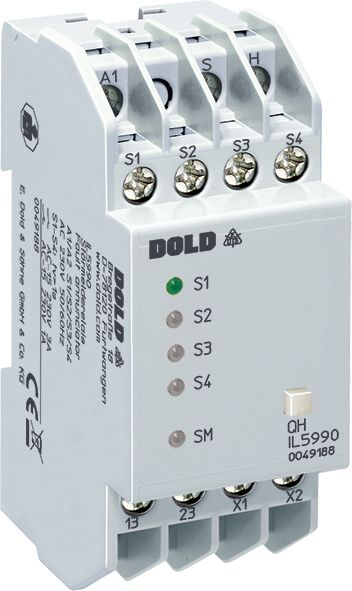

Dold 0049188Dold 0049188
195,90 EUR
( 233,12 EUR incl. VAT )
≈ £163.97  |  ≈ $215.29
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0049188 IL5990 AC 50/60 Hz 230 V 1S surge relay
Datasheet:file_download Download
Lieske Part No.:1583555
Mfg Part No: 0049188
UPC/EAN: 4030641491888
Weight:0.152 kg
Type:IL5990 AC50/60HZ 230V 1S
Graduated prices net
From piecesPrice per pieces
5188,55 EUR
10181,21 EUR
15173,86 EUR
20166,52 EUR

Product information for Dold 0049188:

The Dold fault monitor relay IL5990 AC50/60HZ 230V 1S is an industrial fault monitoring relay for monitoring plants and buildings. It is used for detection and signaling of faults via multiple inputs and enables central alerting in case of errors. The device is designed according to DIN 19235 and is suitable for use in installation distributor boxes, where it is mounted on a DIN rail. The width is 35 mm, allowing compact integration into standard distributors.

Applications
It monitors up to four fault monitoring inputs, which can be set to either energized or de-energized operation principle according to requirements. The setting is done via jumpers X1-X2, allowing flexible adaptation to different monitoring systems. The response delay is standard 1 second, with a possible delay up to 10 seconds to filter short-term disturbances.

Functions and equipment in detail
The device has four fault monitoring inputs, each with an LED for optical signaling. When an input is triggered, the corresponding LED is activated. The output contacts consist of two normally open contacts: one for central alarm and one for an external horn. The contact configuration is therefore 2 x 1 NO. An integrated reset button QH allows manual acknowledgment of the fault, resetting the LED and horn. Optical signaling is provided by LEDs directly mounted on the device.

Technology explained clearly
The IL5990 operates with a rated voltage of AC 230 V at a frequency of 50/60 Hz. The rated consumption is 8 VA. The inputs are designed for a voltage range of 0.8 to 1.1 times the rated voltage. Fault detection is achieved by interruption or continuity of power supply, depending on whether energized or de-energized operation principle is active. The 1-second response delay prevents false alarms caused by short-term voltage fluctuations. The contacts are rated for a thermal current of 5 A and can switch up to 1 A at 230 V according to AC 15. The electrical life is at least 150,000 switching operations at 1 A and 230 V.

Compatibility and accessories
The device is expandable from 4 to up to 160 fault monitoring inputs, using expansion units such as the IL5991. The bus lines H and S carry low voltage and must not be subjected to external voltages. As accessories, the alarm device IK/SK 8832 is mentioned, which can be controlled via the reset button QH. Connections A1, S1–S4 and QH must be connected to the same phase, as well as the normally open contacts 13–14 and 23–24.

Mounting and installation
Mounting is done on a DIN rail (IEC/EN 60715). The I form factor has a depth of 61 mm and is intended for installation and industrial distributors according to DIN 43880. The terminal connections are located at the bottom. The conductor connections are designed for 2 x 2.5 mm² solid or 2 x 1.5 mm² stranded wire with ferrules according to DIN 46228. The tightening torque is 0.8 Nm. The terminals are equipped with self-lifting connection washers, enabling quick and secure connections.

Advantages in operation
The IL5990 offers reliable and flexible fault monitoring with clear optical signals. The expandability up to 160 inputs makes it suitable for large installations. The adjustable response delay and operating mode (energized or de-energized principle) increase adaptability. The integrated acknowledgment allows quick fault reset and documentation. The enclosure protection rating is IP 40 and the terminals are IP 40, ensuring safe operation in industrial environments. The operating temperature range is -20 °C to +60 °C, and the storage temperature range is -25 °C to +60 °C. The operating altitude is limited to below 2000 m.

Approvals and environmental conditions
The device complies with standards IEC/EN 60947-5-1 for switching devices, IEC/EN 60529 for protection ratings, and IEC/EN 60068-1 for climatic resistance. EMC requirements according to IEC/EN 61000-4-2 to -4-5 are fulfilled. Radio frequency interference suppression meets Class B limits according to EN 55011. The enclosures are made of thermoplastic with V0 behavior according to UL Subject 94, ensuring high flame resistance. The vibration resistance is 0.35 mm amplitude at frequencies from 10 to 55 Hz.

Connection and operation
The connections A1–A2 and fault monitoring inputs S1–S4 are designed for AC 230 V. The bus lines H and S carry low voltage and must not be subjected to external voltages. For inductive or capacitive interference from high-current lines, the use of shielded cables is recommended, with the shield connected to PE. The minimum fault duration is 100 ms, and the minimum acknowledgment duration is 200 ms.

Mechanical and electrical life
The mechanical life is at least 30 million switching operations. The electrical life at 1 A and 230 V is at least 150,000 switching operations. Short-circuit resistance is ensured with a maximum fuse rating of 4 A gG/gL according to IEC/EN 60947-5-1. The creepage and clearance distances correspond to a rated impulse voltage of 4 kV and pollution degree 2 according to IEC 60664-1.

Technical data
Alarm inputs4
Alarm inputs extendable up to160
Enclosure designDistribution board
Operating principleDe-energized on trip, Energized on trip
Optical signalLED
Width35 mm
TypeIL 5990
Optional buzzerYes
Variant
Contact equipping2 x 1 NO contact
Nominal voltageAC 230 V
Operate delay1 s


Product data sheet
Datasheet for Dold 0049188, EAN: 4030641491888

Questions & answers

What is the delivery time of Dold 0049188 IL5990 AC 50/60 Hz 230 V 1S surge relay ?

The article Dold 0049188 IL5990 AC 50/60 Hz 230 V 1S surge relay is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0049188 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0049188 IL5990 AC 50/60 Hz 230 V 1S surge relay always at the best possible price. We can give you a discount of 2% on Dold 0049188 IL5990 AC 50/60 Hz 230 V 1S surge relay if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Dold 0049188 IL5990 AC 50/60 Hz 230 V 1S surge relay we can offer you a price of 188,55 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
