Dold 0049177 IK9169.11 3/N AC380-415/220-240V phase monitor

Your rating:
Average rating
product review for Dold 0049177 IK9169.11 3/N AC380-415/220-240V phase monitor
( 4.5 / 5 ) 20 ratings
Dold 0049177
This image may differ from the desired article.

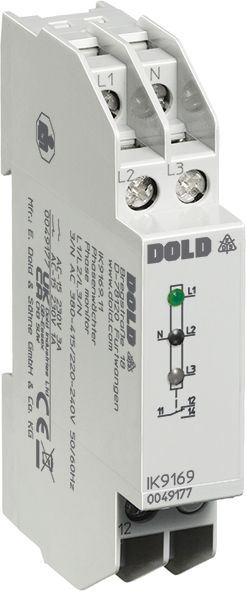

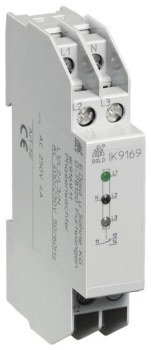

Dold 0049177Dold 0049177
90,69 EUR
( 107,92 EUR incl. VAT )
≈ £75.91  |  ≈ $99.67
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0049177 IK9169.11 3/N AC380-415/220-240V phase monitor
Datasheet:file_download Download
Lieske Part No.:738723
Mfg Part No: 0049177
UPC/EAN: 4030641491772
Weight:0.068 kg
Type:IK9169.113AC380-415/220-240V
Graduated prices net
From piecesPrice per pieces
687,29 EUR
1283,89 EUR
2480,49 EUR
3677,09 EUR

Product information for Dold 0049177:

The phase monitor IK9169.113AC380-415/220-240V from Dold is an electrical monitoring device for detecting phase failure in three-phase networks. It is designed for use in industrial and installation distributor constructions and complies with the standard IEC/EN 60255-1. The device monitors voltage in a 3/N system with a nominal voltage of 380 to 415 V as well as 220 to 240 V and is designed for an operating voltage range of 0.8 to 1.1 times nominal voltage. The frequency range is 45 to 65 Hz, with a nominal frequency of 50/60 Hz. Detection of a phase failure occurs at a voltage below 120 V.

Applications

The phase monitor is intended for use in industrial and commercial electrical installations, particularly in systems that require stable three-phase supply, such as pumps, fans, conveyor systems, or production machines. It can also be connected single-phase, enabling flexible integration into existing systems. The IK 9169 design is intended for installation distributors according to DIN 43880, with connection terminals located at the bottom. The width is 17.5 mm, enabling compact mounting in standard distributor enclosures.

Functions and Equipment in Detail

The device operates on the principle of rest current, where the output relay is not activated in the event of a fault. This means that the changeover contact is closed during normal operation and opens in the event of a phase failure. The output contacts consist of a changeover contact (1 C/O contact), rated for a thermal current of 4 A. The switching capacity is 3 A at 230 V AC for the closer and 1 A at 230 V AC for the opener, according to IEC/EN 60947-5-1. The electrical life is typically 300,000 switching operations at 1 A and 230 V AC. The mechanical life is at least 30 million switching operations.

Technology Explained Simply

Monitoring is performed via the three phase conductors L1, L2, and L3, as well as the neutral conductor N. The LEDs for each phase light up when the corresponding phase voltage is present. In the event of a phase failure or interruption of the neutral conductor, the LEDs do not light up, even if phase voltage is present. In this case, additional measurement is required to verify the absence of voltage. The connection terminals are designed for a conductor cross-section of 2 x 0.6 to 2.5 mm² (solid) or 2 x 0.28 to 1.5 mm² (flexible). The stripping length is 10 mm. Mounting is done via non-loosening plus-minus terminals with M3.5 screws and self-lifting connection washers. Installation is carried out on a DIN rail according to IEC/EN 60715.

Compatibility and Accessories

The phase monitor is available in three housing types: IK, RK, and SK. The IK type (as shown here) is designed for installation distributors, the RK type has a greater depth (71 mm), and the SK type (100 mm depth) is intended for enclosures with mounting plate and cable duct. The devices are designed for use in systems with three-phase networks and can also be used in single-phase installations. UKCA approval is granted.

Mounting and Installation

Mounting is done on a DIN rail (IEC/EN 60715) within an installation distributor. The connection terminals are located at the bottom of the device. Conductors are secured using plus-minus terminals with M3.5 screws. The maximum depth is 59 mm. The operating temperature range is from -20 °C to +60 °C, and the storage temperature range is from -25 °C to +60 °C. The operating altitude is limited to a maximum of 2000 m above sea level. The enclosure protection rating is IP 40, providing protection against finger contact and against solid objects larger than 1 mm, as well as against splashing water from any direction.

Operational Advantages

The LED indication for each phase allows for quick visual inspection of the operating status. The rest current principle ensures that the output is closed under normal conditions, increasing reliability. The compact design with a width of 17.5 mm enables dense mounting in distributors. The high mechanical life and robust construction ensure long-term operation. The EMC protection according to IEC/EN 61000-4-2 to -5 protects the device against electromagnetic disturbances, such as static discharges, high-frequency radiation, fast transients, and surge voltages. The maximum fuse rating is 4 A gG/gL, ensuring safe short-circuit resistance. The creepage and clearance distances correspond to pollution degree 2 with a rated impulse voltage of 4 kV between inputs and between input and output. The operating mode is continuous duty. The device dimensions are 17.5 mm (width) x 90 mm (height) x 59 mm (depth).

Technical data
1- / 3-phase3
Enclosure designDistribution board
Measuring range max.415 V
Output contacts1 C/O contact
Width17,5 mm
TypeIK 9169
Variant
Nominal voltage3/N AC 380 - 415 V / 220- 240 V
Approvals and MarkingsUKCA


Product data sheet
Datasheet for Dold 0049177, EAN: 4030641491772

Questions & answers

What is the delivery time of Dold 0049177 IK9169.11 3/N AC380-415/220-240V phase monitor ?

The article Dold 0049177 IK9169.11 3/N AC380-415/220-240V phase monitor is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0049177 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0049177 IK9169.11 3/N AC380-415/220-240V phase monitor always at the best possible price. We can give you a discount of 2% on Dold 0049177 IK9169.11 3/N AC380-415/220-240V phase monitor if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Dold 0049177 IK9169.11 3/N AC380-415/220-240V phase monitor we can offer you a price of 87,29 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
