Dold 0049174 IK9168 3AC 50/60Hz 230/400V phase indicator

Your rating:
Average rating
product review for Dold 0049174 IK9168 3AC 50/60Hz 230/400V phase indicator
( 4.6 / 5 ) 115 ratings
Dold 0049174
This image may differ from the desired article.

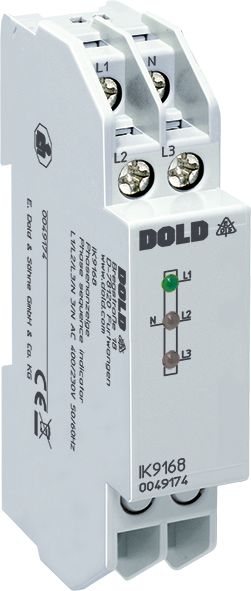

Dold 0049174Dold 0049174
63,72 EUR
( 75,83 EUR incl. VAT )
≈ £53.08  |  ≈ $69.90
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0049174 IK9168 3AC 50/60Hz 230/400V phase indicator
Datasheet:file_download Download
Lieske Part No.:161267
Mfg Part No: 0049174
UPC/EAN: 4030641491741
Weight:0.123 kg
Type:IK91683AC50/60HZ230/400V
Graduated prices net
From piecesPrice per pieces
661,33 EUR
1258,94 EUR
2456,55 EUR
3654,16 EUR

Product information for Dold 0049174:

Dold IK9168 is a phase monitor for three-phase networks, designed for detection of phase failure. The device is intended for use in installation and industrial distributors and complies with standards IEC/EN 60 255 and DIN VDE 0435-303. It monitors voltage in a 3/N-AC system with a nominal voltage of 230/400 V and a frequency of 50/60 Hz. The LED indicator for each phase (L1, L2, L3) provides visual indication of whether the respective phase is present. The indicator lights up when the voltage reaches at least 50 % of the nominal voltage (operate value: 0.5 UN ± 10 %). The phase sequence is arbitrary, allowing flexible installation. The device can also be connected single-phase, with unused phases not activated.

Applications

The IK9168 is used in industrial and commercial facilities where continuous monitoring of three-phase power supply is required. Typical applications include machine controls, pumps, fans, or other drives that depend on stable three-phase supply. The indicator enables operators to quickly respond to voltage failures or interruptions, preventing damage to equipment or production downtime. The operating temperature ranges from -20 °C to +60 °C, allowing use in various environments.

Functions and Equipment in Detail

The device features an LED indicator per phase, visually signaling the presence of voltage. The indicator is clearly visible and enables quick diagnosis. The nominal voltage is 3/N AC 400/230 V, with a measurement range up to 400 V. The input voltage must be within 0.8 to 1.1 times the nominal voltage for correct operation. The nominal frequency is 50/60 Hz, with the device also operable at frequencies between 45 and 65 Hz. The nominal power consumption per input is 0.5 VA, indicating low network load. The input current at nominal voltage is 0.2 mA.

Technology Explained Simply

The phase monitor operates continuously, monitoring voltage in each phase. If the voltage drops below 50 % of the nominal voltage, the LED for the affected phase turns off, enabling quick identification of failures. The enclosure design is for installation distributor, allowing mounting on a DIN rail according to IEC/EN 60715. The width is 17.5 mm, enabling compact placement in distributors. The depth is 59 mm, with connection terminals located at the bottom. This is specifically designed for installation and industrial distributors according to DIN 43 880. The enclosure is made of thermoplastic material with V0 rating per UL 94, indicating high flame resistance. The enclosure protection rating is IP 40, protecting against finger contact and solid objects larger than 1 mm. The terminals have a protection rating of IP 40.

Compatibility and Accessories

The device is available in two versions: IK 9168 (depth 59 mm, terminals at bottom) and SK 9168 (depth 98 mm, terminals at top). The SK version is intended for enclosures with mounting plate and cable duct. The terminals are rated for cables with 2 x 2.5 mm² (solid) or 2 x 1.5 mm² (stranded, with cable lug). Mounting is done on a DIN rail. The cable connection is made via flat terminals with self-lifting clamp according to IEC/EN 60999-1. The terminal marking follows EN 50005.

Mounting and Installation

Mounting is on a DIN rail (IEC/EN 60715). The terminals are located at the bottom, enabling easy wiring in standard distributors. Cable cross-sections are limited to 2 x 2.5 mm² (solid) or 2 x 1.5 mm² (stranded, with cable lug). The terminals are designed for secure connection and prevent cable loosening. The depth of 59 mm requires sufficient space in the distributor. Mounting is tool-free, as the DIN rail is standardized.

Operational Advantages

The IK9168 provides reliable and visual monitoring of phase supply. The LED indicator enables quick fault detection. The low depth and width save space in the distributor. Compatibility with various distributor types (installation and industrial distributors) increases application flexibility. Compliance with standards IEC/EN 60 255 and DIN VDE 0435-303 ensures safety and reliability. The operating temperature range of -20 °C to +60 °C allows use in various environments. The low current draw (0.2 mA at nominal voltage) does not burden the network. The IP 40 protection rating safeguards against mechanical impact and foreign objects.

Technical data
1- / 3-phase3
Enclosure designDistribution board
Measuring range max.400 V
Standard measuring range3/N AC 400/230 V
Width17,5 mm
TypeIK 9168
Variant
Nominal voltage3AC 230/400 V


Product data sheet
Datasheet for Dold 0049174, EAN: 4030641491741
