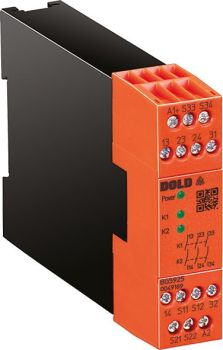

Dold 0049169 BG5925.03/61 AC/DC24V emergency stop module
|
281,97 EUR |
|||||||||||
|
( 335,54 EUR incl. VAT ) ≈ £236.01 | ≈ $309.89 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 893044 | ||||||||||
| Mfg Part No: | 0049169 | ||||||||||
| UPC/EAN: | 4030641491697 | ||||||||||
| Weight: | 0.247 kg | ||||||||||
| Type: | BG5925.03 AC/DC24V | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Dold 0049169:
Applications
This safety relay is used in systems where safe shutdown in an emergency is required, for example in manufacturing industry, on machines with moving parts, or in systems with safety doors. It is suitable as a safety door monitor, meaning it can monitor the position of sliding safety guards to ensure they are closed before the machine is started. The application is carried out in 1- or 2-channel wiring, enabling the safety function to be implemented redundantly to increase reliability.
Functions and Equipment in Detail
The device features an LED indicator for channel 1, channel 2, and the power supply, visually signaling the operating status. The connection technology uses removable screw terminals, enabling flexible and secure connections. The terminals are rated for conductor cross-sections up to 2.5 mm², and stranded wires with ferrules according to DIN 46 228-1/-2/-3/-4 can also be used. Cross-connection detection is integrated and can be activated via switch S1 in the emergency stop control circuit to prevent false alarms caused by accidental connections. Activation can be done either via a single-button or via the automatic start function, which can be set using switch S2.
Technology Explained Simply
The safety relay operates according to the standards of safe control technology. It meets Category 4 and Performance Level e according to EN ISO 13849-1, representing the highest requirement for safety functions in industrial applications. Additionally, it is certified to SIL 3 according to IEC/EN 62061, confirming its ability to safely detect and handle faults in safety-critical systems. The thermal current Ith max. is 5 A, indicating the maximum load capacity of the contacts. Conductor short-circuit detection at the single-button ensures that an accidental short circuit at the button is detected and does not impair the safety function.
Compatibility and Accessories
The device is designed for use in emergency stop systems and can be combined with appropriate emergency stop buttons and safety door switches. The certifications UL-listed C/US, TÜV, CCC confirm compliance with international safety standards. The use in 1- or 2-channel wiring allows flexible adaptation to different safety requirements.
Mounting and Installation
Mounting is done on standard DIN rails with a module width of 22.5 mm. The removable screw terminals facilitate installation and maintenance. The connection terminals are designed for use with wires up to 2.5 mm², and the use of ferrules according to DIN 46 228-1/-2/-3/-4 is recommended. Installation must follow the manufacturer’s technical instructions, with correct wiring being crucial for the safety function.
Advantages in Operation
The safety relay offers high reliability through integrated cross-connection detection and the optional redundant 2-channel wiring. The LED indicators allow for quick diagnosis of the operating status. The certifications according to UL, TÜV, and CCC ensure compliance with international safety standards. The compact design and removable terminals simplify mounting and maintenance in industrial environments. The function as a safety door monitor extends the application range to machines with moving parts, where safe emergency shutdown is critical.
| Technical data | |
| 1- / 2-channel | 1, 2 |
| Approvals | UL |
| Cat. / PL acc. to EN ISO 13849-1 | 4/e |
| Connection | Pluggable screw terminals |
| Output contacts max. | 4 NO contacts |
| SIL CL acc. to IEC/EN 62061 | 3 |
| SIL acc. to IEC/EN 62061 | 3 |
| Thermal current Ith max. | 5 A |
| Width | 22,5 mm |
| Type | BG 5925 |
| Cross fault detection | |
| Suited as safety gate monitor | |
| Variant | |
| Contact equipping | 3 NO contacts |
| Nominal voltage | AC/DC 24 V |
| Approvals and Markings | UL-listed C/US, TÜV, CCC |
