Dold 0049168 BG5925.22/61 AC/DC24V emergency stop module

Your rating:
Average rating
product review for Dold 0049168 BG5925.22/61 AC/DC24V emergency stop module
( 4.7 / 5 ) 9 ratings
Dold 0049168
This image may differ from the desired article.
281,97 EUR
( 335,54 EUR incl. VAT )
≈ £236.01  |  ≈ $309.89
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0049168 BG5925.22/61 AC/DC24V emergency stop module
Datasheet:file_download Download
Lieske Part No.:511625
Mfg Part No: 0049168
UPC/EAN: 4030641491680
Weight:0.247 kg
Type:BG5925.22 AC/DC24V
Graduated prices net
From piecesPrice per pieces
4279,86 EUR
8277,74 EUR
12275,63 EUR
16273,51 EUR

Product information for Dold 0049168:

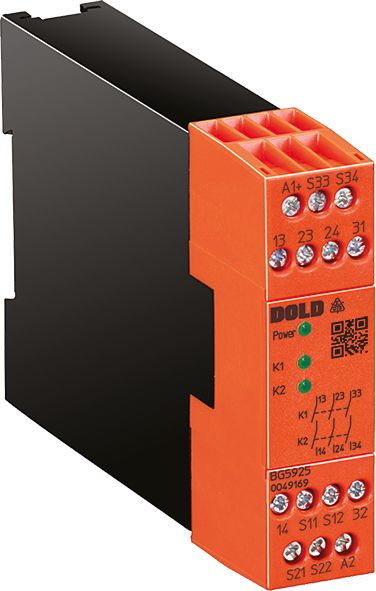

The Dold BG5925.22 AC/DC24V is a safety relay, specifically designed for use in emergency stop circuits and for monitoring sliding safety grilles in industrial plants. It protects personnel and machinery by safely disconnecting drives or power supplies in hazardous situations. The device is designed as an emergency stop module and allows for 1- or 2-channel wiring, enabling flexible integration into various safety concepts. The width of 22.5 mm enables compact mounting in standard control panels.

Safety functions and approvals
This device meets the requirements of standard EN ISO 13849-1 in Category 4 and with Performance Level PL e, ensuring high safety performance in critical applications. Additionally, it complies with SIL 3 class according to IEC/EN 62061, confirming reliability in fault detection and handling. The approvals UL-listed C/US, TÜV, and CCC confirm conformity with international safety standards and enable use in various markets. Cross-circuit detection in the emergency stop control circuit ensures that a short circuit between channels is detected and the safety function is not interrupted.

Functions and equipment in detail
The module features contact configuration with 2 normally closed contacts and 1 normally open contact, with up to 4 normally closed contacts usable per device. Activation is via a single-button, which can be triggered either manually by pressing the button or automatically via switch S2. The LED display indicates the status of channels 1 and 2 as well as the supply voltage, facilitating diagnosis of operating conditions. Wire break detection at the single-button detects an open conductor and thus prevents dangerous malfunctions.

Technology explained simply
Power supply is via AC/DC 24 V, allowing the device to operate on both alternating and direct current networks. The maximum thermal current is 5 A, defining the contact load capacity. The connection technology is based on removable screw terminals, enabling secure and quick connections. The terminals are designed for stranded wires with 2 x 1.5 mm² (with sleeve and plastic collar DIN 46 228-1/-2/-3/-4) or 2 x 2.5 mm² (with sleeve DIN 46 228-1/-2/-3), ensuring flexible wiring.

Compatibility and accessories
The device is suitable as a safety door monitor, meaning it can be used in systems for monitoring sliding safety grilles. The 1- or 2-channel wiring enables integration into different safety architectures, with cross-circuit detection providing an additional safety level. The connection terminals are removable, simplifying maintenance and installation.

Mounting and installation
Mounting is in standard control panels with a width of 22.5 mm. The terminals are designed for use with wires according to DIN 46 228, ensuring a secure mechanical and electrical connection. The LED indicators support commissioning and maintenance by visually displaying the operating status.

Advantages in operation
The combination of high safety requirements (PL e, Cat. 4, SIL 3) and flexible configuration (1- or 2-channel, cross-circuit detection) makes the device a reliable solution for critical applications. The integrated wire break detection and LED indicators increase operational safety and simplify troubleshooting. The universal power supply (AC/DC 24 V) and compact design support flexible and cost-effective installation in industrial environments.

Technical data
1- / 2-channel1, 2
ApprovalsUL
Cat. / PL acc. to EN ISO 13849-14/e
ConnectionPluggable screw terminals
Output contacts max.4 NO contacts
SIL CL acc. to IEC/EN 620613
SIL acc. to IEC/EN 620613
Thermal current Ith max.5 A
Width22,5 mm
TypeBG 5925
Cross fault detectionYes
Suited as safety gate monitorYes
Variant
Contact equipping2 NO contacts, 1 NC contact
Nominal voltageAC/DC 24 V
Approvals and MarkingsUL-listed C/US, TÜV, CCC


Product data sheet
Datasheet for Dold 0049168, EAN: 4030641491680
