Dold 0049010 IK9173.11/041 AC230V 0.55-1.05UN4% undervoltage relay Tv=0.5-20S

Your rating:
Average rating
product review for Dold 0049010 IK9173.11/041 AC230V 0.55-1.05UN4% undervoltage relay Tv=0.5-20S
( 4.3 / 5 ) 3 ratings

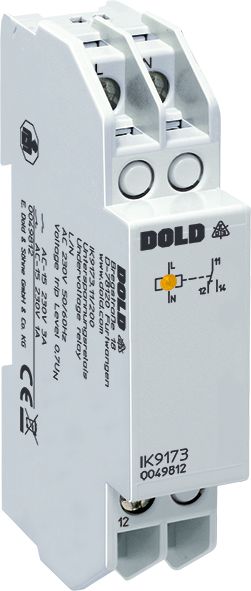

Dold 0049010
This image may differ from the desired article.
121,00 EUR
( 143,99 EUR incl. VAT )
≈ £101.28  |  ≈ $132.98
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0049010 IK9173.11/041 AC230V 0.55-1.05UN4% undervoltage relay Tv=0.5-20S
Datasheet:file_download Download
Lieske Part No.:1583533
Mfg Part No: 0049010
UPC/EAN: 4030641490102
Weight:0.073 kg
Type:IK9173.11/041 AC230V 0,55-1,05UN4%
Graduated prices net
From piecesPrice per pieces
5120,09 EUR
10119,19 EUR
15118,28 EUR
20117,37 EUR

Product information for Dold 0049010:

The Dold undervoltage relay IK9173.11/041 AC230V 0,55-1,05UN4% is a single-phase voltage monitoring device for alternating current networks. It is designed for detecting undervoltages and enables automatic response to voltage drops, preventing damage to connected loads or systems. The device operates on the operating current principle, in which the output relay is not activated in the event of a fault, and is suitable for use in industrial and railway applications. Measurement is performed via the L-N voltage, with the arithmetic mean value being captured. The nominal voltage is AC 230 V, and the device is designed for frequencies between 45 and 65 Hz.

Applications
This relay is intended for network monitoring in industrial installations, in enclosures, and in systems with local power generation. It can be used for automatic switching to a safety power supply or safety lighting in accordance with DIN VDE 0100-710 or DIN VDE 0108. It is particularly suitable for unstable networks, where certain load groups should only be re-energized after a defined delay following a voltage drop. This is required, for example, with compressors or certain machining machines that must not be restarted immediately after a brief power interruption.

Functions and Equipment in Detail
The device features an adjustable pickup value in the range of 0.55 to 1.05 times nominal voltage (Un) with a hysteresis of approximately 4 %. The time delay t2 for resetting to the normal state is adjustable between 0.5 and 20 seconds. The pickup delay is activated, meaning the device does not immediately react to short-term voltage fluctuations. The contact configuration includes a changeover contact (11-12-14), consisting of a normally open contact (11-14) and a normally closed contact (11-12). The contact materials are made of AgNi, ensuring high switching durability and corrosion resistance. The rated operating voltage is AC 250 V, and the thermal current Ith is 4 A.

Technology Explained Simply
The relay measures the voltage between line and neutral conductor (L-N) and compares it with the set pickup value. If the voltage drops below the set value, the output changeover contact is activated after the set time delay t2. The LED indicator lights yellow when contact 11-14 is closed, i.e., when the output is active. The response time of the input circuit during a phase failure is approximately 100 ms. Operational safety is ensured by compliance with the standard IEC/EN 60255-1.

Compatibility and Accessories
The relay is designed for use in installation and industrial distributors in accordance with DIN 43880. The IK 9173 housing type has a depth of 59 mm and bottom-mounted connection terminals. It is compatible with other devices in the VARIMETER series, particularly the SK 9173 variant, which has a greater depth and top-mounted terminals for enclosures. The devices can be used in combination with other monitoring relays to achieve staged switching-off and re-energizing times.

Mounting and Installation
The device is mounted in installation distributors, with the connection terminals located at the bottom. The width is 17.5 mm, enabling compact placement in standard distributors. Mounting is performed without additional auxiliary voltage, reducing wiring effort. The terminals are designed for direct connection to wires, and the electrical service life is at least 300,000 switching operations at AC 230 V and 1 A (cos ϕ = 0.5). The mechanical service life is at least 30 million switching operations.

Operational Advantages
Early detection of undervoltages and the ability to time-controlled switching off and re-energizing of loads increases operational safety. Preventive maintenance is enabled, as impending failures can be detected early. The high availability of the system is ensured by the reliable function of the relay. Simple installation without auxiliary voltage reduces mounting effort and susceptibility to errors. Compliance with the standard IEC/EN 60255-1 ensures reliability and safety of the device in industrial applications.

Technical data
1- / 3-phase1
Auxiliary voltageWithout
Enclosure designDistribution board
Nominal voltage max.AC 230 V, DC 125 V
Output contacts1 C/O contact
Width17,5 mm
TypeIK 9173
Operate delayYes
Variant
Contact equipping1 changeover contact
Nominal voltageAC 230 V
Response value0,55 - 1,05 Un 4%
Time delay0,5 - 20 s
VariantEnergized on trip. Settable time delay t2. Settable response value


Product data sheet
Datasheet for Dold 0049010, EAN: 4030641490102
