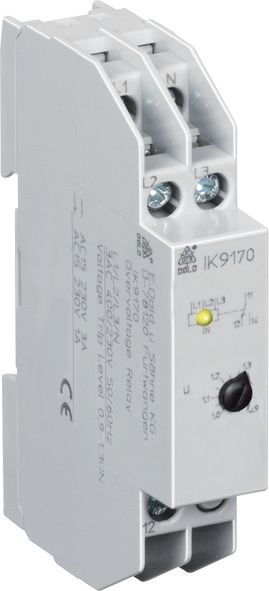

Dold 0048645 IK9170.11 3/N AC400/230V 0.9-1.3UN overvoltage relay

Your rating:
Average rating
product review for Dold 0048645 IK9170.11 3/N AC400/230V 0.9-1.3UN overvoltage relay
( 4.3 / 5 ) 6 ratings
Dold 0048645
This image may differ from the desired article.
121,00 EUR
( 143,99 EUR incl. VAT )
≈ £101.28  |  ≈ $132.98
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0048645 IK9170.11 3/N AC400/230V 0.9-1.3UN overvoltage relay
Datasheet:file_download Download
Lieske Part No.:1583371
Mfg Part No: 0048645
UPC/EAN: 4030641486457
Weight:0.123 kg
Type:IK9170.11 3/N AC400/230V 0,9-1,3UN
Graduated prices net
From piecesPrice per pieces
5116,46 EUR
10111,93 EUR
15107,39 EUR
20102,85 EUR

Product information for Dold 0048645:

The overvoltage relay IK9170.11 from Dold is an electronic monitoring device for detecting overvoltages in three-phase power networks. It is designed for installation in installation and industrial distributors according to DIN 43880 and operates without auxiliary voltage. The device monitors three-phase networks with a rated voltage of 3/N AC 400/230 V and can also be connected single-phase. The pickup value is adjustable within a range of 0.9 to 1.3 times the rated voltage, with a hysteresis of approximately 4 % to prevent unwanted switching operations due to voltage fluctuations. Monitoring is performed via the arithmetic mean of the phase voltages relative to the neutral conductor; in variants without a neutral conductor, phases L1 and L3 are measured relative to L2. Phase sequence is arbitrary, enabling flexible installation.

Applications
This relay is suitable for monitoring three-phase power supplies in industrial and commercial facilities, where stable voltage supply is critical for the operation of machines and equipment. It is used to prevent damage to electrical consumers caused by sudden voltage spikes or sustained overvoltages. Applications include systems with sensitive electronics, such as controls, frequency converters, or industrial process control technology.

Functions and Features in Detail
The device features an output contact in the form of a 1 changeover contact, consisting of a normally open contact (11–14) and a normally closed contact (11–12). The contact materials are made of AgNi 0.15 + 0.3 μm Au, ensuring high switching durability and corrosion resistance. The rated operating voltage is AC 250 V, and the relay can carry a thermal current of 4 A. The switching capacity according to AC 15 is 3 A at 230 V for the normally open contact and 1 A at 230 V for the normally closed contact. The electrical life expectancy is at least 300,000 switching operations at 230 V and 1 A (cos φ = 0.5), while the mechanical life expectancy is at least 30 million switching operations. A yellow LED indicates the contact position – it lights up when the output relay contact is closed (11–14). The device operates on the standby current principle, meaning the output relay contact is not activated in the event of a fault.

Technology Explained Simply
The relay continuously measures the voltage in the network and compares it with the set pickup value. If the voltage exceeds the set value, the output relay contact switches. Monitoring is performed without auxiliary voltage, as the device is directly connected to the network being monitored and draws its power from it. The rated power consumption is approximately 4 VA. The frequency range covers 45 to 65 Hz, enabling use in networks with standard frequencies of 50 or 60 Hz. The maximum overload capacity is 1.35 times the rated voltage continuously. The operating temperature range is from -20 °C to +60 °C, and the storage temperature range is from -25 °C to +60 °C. The relative humidity is up to 93 % at 40 °C. The operating altitude is limited to below 2000 m.

Compatibility and Accessories
The device is designed for mounting on a DIN rail according to IEC/EN 60715. The connection terminals are rated for conductor cross-sections of 2 x 2.5 mm² (solid) or 2 x 1.5 mm² (stranded wire with sleeve DIN 46228-1/-2/-3/-4). The tightening torque is 0.8 Nm. The width is 17.5 mm, and the depth is 59 mm. The housing design is intended for installation distributors. The degree of protection is IP 40 for the housing and IP 40 for the terminals. The rated impulse voltage is 4 kV at pollution degree 2. The device complies with the standard IEC/EN 60255-1. EMC requirements are met according to IEC/EN 61000-4-2 to -5, including immunity to electrostatic discharge (8 kV), high-frequency radiation (10 V/m), and fast transients (4 kV). Radio frequency interference suppression complies with emission limit class B according to EN 55011. The housing components are made of thermoplastic with V0 behavior according to UL Subject 94.

Mounting and Installation
Mounting is performed on a DIN rail within the distributor. The connection terminals are located at the bottom and are designed for connection with conductors according to DIN 46228. Terminal markings follow EN 50005. Conductor connections are made using flat terminals with self-lifting connection washers according to IEC/EN 60999-1. Vibration resistance is ensured according to IEC/EN 60068-2-6 with an amplitude of 0.35 mm and frequencies from 10 to 55 Hz. Climate resistance corresponds to classification 20/060/04 according to IEC/EN 60068-1.

Operational Advantages
The relay provides reliable, maintenance-free monitoring without external power supply. The adjustable pickup voltage allows application-specific adaptation. The LED indicator simplifies diagnosis of the operating status. The high mechanical and electrical life expectancy ensures long-term operation. Compatibility with various network configurations (with/without neutral conductor, single-phase/three-phase) increases installation flexibility. Compliance with the standard IEC/EN 60255-1 and EMC testing guarantees safe and reliable operation in industrial environments.

Technical data
1- / 3-phase1, 3
Auxiliary voltageWithout
Enclosure designDistribution board
Nominal voltage max.3/N AC 400 / 230 V
Output contacts1 C/O contact
Width17,5 mm
TypeIK 9170
Operate delayYes
Variant
Contact equipping1 changeover contact
Nominal voltage3/N AC 400 / 230 V
Response value0,9 - 1,3 Un
Time delaywithout
VariantWith N. NC circuit operation. Without time delay. Settable response value


Product data sheet
Datasheet for Dold 0048645, EAN: 4030641486457

Questions & answers

What is the delivery time of Dold 0048645 IK9170.11 3/N AC400/230V 0.9-1.3UN overvoltage relay ?

The article Dold 0048645 IK9170.11 3/N AC400/230V 0.9-1.3UN overvoltage relay is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0048645 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0048645 IK9170.11 3/N AC400/230V 0.9-1.3UN overvoltage relay always at the best possible price. We can give you a discount of 2% on Dold 0048645 IK9170.11 3/N AC400/230V 0.9-1.3UN overvoltage relay if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Dold 0048645 IK9170.11 3/N AC400/230V 0.9-1.3UN overvoltage relay we can offer you a price of 116,46 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
