Dold 0048643 IK9171.11 3/N AC400/230V 0.55-1.05 UN undervoltage relay

Your rating:
Average rating
product review for Dold 0048643 IK9171.11 3/N AC400/230V 0.55-1.05 UN undervoltage relay
( 4.5 / 5 ) 18 ratings
Dold 0048643
This image may differ from the desired article.

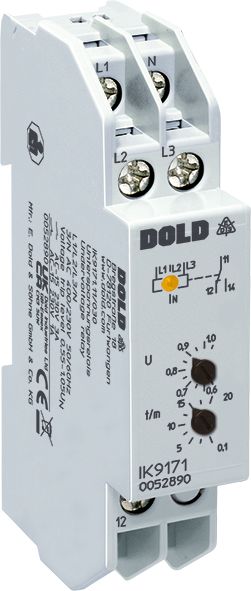

Dold 0048643Dold 0048643
116,97 EUR
( 139,19 EUR incl. VAT )
≈ £97.90  |  ≈ $128.55
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0048643 IK9171.11 3/N AC400/230V 0.55-1.05 UN undervoltage relay
Datasheet:file_download Download
Lieske Part No.:158940
Mfg Part No: 0048643
UPC/EAN: 4030641486433
Weight:0.073 kg
Type:IK9171.11 3/N AC400/230V ,55-1,05UN
Graduated prices net
From piecesPrice per pieces
5112,58 EUR
10108,20 EUR
15103,81 EUR
2099,42 EUR

Product information for Dold 0048643:

The Dold undervoltage relay IK9171.11 is an electronic monitoring device for detecting undervoltages in three-phase power networks. It is used for network monitoring and enables automatic switching to a safety power supply or safety lighting in accordance with DIN VDE 0100-710 and DIN VDE 0108. The device operates on the stand-by current principle, whereby the output relay is not activated in the event of a fault, ensuring safe and reliable fault detection. It is designed for use in installation distributor configurations and features a width of 17.5 mm, enabling compact mounting in standard distributor enclosures.

Applications
This relay is designed for monitoring three-phase AC networks with neutral conductor connection (3/N AC 400/230 V). However, it can also be connected single-phase, in which case terminals L1, L2, and L3 must be bridged. The application is particularly suited for industrial and commercial installations where continuous power supply is required for safety functions such as emergency lighting or emergency power units. The variant without time delay is suitable for installations requiring immediate response to voltage drops.

Functions and Features in Detail
The device features an adjustable pickup value in the range of 0.55 to 1.05 times nominal voltage (Un), allowing flexible adaptation to different network conditions. The pickup delay is activated, meaning the device does not react immediately to voltage drop but includes a short delay to filter out brief voltage fluctuations. The output contacts consist of a changeover contact (1 C/O contact), suitable for controlling auxiliary relays or switching devices. A yellow LED indicates the contact position, enabling visual monitoring of the operating status.

Technology Explained Simply
Voltage detection is achieved by measuring the arithmetic mean of each phase against the neutral conductor (N). For variants without neutral conductor connection, voltage is measured between L1 and L3 against L2 (for IK/SK 9171) or between L1 and L2 against L3 (for IL/SL 9171). Monitoring is performed without auxiliary voltage, simplifying installation and increasing independence from the network. The nominal voltage is 3/N AC 400/230 V, with a maximum nominal voltage up to 3/N AC 500/290 V. The frequency range is between 45 and 65 Hz, enabling use in various networks worldwide.

Compatibility and Accessories
The device is designed for use in installation distributor configurations in accordance with DIN 43 880. It is equipped with an I-form module, featuring a depth of 59 mm and bottom-mounted connection terminals. The device variant includes a neutral conductor connection and operates on the stand-by current principle.

Mounting and Installation
Mounting is carried out in standard installation distributor enclosures with a width of 17.5 mm. The connection terminals are located at the bottom, enabling easy integration into existing control systems. The devices are designed for use in industrial and commercial environments and comply with standards IEC/EN 60255-1 and UKCA. Installation requires no additional auxiliary voltage, simplifying wiring.

Operational Advantages
The relay provides reliable and low-maintenance monitoring of three-phase networks. The adjustable pickup voltage allows precise adaptation to specific network conditions. The LED indicator facilitates visual monitoring of the operating status. The form factor with 17.5 mm width and I-form design enables compact mounting in existing distributors. The function without auxiliary voltage reduces installation complexity and enhances operational safety.

Approvals and Markings
The device complies with the standard IEC/EN 60255-1 and bears the UKCA marking, confirming conformity with applicable European safety and functional requirements. The devices are suitable for use in industrial and commercial installations and meet requirements for network monitoring and safety functions.

Technical data
1- / 3-phase1, 3
Auxiliary voltageWithout
Enclosure designDistribution board
Nominal voltage max.3/N AC 500 / 290 V
Output contacts1 C/O contact
Width17,5 mm
TypeIK 9171
Operate delayYes
Variant
Contact equipping1 changeover contact
Nominal voltage3/N AC 400 / 230 V
Response value0,55 - 1,05 Un
Time delaywithout
Approvals and MarkingsUKCA
VariantWith N. NC circuit operation. Without time delay. Settable response value


Product data sheet
Datasheet for Dold 0048643, EAN: 4030641486433

Questions & answers

What is the delivery time of Dold 0048643 IK9171.11 3/N AC400/230V 0.55-1.05 UN undervoltage relay ?

The article Dold 0048643 IK9171.11 3/N AC400/230V 0.55-1.05 UN undervoltage relay is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0048643 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0048643 IK9171.11 3/N AC400/230V 0.55-1.05 UN undervoltage relay always at the best possible price. We can give you a discount of 2% on Dold 0048643 IK9171.11 3/N AC400/230V 0.55-1.05 UN undervoltage relay if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Dold 0048643 IK9171.11 3/N AC400/230V 0.55-1.05 UN undervoltage relay we can offer you a price of 112,58 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
