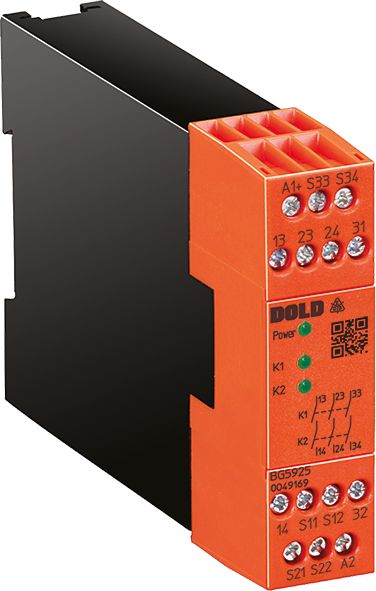

Dold 0048604 BG5925.22/61 DC24V emergency stop module
|
281,97 EUR |
|||||||||||
|
( 335,54 EUR incl. VAT ) ≈ £236.01 | ≈ $309.89 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 710276 | ||||||||||
| Mfg Part No: | 0048604 | ||||||||||
| UPC/EAN: | 4030641486044 | ||||||||||
| Weight: | 0.247 kg | ||||||||||
| Type: | BG5925.22 DC24V | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Dold 0048604:
Applications
The safety relay is used in plants where safe disconnection in the event of a fault is required. This includes, for example, machines with protective doors, where the device functions as a protective door monitor, or plants with emergency stop functions, where it monitors the reliability of disconnection. Integration into 1- or 2-channel circuits allows flexible adaptation to different safety requirements. The cross-circuit detection in the emergency stop control circuit recognizes faults such as short circuits between channels and thus ensures increased safety.
Functions and Equipment in Detail
The device features an LED indicator for channel 1, channel 2, and supply voltage, enabling visual monitoring of the operating status. Activation is performed via a single-button switch or via an automatic start function, which can be set using switch S2. The wire break detection at the single-button switch detects open circuits and signals fault conditions. Connection technology is via removable screw terminals, enabling flexible and secure connections. The terminals are designed for stranded wires with 2 x 1.5 mm² (with ferrule and plastic sleeve DIN 46 228-1/-2/-3/-4) or 2 x 2.5 mm² (with ferrule DIN 46 228-1/-2/-3).
Technology Explained Simply
The safety relay operates according to standards for safety-related control systems. It complies with Category 4 and PL e according to EN ISO 13849-1, representing the highest requirement for safety functions in industrial automation. Additionally, it meets the requirements for SIL 3 according to IEC/EN 62061 and SIL 3 according to IEC/EN 61508, confirming the reliability and fault tolerance of the device in critical applications. The thermal current Ith max. is 5 A, indicating the maximum load capacity of the contacts. The width of 22.5 mm allows for compact mounting in standard control panels.
Compatibility and Accessories
The device is designed for use in safety-related plants and can be used in combination with other components from the Dold portfolio, particularly in systems requiring emergency stop functions or protective door monitoring. The certifications UL-listed C/US, TÜV, CCC confirm compliance with international safety standards and enable use in various markets.
Mounting and Installation
Mounting is performed in standard control panels with a width of 22.5 mm. The removable screw terminals facilitate wiring and maintenance. The LED indicators support commissioning and diagnostics.
Advantages in Operation
The safety relay offers high reliability through integrated cross-circuit detection and wire break detection. The clear indication of operating states via LEDs simplifies maintenance and fault diagnosis. Compatibility with 1- and 2-channel circuits, as well as support as a protective door monitor, expands application possibilities. Certifications according to international standards ensure use in various industries and regions.
| Technical data | |
| 1- / 2-channel | 1, 2 |
| Approvals | UL |
| Cat. / PL acc. to EN ISO 13849-1 | 4/e |
| Connection | Pluggable screw terminals |
| Output contacts max. | 4 NO contacts |
| SIL CL acc. to IEC/EN 62061 | 3 |
| SIL acc. to IEC/EN 62061 | 3 |
| Thermal current Ith max. | 5 A |
| Width | 22,5 mm |
| Type | BG 5925 |
| Cross fault detection | |
| Suited as safety gate monitor | |
| Variant | |
| Contact equipping | 2 NO contacts, 1 NC contact |
| Nominal voltage | DC 24 V |
| Approvals and Markings | UL-listed C/US, TÜV, CCC |
