Dold 0048547 IK9171.11/030 3AC400/230V 0.5-20S undervoltage relay

Your rating:
Average rating
product review for Dold 0048547 IK9171.11/030 3AC400/230V 0.5-20S undervoltage relay
( 4.5 / 5 ) 10 ratings
Dold 0048547

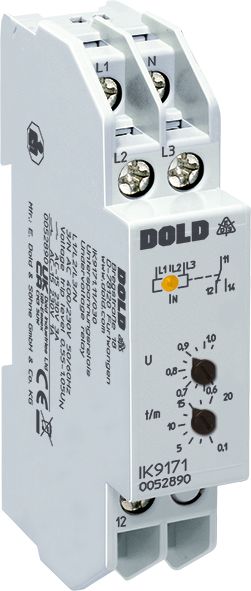

This image may differ from the desired article.
Dold 0048547Dold 0048547
116,97 EUR
( 139,19 EUR incl. VAT )
≈ £97.90  |  ≈ $128.55
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0048547 IK9171.11/030 3AC400/230V 0.5-20S undervoltage relay
Datasheet:file_download Download
Lieske Part No.:1312711
Mfg Part No: 0048547
UPC/EAN: 4030641485474
Weight:0.073 kg
Type:IK9171.11/030 3AC400/230V,55-1,05UN
Graduated prices net
From piecesPrice per pieces
5112,58 EUR
10108,20 EUR
15103,81 EUR
2099,42 EUR

Product information for Dold 0048547:

The Dold undervoltage relay IK9171.11/030 is an electronic monitoring device for three-phase power networks, which responds to undervoltage and is used for network monitoring as well as switching to safety power supply or safety lighting according to DIN VDE 0100-710 or DIN VDE 0108. It is designed for installation in installation distributors and operates on the rest current principle, whereby the output relay is not activated in the event of a fault. The device variant is equipped with an adjustable pickup value ranging from 0.55 to 1.05 times nominal voltage (Un) and features a time delay t1 in the range of 0.5 to 20 seconds. The nominal voltage is 3/N AC 400/230 V, and the device can also be connected single-phase. The width is 17.5 mm, and the housing design is intended for installation distributors. The devices can operate without auxiliary voltage and comply with the standard IEC/EN 60255-1. UKCA approval is available.

Applications
This relay is used in industrial and commercial installations where reliable network monitoring is required. It is used, for example, to protect consumers that must not be switched on immediately after a short power failure, such as compressors or certain processing machines. In unstable power networks, such as those occurring with local power generation or in networks of the 2nd and 3rd world, the time delay t1 enables staged re-starting of consumer groups. The application also includes automatic switching to emergency power supply or emergency lighting in the event of phase loss.

Functions and Equipment in Detail
The device detects undervoltages in three-phase networks and can also be operated single-phase. Measurement is performed via the arithmetic mean of the phase voltages against the neutral conductor (N). For variants without neutral conductor connection, L1 and L3 are measured against L2 (IK/SK 9171) or L1 and L2 against L3 (IL/SL 9171). In single-phase connection, the terminals L1, L2, and L3 must be connected. The contact configuration includes one changeover contact (1 C/O contact). A yellow LED indicates the contact position – it lights up when the output relay contact (11-14) is closed. Phase sequence is arbitrary, and the device can be used regardless of phase sequence.

Technology Explained Simply
The relay operates on the rest current principle, meaning that the output relay is activated during normal operation and deactivated in the event of a fault (e.g. undervoltage). The time delay t1 ensures that the device enters the good state immediately after switching on the operating voltage, even if a fault exists. Only after the set time t1 (0.5–20 s) has elapsed is the fault state activated. The hysteresis is approximately 4 %, ensuring stable switching behavior during voltage fluctuations. The maximum nominal voltage is 3/N AC 500/290 V, and the overload capacity is 1.15 times nominal voltage continuously. The frequency range is 45 to 65 Hz.

Compatibility and Accessories
The device is suitable for 1- or 3-phase connections and can be used in various network voltages, such as 3/N AC 400/230 V. It is intended for mounting in installation distributors according to DIN 43 880. The width of 17.5 mm allows for compact installation. The device variant is equipped with an adjustable pickup value and a time delay t1. There are also variants with time delay t2 for returning to the good state, but this function is not available in the current variant. The devices can operate without auxiliary voltage, simplifying installation.

Mounting and Installation
Mounting is performed in installation distributors with bottom-mounted connection terminals. The depth is 59 mm. The connection terminals are designed for connection to cables. In single-phase connection, terminals L1, L2, and L3 must be connected. The devices are suitable for use in enclosures with mounting plate and cable duct. Installation is performed without additional auxiliary voltage, simplifying wiring.

Operational Advantages
The relay provides reliable network monitoring without auxiliary voltage, simplifying installation and maintenance. The adjustable time delay t1 allows flexible adaptation to different requirements, such as staged re-starting of consumers. The LED indicator enables visual monitoring of the operating status. The rest current principle ensures clear signaling of the fault state. The devices comply with standards IEC/EN 60255-1 and UKCA, ensuring adherence to safety and quality standards.

Technical data
1- / 3-phase1, 3
Auxiliary voltageWithout
Enclosure designDistribution board
Nominal voltage max.3/N AC 500 / 290 V
Output contacts1 C/O contact
Width17,5 mm
TypeIK 9171
Operate delayYes
Variant
Contact equipping1 changeover contact
Nominal voltage3/N AC 400 / 230 V
Response value0,55 - 1,05 Un
Time delay0,5 - 20 s
Approvals and MarkingsUKCA
VariantWith N. NC circuit operation. Settable time delay t1. Settable response value


Product data sheet
Datasheet for Dold 0048547, EAN: 4030641485474
