Dold 0048173 BD5936.17/001 AC/DC24-60V standstill monitor

Your rating:
Average rating
product review for Dold 0048173 BD5936.17/001 AC/DC24-60V standstill monitor
( 4 / 5 ) 4 ratings

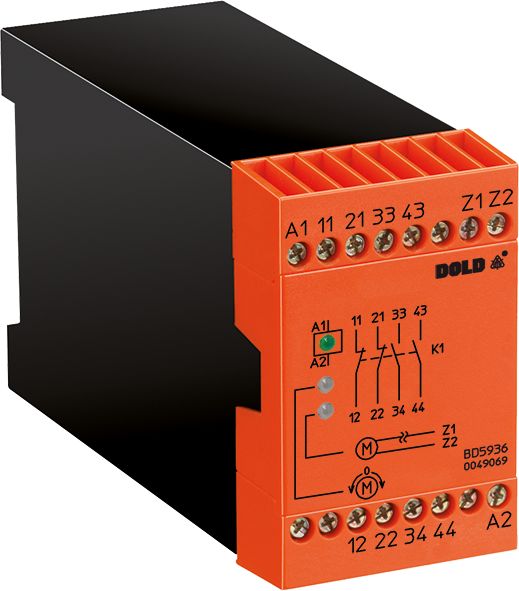

Dold 0048173
This image may differ from the desired article.
425,01 EUR
( 505,76 EUR incl. VAT )
≈ £355.73  |  ≈ $467.09
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0048173 BD5936.17/001 AC/DC24-60V standstill monitor
Datasheet:file_download Download
Lieske Part No.:1583558
Mfg Part No: 0048173
UPC/EAN: 4030641481735
Weight:0.35 kg
Type:BD5936.17/001 AC/DC24-60V
Graduated prices net
From piecesPrice per pieces
4409,07 EUR
8393,13 EUR
12377,20 EUR
16361,26 EUR

Product information for Dold 0048173:

The Dold BD5936.17/001 AC/DC24-60V is a standstill monitor for monitoring three-phase and single-phase asynchronous motors. The device enables sensorless detection of standstill by measuring the induced voltage at two terminals of the stator winding. When the induction voltage approaches 0 V, the motor standstill is detected and the output relay is energized, causing the contacts to switch. Simultaneously, the device monitors the measurement circuit for wire breakage between inputs Z1/Z2. Upon detection of a wire break, the output relay returns to its rest position, as in the case of a running motor, and this state is stored. The storage can only be cleared by briefly switching off the auxiliary voltage.

Applications
This standstill monitor is designed for industrial applications, particularly for releasing safety door interlocks on machine tools or for activating holding brakes. It is suitable for motors with a measurement/motor voltage up to AC 690 V and is installed in enclosures. The width of 45 mm allows for compact mounting in standard control panels.

Functions and Equipment in Detail
The device features forced-guided output contacts: 2 normally closed contacts and 2 normally open contacts, rated for AC 250 V. The contacts are classified according to IEC/EN 60947-5-1, with switching capacity of 3 A/AC 230 V for normally closed contacts and 2 A/AC 230 V for normally open contacts. The electrical life is 100,000 switching cycles at 2 A/AC 230 V. Indication is provided via LEDs: a green LED indicates applied operating voltage, a second green LED indicates motor standstill, and a red LED indicates wire break in the measurement circuit.

Technology Explained Simply
The BD5936 measures the induced voltage at the motor, which decreases as rotational speed drops. When this voltage falls below a pickup value of approximately 20 mV, standstill is detected. The drop-out value is approximately 40 mV. The auxiliary voltage can be in the range AC/DC 24–60 V, with a nominal consumption of approximately 3 VA or 3 W. The voltage range coverage is 0.8 to 1.1 times the nominal voltage. Measurement is performed directly at motor terminals Z1/Z2; in the presence of interference voltages, it is recommended to route the cable separately and connect directly to the motor. For longer connections, the use of twisted cables is recommended.

Compatibility and Accessories
The device is designed for use with 3-phase and 1-phase asynchronous motors. The terminal connections allow for wires with 2 x 1.5 mm² with ferrule and plastic sleeve or 2 x 2.5 mm² with ferrule according to DIN 46228-1/-2/-3/-4. The auxiliary voltage is available in various variants (AC/DC 24–60 V, AC 230 V, etc.), with the variant described here being AC/DC 24–60 V. CCC certification is provided.

Mounting and Installation
Mounting is performed in enclosures. The width is 45 mm, enabling standard mounting in DIN control panels. The terminal connections are designed for the specified wire cross-sections. Inputs Z1/Z2 must be connected directly to the motor; in the presence of interference voltages, separate routing of the measurement cables is recommended.

Advantages in Operation
The sensorless standstill monitoring reduces the number of required sensors and lowers installation costs. Wire break detection increases safety, as a defective measurement circuit is recognized as a fault. The forced-guided contacts ensure a secure switching function, and the LED indicators enable quick visual diagnosis of the operating status. The storage of the wire break state ensures that a fault is not overlooked and can only be reset by manually switching off the auxiliary voltage.

Technical data
ClassificationStillstandsüberwachung
Enclosure designSwitch cabinet
Output contacts2 NC contacts, 2 NO contacts
Width45 mm
TypeBD 5936
Variant
Auxiliary voltageAC/DC 24 - 60 V
Contact equipping2 NO contacts, 2 NC contacts
Approvals and MarkingsCCC
VariantWith automatic reset for broken wire detection


Product data sheet
Datasheet for Dold 0048173, EAN: 4030641481735

Questions & answers

What is the delivery time of Dold 0048173 BD5936.17/001 AC/DC24-60V standstill monitor ?

The article Dold 0048173 BD5936.17/001 AC/DC24-60V standstill monitor is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0048173 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0048173 BD5936.17/001 AC/DC24-60V standstill monitor always at the best possible price. We can give you a discount of 2% on Dold 0048173 BD5936.17/001 AC/DC24-60V standstill monitor if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Dold 0048173 BD5936.17/001 AC/DC24-60V standstill monitor we can offer you a price of 409,07 EUR per piece. The more you buy, the cheaper the article will be.
