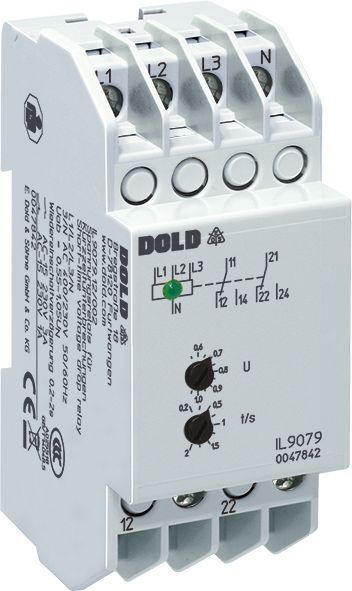

Dold 0048056 IL9079.12/001 3AC400V 0.8UN 0.2-2S undervoltage relay
|
276,25 EUR |
|||||||||||
|
( 328,74 EUR incl. VAT ) ≈ £231.22 | ≈ $303.60 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 1312995 | ||||||||||
| Mfg Part No: | 0048056 | ||||||||||
| UPC/EAN: | 4030641480561 | ||||||||||
| Weight: | 0.122 kg | ||||||||||
| Type: | IL9079.12/001 3AC400V 0,8UN 0,2-2S | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Dold 0048056:
Applications
This relay is designed for use in industrial and installation distributors, especially in systems requiring stable network voltage. It is suitable for monitoring three-phase AC networks with a nominal voltage of 3AC 400 V. The IL 9079 design is intended for installation and industrial distributors according to DIN 43880, with a mounting width of 35 mm and a mounting depth of 59 mm. The connection terminals are located at the bottom, facilitating installation in standard distributor enclosures. The device is also suitable for single-phase connections, where terminals L1, L2, and L3 must be bridged.
Functions and Features in Detail
The relay features two changeover contacts as output contacts, which drop out in the event of a fault. The function is based on the residual current principle, where the output relay is not activated in the event of a fault. The green LED lights up when the network is fault-free and the contacts are closed. In the event of undervoltage or phase failure, the LED turns off and the relay drops out. The re-energizing delay is adjustable between 0.2 and 2 seconds, generating a defined reset signal. The drop-out value is fixed at 0.8 Un, meaning the device reacts when the voltage falls below this level. Phase sequence is arbitrary, and the device can be operated in both 3p3w systems (without neutral conductor) and 3p4w systems (with neutral conductor).
Technology Explained Simply
The voltage of each phase is measured against the neutral conductor (in devices without an N connection, L1 and L2 are measured against L3). If at least one phase falls below the drop-out value of 0.8 Un, the output relay drops out. The relay will only re-engage once all three phase voltages are again above the pickup value (0.85 Un), after the adjustable delay time. The response time during a phase failure is approximately 40 ms at a drop-out value of 0.8 Un. The input resistances are approximately 150 kΩ, and the nominal power consumption is about 8 VA. The nominal frequency is 50/60 Hz, and the device is designed for continuous overload up to 1.1 Un.
Compatibility and Accessories
The device is specified according to IEC/EN 60255-1 and carries the CCC certification. It is designed for use in enclosures and distributors, with the IL 9079 design intended for installation distributors. The connection terminals are designed for mounting in standard distributor enclosures.
Mounting and Installation
Mounting is performed in standard installation distributor enclosures according to DIN 43880. The mounting width is 35 mm, and the mounting depth is 59 mm. The connection terminals are located at the bottom, enabling easy integration into existing distributors. For single-phase applications, terminals L1, L2, and L3 must be connected. The device status is indicated by a green LED, which lights up during fault-free operation.
Operational Advantages
The adjustable re-energizing delay ensures that control systems return synchronously to a defined state after a voltage interruption. This prevents uncontrolled restarts and supports preventive maintenance. The device enables rapid detection of undervoltage or phase failure and ensures stable operation in industrial systems. The simple mounting and clear LED indication facilitate commissioning and maintenance.
| Technical data | |
| 1- / 3-phase | 1, 3 |
| Auxiliary voltage | Without |
| Enclosure design | Distribution board |
| Nominal voltage max. | 3/N AC 400 / 230 V |
| Output contacts | 2 C/O contacts |
| Width | 35 mm |
| Type | IL 9079 |
| Variant | |
| Contact equipping | 2 changeover contacts |
| Nominal voltage | 3AC 400 V |
| Operate delay | 0,2 - 2 s |
| Reset value | 0,8 Un |
| Approvals and Markings | CCC |
| Variant | For 3p3w systems. Fixed response value |
