Dold 0047868 BG5925.02/61 DC24V emergency stop module

Your rating:
Average rating
product review for Dold 0047868 BG5925.02/61 DC24V emergency stop module
( 4.6 / 5 ) 14 ratings
Dold 0047868

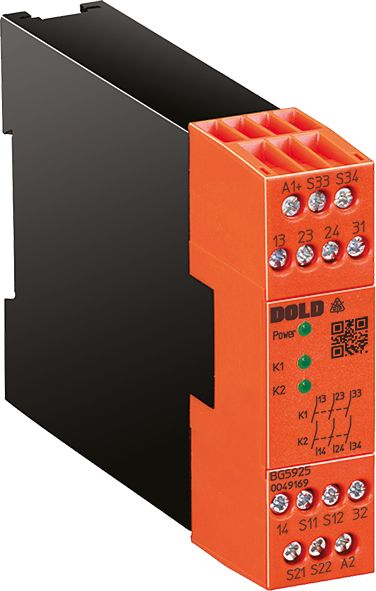

This image may differ from the desired article.
281,97 EUR
( 335,54 EUR incl. VAT )
≈ £236.01  |  ≈ $309.89
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0047868 BG5925.02/61 DC24V emergency stop module
Datasheet:file_download Download
Lieske Part No.:501117
Mfg Part No: 0047868
UPC/EAN: 4030641478681
Weight:0.247 kg
Type:BG5925.02 DC24V
Graduated prices net
From piecesPrice per pieces
4271,40 EUR
8260,82 EUR
12250,25 EUR
16239,67 EUR

Product information for Dold 0047868:

The Dold BG5925.02 DC24V is a safety relay, specifically designed for use in emergency stop circuits and for monitoring sliding safety grilles in industrial plants. It protects personnel and machinery by safely disconnecting drives or power supplies in hazardous situations. The device is designed as an emergency stop module and allows for 1- or 2-channel wiring, enabling flexible integration into various safety concepts. The width of 22.5 mm allows for compact mounting in standard 35 mm control panels.

Safety functions and certifications
The safety relay meets the requirements of standard EN ISO 13849-1 in Category 4 and Performance Level e, ensuring high safety performance in critical applications. Additionally, it is certified according to IEC/EN 62061 for SIL 3, highlighting its reliability in fault detection and handling. The certifications UL-listed C/US, TÜV, and CCC confirm compliance with international safety standards. These certifications make the device suitable for use in various industries, particularly in manufacturing and processing.

Functions and equipment in detail
The device features two normally open contacts (NO) in the standard configuration, with up to four NO contacts possible per unit. The connection technology uses removable screw terminals, enabling flexible and secure connections. The terminals are rated for conductor cross-sections up to 2.5 mm², and stranded wires with ferrules according to DIN 46 228-1/-2/-3/-4 can also be used. The integrated cross-connection detection in the emergency stop control circuit detects faults such as short circuits or open lines and responds accordingly to avoid false alarms. Activation is achieved via a single-button switch or via an automatic activation function, which can be set using switch S2.

Technology explained clearly
The LED indicator displays the status of channels 1 and 2 as well as the power supply, simplifying diagnosis of operating conditions and faults. The thermal current Ith is up to 5 A, defining the contact load capacity. The rated voltage is DC 24 V, a common voltage in industrial control systems. The wire break detection at the single-button switch ensures that a defective switch or broken wire is detected before an incorrect safety state occurs.

Compatibility and accessories
The device is suitable as a safety door monitor, meaning it can be used to monitor sliding safety grilles in machines. The 1- or 2-channel wiring enables integration into different safety architectures. The removable terminal blocks facilitate installation and maintenance.

Mounting and installation
Mounting is done in standard 35 mm control panels, with the width of 22.5 mm allowing for compact placement. The connection terminals are designed for use with stranded wires and ferrules, ensuring a secure and durable connection. The terminal assignment is described in the datasheet, but not detailed in the source text.

Advantages in operation
The combination of high safety requirements (Category 4, PL e, SIL 3) and flexible configurability (1- or 2-channel, cross-connection detection) makes the device a reliable solution for critical safety applications. The LED indicator and integrated fault detection support maintenance and diagnostics. The use of removable terminals simplifies installation and replaceability.

Technical data
1- / 2-channel1, 2
ApprovalsUL
Cat. / PL acc. to EN ISO 13849-14/e
ConnectionPluggable screw terminals
Output contacts max.4 NO contacts
SIL CL acc. to IEC/EN 620613
SIL acc. to IEC/EN 620613
Thermal current Ith max.5 A
Width22,5 mm
TypeBG 5925
Cross fault detectionYes
Suited as safety gate monitorYes
Variant
Contact equipping2 NO contacts
Nominal voltageDC 24 V
Approvals and MarkingsUL-listed C/US, TÜV, CCC


Product data sheet
Datasheet for Dold 0047868, EAN: 4030641478681
