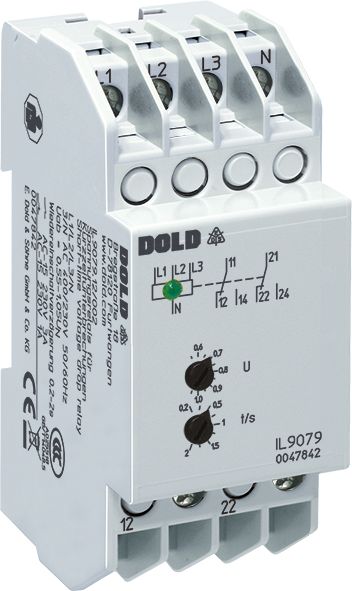

Dold 0047561 IL9079.12 3AC230/400V 0.8UN 0.2-2S undervoltage relay

Your rating:
Average rating
product review for Dold 0047561 IL9079.12 3AC230/400V 0.8UN 0.2-2S undervoltage relay
( 4.3 / 5 ) 4 ratings
Dold 0047561
This image may differ from the desired article.
276,25 EUR
( 328,74 EUR incl. VAT )
≈ £231.22  |  ≈ $303.60
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0047561 IL9079.12 3AC230/400V 0.8UN 0.2-2S undervoltage relay
Datasheet:file_download Download
Lieske Part No.:630647
Mfg Part No: 0047561
UPC/EAN: 4030641475611
Weight:0.122 kg
Type:IL9079.12 3AC230/400V 0,8UN 0,2-2S
Graduated prices net
From piecesPrice per pieces
4272,11 EUR
8267,96 EUR
12263,82 EUR
16259,68 EUR

Product information for Dold 0047561:

The Dold undervoltage relay IL9079.12 is an industrial monitoring switch for three-phase power networks with rated voltage 3AC 230/400 V. It is designed to detect short-term undervoltage conditions or phase failures, such as those occurring during lightning strikes or network switching operations. The device is specifically designed for use in control systems such as contactor or PLC systems to prevent uncontrolled states caused by partial power interruptions. In the event of a voltage interruption, an extended reset pulse is generated, which returns the control system to a defined initial state and prevents erroneous restarts. The re-energizing delay is adjustable in the range of 0.2 to 2 seconds, allowing the reset time to be adapted to the requirements of the specific installation.

Applications
This relay is designed for monitoring 3-phase networks with neutral conductor (3/N AC 400/230 V). It can also be connected in single-phase mode, in which case terminals L1, L2, and L3 must be bridged. Applications include installation and industrial distributors according to DIN 43880, where the IL 9079 form factor has a width of 35 mm and a depth of 59 mm. The devices are specified according to IEC/EN 60255-1 and are suitable for industrial environments where reliable network monitoring is required.

Functions and Features in Detail
The device features 2 changeover contacts as output contacts, which drop out in the event of a fault. Network interruptions are detected if lasting longer than 20 ms at a drop-out value of 0.8 Un. The green LED lights up in normal operation and turns off in the event of a fault, providing visual status indication. The relay operates on the stand-by current principle, meaning the output relay is not activated in the event of a fault. Phase sequence is arbitrary, and measurements are taken against the neutral conductor (N). For devices without an N connection, voltage is measured between L1 and L2 against L3.

Technology Explained Simply
The voltage of each of the three phase conductors is measured against the neutral conductor. If at least one phase drops below the drop-out value (here 0.8 Un), the relay switches off, the LED turns off, and the output contacts open. The relay only re-activates after all three phases are again above the pickup value (0.85 Un), following an adjustable delay of 0.2 to 2 seconds. This time delay ensures that all control components are reset synchronously. The hysteresis is 4 %, ensuring stable switching behavior. The input power consumption is approximately 8 VA, and the input resistances are approximately 150 kΩ.

Compatibility and Accessories
The relay is designed for networks with a neutral conductor and can also be used in single-phase installations. It is available in the IL 9079 form factor, designed for installation distributors according to DIN 43880. The connection terminals are located at the bottom, and the width is 35 mm. The devices are designed for a rated frequency of 50/60 Hz and can be continuously loaded with 1.1 times the rated voltage. CCC certification is included.

Mounting and Installation
Mounting is performed in standard installation distributors with 35 mm width. The terminals are located at the bottom, which facilitates integration into existing control systems. The connection designations are L1, L2, L3, and N for power supply, and 11, 12, 14, and 21, 22, 24 for output contacts. In single-phase operation, terminals L1, L2, and L3 must be connected together.

Operational Advantages
The adjustable re-energizing delay allows precise adaptation to control system requirements. The visual indication via the green LED simplifies fault diagnosis. The stand-by current principle ensures that no unwanted energy transfer occurs in the event of a fault. The devices are designed for high operational reliability in industrial installations and support preventive maintenance through early detection of network disturbances.

Technical data
1- / 3-phase1, 3
Auxiliary voltageWithout
Enclosure designDistribution board
Nominal voltage max.3/N AC 400 / 230 V
Output contacts2 C/O contacts
Width35 mm
TypeIL 9079
Variant
Contact equipping2 changeover contacts
Nominal voltage3AC 230 / 400 V
Operate delay0,2 - 2 s
Reset value0,8 Un
Approvals and MarkingsCCC
VariantFor 3p4w systems. Fixed response value


Product data sheet
Datasheet for Dold 0047561, EAN: 4030641475611
