Dold 0047525 IL8805.03 AC 50 Hz 230 V remote switch

Your rating:
Average rating
product review for Dold 0047525 IL8805.03 AC 50 Hz 230 V remote switch
( 4.6 / 5 ) 7 ratings

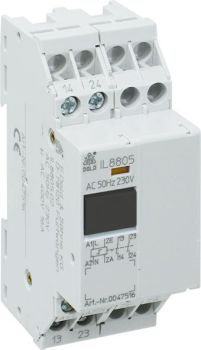

Dold 0047525
This image may differ from the desired article.
151,35 EUR
( 180,11 EUR incl. VAT )
≈ £126.68  |  ≈ $166.33
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0047525 IL8805.03 AC 50 Hz 230 V remote switch
Datasheet:file_download Download
Lieske Part No.:856531
Mfg Part No: 0047525
UPC/EAN: 4030641475253
Weight:0.165 kg
Type:IL8805.03AC50HZ230V
Graduated prices net
From piecesPrice per pieces
5149,08 EUR
10146,81 EUR
15144,54 EUR
20142,27 EUR

Product information for Dold 0047525:

The Dold IL8805.03AC50HZ230V is a remote switch for central switching of multiple consumer groups in industrial and commercial installations. The device serves as a power impulse switch and enables control of loads via room switches (RT) and central switches (ZE/ZA). It is designed for use in electrical installations where a central switching function via multiple switches is required, for example in office buildings, production halls or lighting systems. The width is 35 mm, enabling mounting on a standard DIN rail (DIN rail). The contact configuration includes 3 NO contacts, with a maximum contact configuration of up to 4 changeover contacts possible, depending on the selected variant. The rated voltage is AC 230 V, and the rated frequency is 50 Hz (±5 %). The thermal current Ith is 16 A, defining the maximum load capacity of the device.

Applications

The remote switch is intended for applications where multiple room switches are connected to a central switch to control a common load. This includes, for example, central control of lighting systems, heating systems or other electrical consumers. The impulse control enables efficient and energy-saving operation, as the device only consumes power for a short time to switch the contact. The switching position indicator allows visual verification of the switching state. The maximum neon lamp load is 4 mA, enabling status indication via room switches or central switches.

Functions and Equipment in Detail

The device operates in impulse mode, minimizing energy consumption. The response time is less than 30 ms, ensuring a rapid reaction to actuation signals. The minimum switching time is more than 50 ms to ensure reliable switching function. The contacts are rated for a load of up to 2000 W incandescent lamps or 20 fluorescent lamps (each 58 W) per contact, with a duo switching (series-compensated) configuration allowing up to 40 lamps per contact. The electrical life is 50,000 switching operations, and the mechanical life is 200,000 switching operations. The permissible switching frequency is 1000 switching operations per hour. The rated switching capacity is 16 A at a power factor of 1 to 0.7 and a voltage of AC 230 V.

Technology Explained Simply

The remote switch is powered via a control signal (A1) and the neutral conductor (A2). Operation is performed via room switches (RT) or central switches (ZE/ZA). The contacts switch the load (13/14, 23/24, etc.) according to actuation. The switching position indicator shows the current state. The impulse control ensures that the device only draws power briefly to switch the contact, reducing energy consumption. The operating temperature range is from -20 °C to +45 °C, and the storage temperature range is from -25 °C to +55 °C. The operating altitude is limited to below 2000 m. The enclosure protection rating is IP 30, and the terminals are IP 30, providing protection against contact and minor contamination. The enclosure is made of thermoplastic with V0 behaviour according to UL Subj. 94, indicating a high flame retardant class.

Compatibility and Accessories

The remote switch is compatible with room switches (RT) and central switches (ZE/ZA) and can be integrated into existing switching systems. The connection terminals comply with EN 50000 standards. The devices are manufactured according to IEC/EN 60 669, ensuring compliance with European standards for control devices and switches. EMC requirements are met according to IEC/EN 61000-4-2 to -4-6, including immunity to electrostatic discharge, high-frequency radiation, fast transients and surge voltages. Radio frequency interference suppression complies with Class B limits according to EN 55011.

Mounting and Installation

Mounting is on a DIN rail (35 mm width). The terminals are designed for connection to wires, with a maximum fuse rating of 16 A gG/gL. Installation requires correct wiring of the control signals (A1, A2) and load connections (13/14, 23/24, etc.). The switching position indicator must be positioned to be visible for checking the operating state. Vibration resistance is tested according to IEC/EN 60068-2-6 with an amplitude of 0.35 mm and frequencies from 10 to 55 Hz.

Advantages in Operation

The remote switch provides central control for multiple consumer groups, reducing wiring effort. The impulse control ensures low energy consumption. The switching position indicator enables easy verification of the operating state. The high service life and robust construction ensure reliable performance in industrial environments. Compatibility with existing switching systems and room switches facilitates integration into existing systems. Compliance with the IEC/EN 60 669 standard ensures the quality and safety of the device.

Technical data
Output contacts max.4 C/O contacts
Thermal current Ith16 A
Width35 mm
TypeIL 8805
For top hat rail mountingYes
Variant
Contact equipping3 NO contacts
Nominal voltageAC 230 V


Product data sheet
Datasheet for Dold 0047525, EAN: 4030641475253

Questions & answers

What is the delivery time of Dold 0047525 IL8805.03 AC 50 Hz 230 V remote switch ?

The article Dold 0047525 IL8805.03 AC 50 Hz 230 V remote switch is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0047525 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0047525 IL8805.03 AC 50 Hz 230 V remote switch always at the best possible price. We can give you a discount of 2% on Dold 0047525 IL8805.03 AC 50 Hz 230 V remote switch if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Dold 0047525 IL8805.03 AC 50 Hz 230 V remote switch we can offer you a price of 149,08 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
