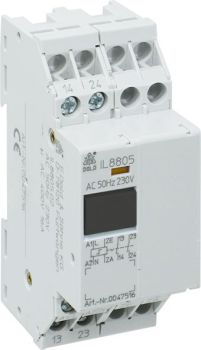

Dold 0047516 IL8805.02 AC 50 Hz 230 V remote switch

Your rating:
Average rating
product review for Dold 0047516 IL8805.02 AC 50 Hz 230 V remote switch
( 4.4 / 5 ) 5 ratings
Dold 0047516
This image may differ from the desired article.
148,67 EUR
( 176,92 EUR incl. VAT )
≈ £124.44  |  ≈ $163.39
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0047516 IL8805.02 AC 50 Hz 230 V remote switch
Datasheet:file_download Download
Lieske Part No.:216836
Mfg Part No: 0047516
UPC/EAN: 4030641475161
Weight:0.165 kg
Type:IL8805.02AC50HZ230V
Graduated prices net
From piecesPrice per pieces
5143,09 EUR
10137,52 EUR
15131,94 EUR
20126,37 EUR

Product information for Dold 0047516:

The remote switch from manufacturer Dold, type IL8805.02AC50HZ230V, is a power impulse switch for central switching on and off of multiple consumer groups in industrial and commercial installations. It serves as a remote switch within central switching systems, where multiple room switches (RT) control switching operations via a central device. Operation is performed via a central switch (ZE/ZA), with the switching position visually indicated by a switch position indicator. The device operates in impulse mode, which keeps energy consumption low and reduces wiring effort in installations with multiple room switches.

Applications

The remote switch is designed for use in electrical installations requiring central control of consumers such as lighting, heating, or machines. It is particularly suitable for installations with multiple room switches, as it simplifies wiring and enables control from a central point. The application is for indoor use, as the housing has protection class IP 30, protecting against contact with moving parts and against solid foreign objects larger than 2.5 mm. The terminals are protected to IP 20, protecting against finger contact and against solid foreign objects larger than 12.5 mm.

Functions and Equipment in Detail

The device features a contact configuration with 2 normally open contacts (NO contacts), suitable for controlling loads such as incandescent lamps or fluorescent lamps. The maximum contact configuration allows up to 4 changeover contacts (C/O contacts), with the exact configuration varying by type. The rated voltage is AC 230 V, and the rated frequency is 50 Hz (also 60 Hz possible). The response time is under 30 ms, ensuring a rapid reaction to actuation. The minimum on-time is more than 50 ms to ensure reliable switching function.

Technology Explained Simply

The remote switch operates in impulse mode, meaning it draws current only for a short time to actuate the contacts. This reduces energy consumption and enables a longer service life. The rated consumption is 11 W (impulse power), which is considered low for such a control unit. The electrical service life is 50,000 switching operations, and the mechanical service life is 200,000 switching operations, indicating high durability. The permissible switching frequency is 1000 switching operations per hour. The device is designed for an operating temperature of -20 °C to +45 °C and can be used up to an altitude of 2000 m above sea level.

Compatibility and Accessories

The remote switch is designed for mounting on a DIN rail (hut rail), enabling easy installation in enclosures. The width is 35 mm, which is standard in the electrical industry. The neon lamp load is up to 4 mA, with up to 8 neon lamps (each 0.5 mA) operable via room switches and up to 5 neon lamps (each 0.5 mA) via central switches. The switching capacity under lamp load is 2000 W for incandescent lamps and 20 fluorescent lamps (each 58 W) per contact, with 2 x 20 lamps per contact possible in dual switching (series-compensated). For high inrush currents, as occur in parallel connections or with electronic ballasts, the use of circuit breakers is recommended.

Mounting and Installation

Mounting is done via the DIN rail, with terminal designations A1 (control signal L or DC+), A2 (neutral conductor N), ZE (central switch ON), ZA (central switch OFF), and load connections (13/14, 23/24, etc.) clearly defined. The terminals are designed for secure connections, and the switch position indicator allows visual monitoring of the position. Installation is carried out in electrical enclosures or distributions, taking into account ambient temperature and operating altitude.

Advantages in Operation

The remote switch offers reduced wiring when multiple room switches are used, as only one central device is required. The impulse control ensures low energy consumption and high service life. The switch position indicator enables quick fault diagnosis, and DIN rail mounting simplifies installation. The device complies with the standard IEC/EN 60 669, confirming compliance with safety and functional requirements for control devices. The short-circuit withstand capability is ensured with a maximum fuse rating of 16 A gG/gL according to IEC/EN 60947-5-1. The housing is made of thermoplastic with V0 behavior according to UL Subj. 94, indicating a high flame retardant class.

Technical data
Output contacts max.4 C/O contacts
Thermal current Ith16 A
Width35 mm
TypeIL 8805
For top hat rail mountingYes
Variant
Contact equipping2 NO contacts
Nominal voltageAC 230 V


Product data sheet
Datasheet for Dold 0047516, EAN: 4030641475161
