Dold 0047074 IL9071.12/010 3/N AC400/230V 0.85UN under-voltage relay

Your rating:
Average rating
product review for Dold 0047074 IL9071.12/010 3/N AC400/230V 0.85UN under-voltage relay
( 4.4 / 5 ) 24 ratings

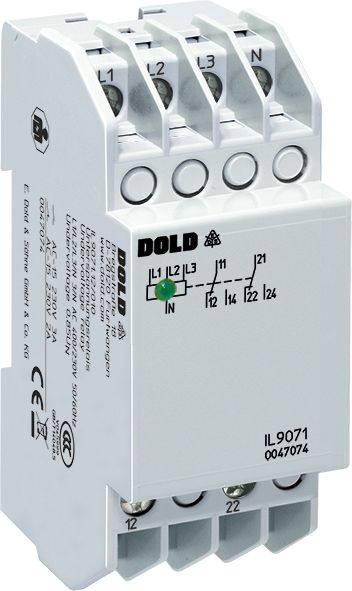

Dold 0047074
This image may differ from the desired article.
Dold 0047074Dold 0047074
253,15 EUR
( 301,25 EUR incl. VAT )
≈ £211.89  |  ≈ $278.21
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0047074 IL9071.12/010 3/N AC400/230V 0.85UN under-voltage relay
Datasheet:file_download Download
Lieske Part No.:419157
Mfg Part No: 0047074
UPC/EAN: 4030641470746
Weight:0.134 kg
Type:IL9071.12/0103/NAC400/230V0,85UN
Graduated prices net
From piecesPrice per pieces
4243,66 EUR
8234,16 EUR
12224,67 EUR
16215,18 EUR

Product information for Dold 0047074:

The Dold undervoltage relay IL9071.12/0103/NAC400/230V0,85UN is an electronic monitoring device for alternating current and three-phase power networks. It is designed for continuous monitoring of voltage levels, phase relationships, and the condition of the neutral conductor in single-phase and three-phase systems. The device is intended for use in installation and industrial distribution boxes and complies with the standard IEC/EN 60255-1. It detects undervoltage, phase failure, asymmetry even during reverse voltage, as well as missing neutral conductor in the installation.

Applications
This relay is suitable for use in industrial and commercial facilities, particularly in systems where high operational safety and availability are required. It is used to prevent damage to consumers caused by unexpected voltage fluctuations or missing neutral conductors. Applications also include the activation of safety lighting in accordance with DIN VDE 0108. In three-phase systems with a neutral conductor, where single-phase consumers are also connected, a broken neutral conductor can lead to dangerous voltage imbalances. The IL9071 detects such conditions and enables immediate disconnection of the installation.

Functions and Equipment in Detail
The device features 2 changeover contacts as output contacts, which are sufficient to activate safety functions such as disconnection or warning signals. The contact materials consist of AgNi, ensuring high switching life and reliability. The switching voltage is AC 250 V, and the device is rated for a thermal current of 4 A. The switching capacity according to AC 15 (IEC/EN 60947-5-1) is 3 A / AC 230 V for closing contacts and 2 A / AC 230 V for opening contacts. The electrical life at 1 A and AC 230 V is 500,000 switching cycles. The LED indicator signals the operating status: green illumination indicates a fault-free network, with contacts 11-14 and 21-24 closed.

Technology Explained Simply
The relay operates on the standby current principle, where the output relay is not activated in the event of a fault, but remains de-energized in the normal state. This increases safety, as no additional energy transfer occurs during a fault. The pickup value is set at 0.85 Un, meaning the device responds when the voltage drops below 85% of the nominal voltage. The hysteresis is approximately 4%, preventing the device from switching uncontrollably due to minor fluctuations around the pickup value. Asymmetry detection occurs at approximately 5 to 10% phase asymmetry, enabling detection of uneven loading. Neutral conductor monitoring detects breaks in the neutral conductor of the installation or device supply, as well as swapping of neutral conductor and phase in three-phase networks.

Compatibility and Accessories
The device is suitable for both single-phase and three-phase connections. In single-phase operation, terminals L1, L2, and L3 must be bridged. The nominal voltage is 3/N AC 400 / 230 V, with a maximum nominal voltage of 3/N AC 500 / 290 V. The frequency range is between 45 and 65 Hz, with a nominal frequency of 50/60 Hz. The input current consumption is approximately 1.5 mA at L1-N and L2-N, and approximately 25 mA at L3-N. The voltage range for monitoring is between 0.7 and 1.1 Un. The overload capacity is AC 440 V at all measurement inputs for at least 1 hour.

Mounting and Installation
The device is designed in the IL 9071 form factor, with a width of 35 mm and a depth of 61 mm. The connection terminals are located at the bottom and are designed for installation and industrial distribution boards according to DIN 43880. Mounting is carried out in standard distribution boxes, with terminals connected directly to the network lines. The device indicator (LED) allows visual inspection of the operating status. Phase sequence is arbitrary, providing flexible installation.

Advantages in Operation
Early detection of impending failures and the possibility of preventive maintenance increase operational safety. Avoiding damage to consumers caused by overvoltage or undervoltage leads to higher availability of the installation. Simple installation without auxiliary voltage and clear indication of the operating status reduce maintenance effort. The device is also available for medical rooms, with the appropriate version complying with DIN VDE 0100-710. The safe separation between the measurement circuit and contacts according to IEC/EN 61140 and IEC/EN 60947-1 ensures a high level of protection.

The device is certified with CCC, confirming compliance with applicable safety and quality requirements. The width of 35 mm allows compact mounting in standard distribution boxes. The IL 9071 form factor is specifically designed for installation and industrial distribution boards, enabling universal use in various application areas.

Technical data
1- / 3-phase1, 3
Auxiliary voltageWithout
Enclosure designDistribution board
Nominal voltage max.3/N AC 500 / 290 V
Output contacts2 C/O contacts
Width35 mm
TypeIL 9071
Operate delayYes
Variant
Contact equipping2 changeover contacts
Nominal voltage3/N AC 400 / 230 V
Response value0,85 Un
Time delaywithout
Approvals and MarkingsCCC
VariantWith neutral connection. With asymmetry detection. With neutral conductor monitoring. Without time delay


Product data sheet
Datasheet for Dold 0047074, EAN: 4030641470746

Questions & answers

What is the delivery time of Dold 0047074 IL9071.12/010 3/N AC400/230V 0.85UN under-voltage relay ?

The article Dold 0047074 IL9071.12/010 3/N AC400/230V 0.85UN under-voltage relay is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0047074 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0047074 IL9071.12/010 3/N AC400/230V 0.85UN under-voltage relay always at the best possible price. We can give you a discount of 2% on Dold 0047074 IL9071.12/010 3/N AC400/230V 0.85UN under-voltage relay if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Dold 0047074 IL9071.12/010 3/N AC400/230V 0.85UN under-voltage relay we can offer you a price of 243,66 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
