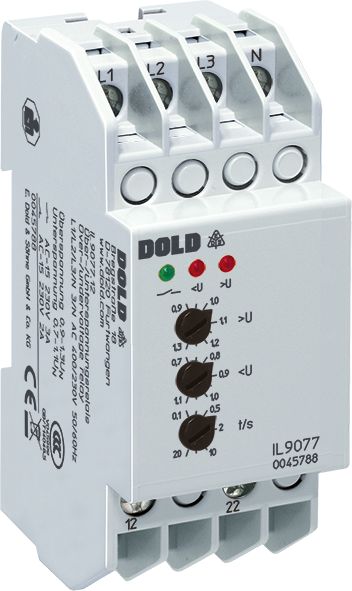

Dold 0046517 IL9077.12/010 3/N AC400/230V 1-20S under-/overvoltage relay with asymmetric characteristic

Your rating:
Average rating
product review for Dold 0046517 IL9077.12/010 3/N AC400/230V 1-20S under-/overvoltage relay with asymmetric characteristic
( 4.5 / 5 ) 24 ratings
Dold 0046517
This image may differ from the desired article.
276,25 EUR
( 328,74 EUR incl. VAT )
≈ £231.22  |  ≈ $303.60
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0046517 IL9077.12/010 3/N AC400/230V 1-20S under-/overvoltage relay with asymmetric characteristic
Datasheet:file_download Download
Lieske Part No.:1312738
Mfg Part No: 0046517
UPC/EAN: 4030641465179
Weight:0.123 kg
Type:IL9077.12/010 3/N AC400/230V ,1-20S
Graduated prices net
From piecesPrice per pieces
4265,89 EUR
8255,53 EUR
12245,17 EUR
16234,81 EUR

Product information for Dold 0046517:

The Dold IL9077.12/010 is an under- and overvoltage relay for monitoring alternating current and three-phase power networks. It is designed for use in industrial and installation distributors and is used, for example, to monitor self-generation systems in accordance with VDE 0100. The device operates on the standby current principle and requires no auxiliary voltage, enabling it to function independently of external power supply. It is designed for a rated voltage of 3/N AC 400/230 V and can be used in both single-phase and three-phase systems. The width is 35 mm, making it suitable for standard installation distributors.

Applications
This relay is used in installations where stable network voltage is critical, such as in industrial production facilities, buildings with self-generated power, or installations connected to the public power grid. It monitors voltage in all three phases against the neutral conductor (N). For devices without an N connection, measurement is performed between L1 and L2 against L3. The function is independent of phase sequence, allowing flexible installation. Monitoring is carried out in the range of 0.7 to 1.1 times rated voltage for undervoltage and 0.9 to 1.3 times rated voltage for overvoltage.

Functions and Equipment in Detail
The device features 2 changeover contacts as output contacts, which drop out in the event of a fault. The time delay is adjustable between 0.1 and 20 seconds, allowing short-term voltage fluctuations to be ignored. Upon detection of a fault — whether undervoltage, overvoltage, or voltage asymmetry — the relay drops out, and the green LED indicating normal operation turns off. Two red LEDs indicate the specific fault cause: one for undervoltage ("<U") and one for overvoltage (">U"). The device returns to normal operation only when all voltages are again within the set limits, with a hysteresis of approximately 4 % of the set value to prevent chatter.

Technology Explained Simply
The relay operates on the standby current principle, meaning the output relay is energized during normal operation and drops out in the event of a fault. This is particularly advantageous as it requires no additional auxiliary voltage. Asymmetry detection is activated in this variant, enabling the device to also detect uneven voltage distribution between phases. If voltage asymmetry exceeds approximately 5 to 10 %, even if all voltages are within the permissible range, a fault is triggered. This is useful, for example, to immediately detect the regeneration of a failed phase via backfeeding.

Compatibility and Accessories
The device is designed for use in installation distributors in accordance with DIN 43880 and features bottom-mounted connection terminals. It is available in the I form factor with a depth of 59 mm. The IL9077.12/010 variant includes a neutral conductor connection and asymmetry detection. It is also available in a version without N connection and with phase sequence detection, although this is not part of the variant described here. The product family also includes models with separate output relays for under- and overvoltage (e.g. IP/SP 9077.39), but this is not part of this variant.

Mounting and Installation
Mounting is performed in standard installation distributors with a width of 35 mm. The connection terminals are located at the bottom, enabling easy integration into existing switchgear. The setting of trigger values and time delay is done via rotary controls on the device. The LED indicators facilitate direct diagnosis of network faults at the device.

Operational Advantages
Thanks to the separate adjustability of undervoltage and overvoltage thresholds, as well as the adjustable time delay, the device can be optimally adapted to the specific requirements of each installation. The integrated network fault diagnosis via multiple LEDs enables quick fault localization. The ability to operate in single-phase mode extends the range of applications. Certification according to IEC/EN 60255-1 ensures compliance with international standards for electrical measuring instruments. CCC certification is also available, enabling use in corresponding markets.

Technical data
1- / 3-phase1, 3
Auxiliary voltageWithout
Enclosure designDistribution board
Measuring range max.500 V
Output contacts2 C/O contacts
Standard measuring range3/N AC 400/230 V
Width35 mm
TypeIL 9077
Operate delayYes
Variant
Contact equipping2 changeover contacts
Nominal voltage3/N AC 400/230 V
Time delay0,1 - 20 s
Approvals and MarkingsCCC
VariantWith neutral connection. De-energized on trip. With asymmetry detection


Product data sheet
Datasheet for Dold 0046517, EAN: 4030641465179

Questions & answers

What is the delivery time of Dold 0046517 IL9077.12/010 3/N AC400/230V 1-20S under-/overvoltage relay with asymmetric characteristic ?

The article Dold 0046517 IL9077.12/010 3/N AC400/230V 1-20S under-/overvoltage relay with asymmetric characteristic is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0046517 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0046517 IL9077.12/010 3/N AC400/230V 1-20S under-/overvoltage relay with asymmetric characteristic always at the best possible price. We can give you a discount of 2% on Dold 0046517 IL9077.12/010 3/N AC400/230V 1-20S under-/overvoltage relay with asymmetric characteristic if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Dold 0046517 IL9077.12/010 3/N AC400/230V 1-20S under-/overvoltage relay with asymmetric characteristic we can offer you a price of 265,89 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
