Dold 0045788 IL9077.123/NAC400/230V0,1-20S under-voltage/over-voltage relay

Your rating:
Average rating
product review for Dold 0045788 IL9077.123/NAC400/230V0,1-20S under-voltage/over-voltage relay
( 4.5 / 5 ) 11 ratings
Dold 0045788
This image may differ from the desired article.

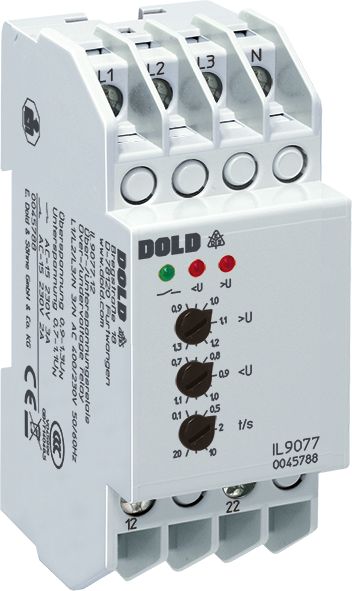

Dold 0045788Dold 0045788
276,25 EUR
( 328,74 EUR incl. VAT )
≈ £231.22  |  ≈ $303.60
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0045788 IL9077.123/NAC400/230V0,1-20S under-voltage/over-voltage relay
Datasheet:file_download Download
Lieske Part No.:838470
Mfg Part No: 0045788
UPC/EAN: 4030641457884
Weight:0.122 kg
Type:IL9077.123/NAC400/230V0,1-20S
Graduated prices net
From piecesPrice per pieces
4265,89 EUR
8255,53 EUR
12245,17 EUR
16234,81 EUR

Product information for Dold 0045788:

The Dold IL9077.123/NAC400/230V0,1-20S is an undervoltage/overvoltage relay for monitoring AC and three-phase power networks. It is used for continuous checking of network voltage for deviations from specified limit values, particularly to ensure operational safety of self-generation systems in accordance with VDE 0100. The device operates on the standby current principle and requires no auxiliary voltage, enabling it to function independently of external power supply. It is designed for use in installation distributors and features a mounting width of 35 mm, making it suitable for standard distribution boxes.

Applications
This relay is used in industrial and commercial installations where stable network voltage is critical for the operation of machines, drives, or energy generation systems. It monitors both single-phase and three-phase networks and is designed for nominal voltages of 3/N AC 400/230 V. Applications include monitoring photovoltaic systems, wind turbines, or emergency power generators, where sudden voltage drops or surges can cause damage. The measurement range limit is up to 500 V, making it suitable for higher voltages up to 500 V.

Functions and Features in Detail
The device detects overvoltage, undervoltage, and phase failure and responds with an output relay equipped with 2 changeover contacts. The trigger values for overvoltage (0.9 to 1.3 times nominal voltage) and undervoltage (0.7 to 1.1 times nominal voltage) are individually adjustable, allowing flexible adaptation to different requirements. The time delay is adjustable between 0.1 and 20 seconds, filtering out short-term voltage fluctuations and only signaling persistent faults. When a fault is detected, the relay drops out and the green LED indicating normal operation turns off. Two red LEDs indicate the fault cause: “<U” for undervoltage and “>U” for overvoltage.

Technology Explained Simply
The relay measures the voltage of individual phases against the neutral conductor (N). For devices without an N connection, L1 and L2 are measured against L3. In normal operation, the green LED lights up and the output relay is energized. If a phase exceeds the set overvoltage threshold or falls below the undervoltage threshold, the relay is de-energized after the set delay time. Return to normal operation occurs only when all phases are within the tolerated voltage ranges. A hysteresis of approximately 4 % of the set value prevents switching operations during slight voltage fluctuations.

Compatibility and Accessories
The device is suitable for single-phase and three-phase networks and can be operated regardless of phase sequence. It is available in I-form, featuring a mounting depth of 59 mm and bottom-mounted connection terminals for installation and industrial distributors in accordance with DIN 43880. This variant includes a neutral conductor connection. Additional versions with asymmetry or phase sequence detection are optionally available, but are not part of this specific variant.

Mounting and Installation
Mounting is carried out in standard installation distributors with a mounting width of 35 mm. The connection terminals are located at the bottom, facilitating integration into existing distribution boxes. The devices are designed for use in enclosures with mounting plates and cable ducts. Installation requires no additional tools, as the device operates independently and does not require auxiliary voltage.

Operational Advantages
Thanks to the separate adjustability of trigger values for overvoltage and undervoltage, as well as the adjustable delay time, the device can be precisely adapted to the specific requirements of the installation. The visual fault indication via LEDs enables quick diagnosis of network faults. The standby current principle ensures high reliability, as the device continues to function even if the auxiliary voltage fails. Compliance with the standard IEC/EN 60255-1 ensures electrical safety and reliability of the device. The CCC certification confirms conformity with applicable safety requirements.

Technical data
1- / 3-phase1, 3
Auxiliary voltageWithout
Enclosure designDistribution board
Measuring range max.500 V
Output contacts2 C/O contacts
Standard measuring range3/N AC 400/230 V
Width35 mm
TypeIL 9077
Operate delayYes
Variant
Contact equipping2 changeover contacts
Nominal voltage3/N AC 400/230 V
Time delay0,1 - 20 s
Approvals and MarkingsCCC
VariantWith N. NC circuit operation


Product data sheet
Datasheet for Dold 0045788, EAN: 4030641457884

Questions & answers

What is the delivery time of Dold 0045788 IL9077.123/NAC400/230V0,1-20S under-voltage/over-voltage relay ?

The article Dold 0045788 IL9077.123/NAC400/230V0,1-20S under-voltage/over-voltage relay is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0045788 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0045788 IL9077.123/NAC400/230V0,1-20S under-voltage/over-voltage relay always at the best possible price. We can give you a discount of 2% on Dold 0045788 IL9077.123/NAC400/230V0,1-20S under-voltage/over-voltage relay if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Dold 0045788 IL9077.123/NAC400/230V0,1-20S under-voltage/over-voltage relay we can offer you a price of 265,89 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
