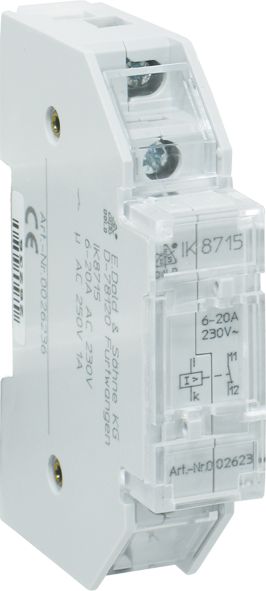

Dold 0045715 IK8715/003 6-40A load shedding relay

Your rating:
Average rating
product review for Dold 0045715 IK8715/003 6-40A load shedding relay
( 4.3 / 5 ) 9 ratings
Dold 0045715
This image may differ from the desired article.
72,90 EUR
( 86,75 EUR incl. VAT )
≈ £61.02  |  ≈ $80.12
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0045715 IK8715/003 6-40A load shedding relay
Datasheet:file_download Download
Lieske Part No.:1312970
Mfg Part No: 0045715
UPC/EAN: 4030641457150
Weight:0.123 kg
Type:IK8715/003 6-40A
Graduated prices net
From piecesPrice per pieces
670,17 EUR
1267,43 EUR
2464,70 EUR
3661,97 EUR

Product information for Dold 0045715:

The load shedding relay IK8715/003 6-40A from Dold is a device specifically developed for electronic instantaneous water heaters, designed for load control in electrical installation systems. It serves to prevent overloads in wiring that is not designed for the simultaneous operation of two large consumers. Typically, it is used in residential installations where, for example, an electric storage heater is installed alongside an instantaneous water heater for hot water supply. The relay allows the electrical connection to be dimensioned not for the maximum total consumption, thereby reducing the required cable cross-sections and potentially lowering the connection fee according to BTO §6 paragraph 4. When the short-term operated consumer (e.g. instantaneous water heater) is switched on, the relay automatically switches off the long-term operated consumers (e.g. night storage heater).

Applications
This device is primarily intended for installation in residential and small residential buildings where the power supply is limited for multiple large consumers. It is used to safely enable power supply for short-term high-power devices such as electronic instantaneous water heaters, without requiring the entire installation to be dimensioned for maximum load. The application is in individual installations where the cable cross-sections are insufficient to operate two large consumers simultaneously.

Functions and Equipment in Detail
The load shedding relay IK8715/003 features a rated current range of 6 to 40 A, with the pickup current threshold set at 6 A. It is equipped with one normally closed contact (1 NC contact) responsible for load shedding. The contacts are rated for a nominal switching capacity of 1 A at AC 230 V. The permissible switching frequency is 1800 switching operations per hour, ensuring high operational reliability during frequent use. The mechanical life expectancy is 50,000 switching operations. The device is designed for continuous operation and can be used at operating temperatures from -20 °C to +40 °C.

Technology Explained Simply
The relay monitors power consumption via a current measurement input (terminals i, k). When the current reaches the pickup value of 6 A, the normally closed contact (11-12) opens, switching off the long-term operated consumer (e.g. storage heater). This enables the short-term operation of the second consumer (e.g. instantaneous water heater) without overloading the wiring. Power supply is provided via the coil, connected using terminal blocks for conductor cross-sections up to 10 mm². The contacts are designed for 2 x 2.5 mm² solid or 2 x 1.5 mm² stranded wire with ferrules (DIN 46228-1/-2/-3/-4). The tightening torque is 1.2 Nm.

Compatibility and Accessories
The device is manufactured in accordance with IEC/EN 60669 and complies with standards for electrical switching devices. It is designed for mounting on a DIN rail (IEC/EN 60715), enabling quick and secure installation in enclosures. The width is 17.5 mm. The maximum permissible voltage for measurement and output circuits is AC 300 V. The enclosure protection rating is IP 40, and the terminals are IP 40. The enclosure is made of thermoplastic with V0 flammability rating according to UL Subject 94. The terminals are high-torque and non-loosening, and the terminal cover is sealable.

Mounting and Installation
Mounting is done on a DIN rail, with terminals provided for connecting the wiring. The coil terminals are rated for conductor cross-sections up to 10 mm², and the contact terminals for 2 x 2.5 mm² solid or 2 x 1.5 mm² stranded wire with ferrules. The tightening torque is set at 1.2 Nm. Installation follows the connection example in the datasheet, with current measurement via terminals i and k. Contacts 11 and 12 switch off the load.

Operational Advantages
Using the IK8715/003 allows reduction of the required cable cross-section dimensioning, leading to cost savings during installation. The connection fee is reduced as the maximum available power is lowered. The device is designed for continuous operation and offers high operational reliability due to its high mechanical life expectancy and permissible switching frequency. The sealable terminal cover and non-loosening terminal screws increase safety and prevent unauthorized tampering.

Technical data
Output contacts max.1 NC contact
Width17,5 mm
TypeIK 8715
For top hat rail mountingYes
Variant
Rated current range6 - 40 A
VariantSpecial version for electronic flow heater


Product data sheet
Datasheet for Dold 0045715, EAN: 4030641457150
