Dold 0045453 BD5935.48 AC 50/60Hz 230V emergency stop module

Your rating:
Average rating
product review for Dold 0045453 BD5935.48 AC 50/60Hz 230V emergency stop module
( 4.5 / 5 ) 13 ratings

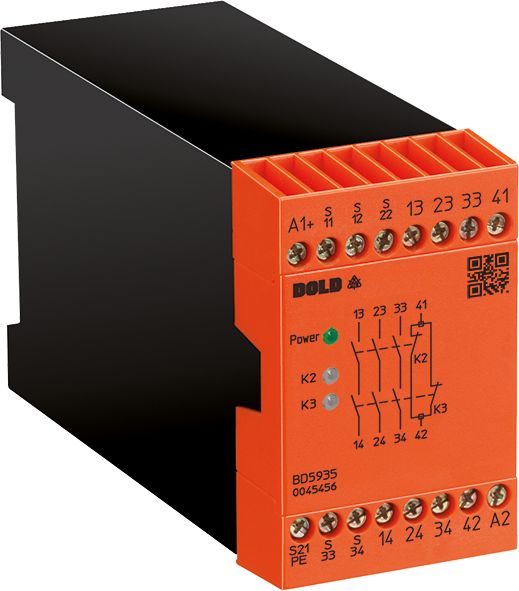

Dold 0045453
This image may differ from the desired article.
Dold 0045453Dold 0045453
406,57 EUR
( 483,82 EUR incl. VAT )
≈ £340.30  |  ≈ $446.82
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0045453 BD5935.48 AC 50/60Hz 230V emergency stop module
Datasheet:file_download Download
Lieske Part No.:339521
Mfg Part No: 0045453
UPC/EAN: 4030641454531
Weight:0.475 kg
Type:BD5935.48AC50/60HZ230V
Graduated prices net
From piecesPrice per pieces
4400,47 EUR
8394,37 EUR
12388,27 EUR
16382,18 EUR

Product information for Dold 0045453:

The Dold safety relay BD5935.48AC50/60HZ230V is a not-out module for use in safety-oriented systems. It is designed for the safe interruption of circuits, particularly in conjunction with emergency stop buttons and safety doors, to protect personnel and machinery. The device is designed for industrial environments and meets the requirements for safety functions according to international standards. It features a width of 45 mm, making it suitable for standard control panels, and is equipped with removable screw terminals that enable quick replacement and easy installation.

Applications
This safety relay is specifically intended for applications in machine and plant control, where a safe response to emergency stop commands or the opening of safety doors is required. It can be used as a safety door monitor to ensure that machines cannot be operated when a safety door is open. This function is particularly relevant in the manufacturing industry, machine building, and plants with moving parts, where the risk of injury exists. Integration into existing control systems is achieved via output contacts, which can be used to control auxiliary devices, motors, or signals.

Functions and equipment in detail
The device offers a contact configuration with 3 normally closed contacts and 1 normally open contact, enabling flexible control of multiple loads. The contacts are gold-plated, ensuring reliable switching even at low loads, such as signals for PLC systems. An integrated cross-connection detection monitors the emergency stop control circuit and detects faults that may result from accidental wiring. The operating status indication is provided by LEDs for channel 1 and 2, visually displaying the status of individual channels. The device supports both single-channel and dual-channel wiring, allowing flexible use in different safety configurations.

Technology explained simply
The safety relay operates with a rated voltage of AC 230 V at 50/60 Hz and is designed for operation in industrial power networks. The maximum thermal current Ith is 10 A, which describes the maximum load capacity of the contacts. The wire short-circuit detection at the single-button ensures that accidental wiring connections are detected, enhancing safety. The removable screw terminals allow for quick maintenance and repair without having to remove the entire device. Connection options include stranded wires with 2 x 1.5 mm² or 2 x 2.5 mm², with the use of ferrules and plastic collars in accordance with DIN 46228-1/-2/-3/-4 recommended.

Compatibility and accessories
The device is designed for use in systems complying with standards EN ISO 13849-1 (Category 4, Performance Level e) and IEC/EN 62061 (SIL CL 3, SIL 3). It is therefore suitable for applications requiring high safety integrity. Certifications TÜV, UKCA, CCC as well as recognition by UL-Recognized confirm compliance with international safety standards. The devices are designed for industrial environments and can be mounted in control panels with standard width.

Mounting and installation
Mounting is done in standard control panels with a width of 45 mm. The removable screw terminals facilitate installation and maintenance. Connection cables must be routed according to the specifications in the datasheet to ensure a safe and reliable connection. The devices are intended for use in enclosed control panels, with environmental conditions meeting the technical specifications.

Advantages in operation
The integrated cross-connection detection and wire short-circuit detection increase system reliability and prevent false alarms. The LED indicators for the channels enable quick diagnosis of the operating status. The gold-plated contacts ensure long service life and reliable switching, even at low loads. The quick replaceability via removable terminals reduces downtime during maintenance. The device is therefore suitable for users requiring high safety, reliability, and ease of maintenance in their systems.

Technical data
1- / 2-channel1, 2
ApprovalsUL-Recognized
Cat. / PL acc. to EN ISO 13849-14/e
ConnectionPluggable screw terminals
Output contacts max.1 NC contact, 3 NO contacts
SIL CL acc. to IEC/EN 620613
SIL acc. to IEC/EN 620613
Thermal current Ith max.10 A
Width45 mm
TypeBD 5935
Cross fault detectionYes
Suited as safety gate monitorYes
Variant
Contact equipping3 NO contacts, 1 NC contact
Nominal voltageAC 230 V 50/60 Hz
Approvals and MarkingsTÜV, UKCA, CCC


Product data sheet
Datasheet for Dold 0045453, EAN: 4030641454531
