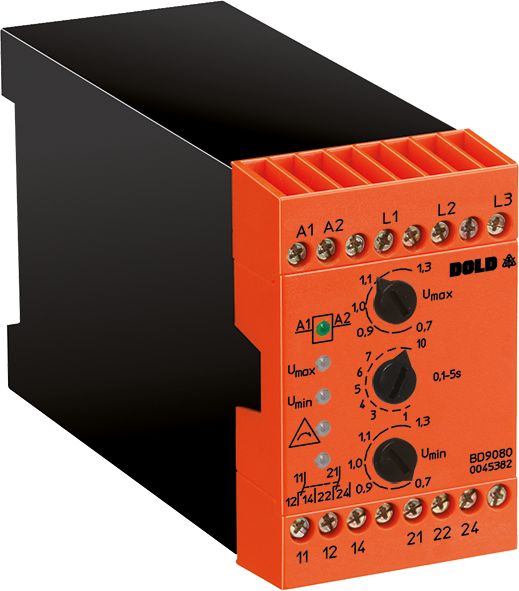

Dold 0045384 BD9080.12 3AC400V UH AC400V 0.1-5s phase monitor

Your rating:
Average rating
product review for Dold 0045384 BD9080.12 3AC400V UH AC400V 0.1-5s phase monitor
( 4.6 / 5 ) 10 ratings
Dold 0045384
This image may differ from the desired article.
399,56 EUR
( 475,48 EUR incl. VAT )
≈ £334.43  |  ≈ $439.12
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0045384 BD9080.12 3AC400V UH AC400V 0.1-5s phase monitor
Datasheet:file_download Download
Lieske Part No.:895473
Mfg Part No: 0045384
UPC/EAN: 4030641453848
Weight:0.35 kg
Type:BD9080.123AC400VUHAC400V
Graduated prices net
From piecesPrice per pieces
4384,58 EUR
8369,59 EUR
12354,61 EUR
16339,63 EUR

Product information for Dold 0045384:

The phase monitor BD9080.123AC400VUHAC400V from Dold is an industrial monitoring switch for three-phase AC power networks. It is used for continuous monitoring of voltage values, phase sequence, asymmetry, and power failure, to detect operational disturbances early and prevent damage to connected machines or systems. The device is part of the VARIMETER PRO series and operates on the rest current principle, in which the output relay is not activated in the event of a fault. The auxiliary voltage is AC 400 V, and the nominal voltage of the network to be monitored is 3AC 400 V. The width of 45 mm allows for compact installation in enclosures.

Applications
The phase monitor is suitable for use in industrial plants, such as in manufacturing, power supply, or process automation. It monitors three-phase networks with a nominal voltage of 3AC 400 V and can also monitor other voltages in the range of 3AC 230 V to 750 V, with precise adjustment possible between 0.7 and 1.3 times the nominal voltage. When using the auxiliary voltage from the monitored network, the adjustment range is reduced to 0.8 to 1.1 times the nominal voltage. Monitoring is independent of whether the network is operated with or without a neutral conductor.

Functions and Equipment in Detail
The device detects under- and over-voltages, asymmetries between phases, incorrect phase sequence, and power failures. The pickup delay is adjustable between 0.1 and 5 seconds, allowing adaptation to specific requirements. The reset delay is also 0.1 to 5 seconds. The output contacts consist of two changeover contacts, which can be used for signaling or controlling auxiliary devices. The contact position is indicated by an LED, as well as the auxiliary voltage, overvoltage, undervoltage, and fault conditions such as asymmetry, incorrect phase sequence, or power failure.

Technology Explained Simply
Measurement is performed by arithmetic averaging of multiple half-waves of the rectified phase voltages L1/L2 and L2/L3, with L3 serving as the reference phase. The repeatability is ≤ ±0.5 % of the nominal voltage, and the hysteresis is ≤ 5 % of the pickup value. The current consumption per phase is approximately 0.5 mA (L1, L2) and 0.8 mA (L3). The overload capacity is 1.5 times the nominal voltage for 10 seconds and up to 1000 V. The frequency ranges are 45 to 65 Hz for the monitored network and 45 to 500 Hz for the auxiliary voltage. The operating temperature ranges from -20 °C to +60 °C.

Compatibility and Accessories
The phase monitor is designed for use in enclosures and complies with the standard IEC/EN 60255-1. The auxiliary voltage can also be drawn from the monitored network, simplifying installation. The output contacts are rated for switching operations according to AC 15 (2 A / AC 230 V) and DC 13 (1 A / DC 24 V). The electrical life is 250,000 switching cycles at 1 A and AC 230 V, and the mechanical life is at least 50 million switching cycles. The maximum switching frequency is 20 switching cycles per second. Short-circuit resistance is ensured by a maximum fuse rating of 4 A gG/gL.

Mounting and Installation
The device is mounted in enclosures and requires a width of 45 mm. Connections are made via terminals: L1, L2, L3 for phase voltage, A1/A2 for auxiliary voltage, and contacts 11-12-14 and 21-22-24 for the output relays. The LED indicators enable visual monitoring of the operating status. Installation is carried out according to the technical data and instructions in the datasheet.

Advantages in Operation
Early detection of voltage anomalies, phase errors, and power failures enables preventive maintenance and reduces the likelihood of machine damage. The adjustable pickup and reset delays ensure stable response to short-term voltage fluctuations. The clear LED display simplifies fault diagnosis. The device is designed for continuous operation and offers high operational reliability in industrial environments.

Technical data
1- / 3-phase3
Enclosure designSwitch cabinet
Measuring range max.750 V
Output contacts2 C/O contacts
Standard measuring range3 AC 400 V
Width45 mm
TypeBD 9080
Operate delayYes
Variant
Auxiliary voltageAC 400 V
Contact equipping2 changeover contacts
Nominal voltage3AC 400 V
Release delay0,1 - 5 s
VariantDe-Energized on trip


Product data sheet
Datasheet for Dold 0045384, EAN: 4030641453848

Questions & answers

What is the delivery time of Dold 0045384 BD9080.12 3AC400V UH AC400V 0.1-5s phase monitor ?

The article Dold 0045384 BD9080.12 3AC400V UH AC400V 0.1-5s phase monitor is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0045384 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0045384 BD9080.12 3AC400V UH AC400V 0.1-5s phase monitor always at the best possible price. We can give you a discount of 2% on Dold 0045384 BD9080.12 3AC400V UH AC400V 0.1-5s phase monitor if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Dold 0045384 BD9080.12 3AC400V UH AC400V 0.1-5s phase monitor we can offer you a price of 384,58 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
