Dold 0045104 IP9075.12/010 AC50...400Hz 600-690V fuse monitoring

Your rating:
Average rating
product review for Dold 0045104 IP9075.12/010 AC50...400Hz 600-690V fuse monitoring
( 4.3 / 5 ) 4 ratings
Dold 0045104

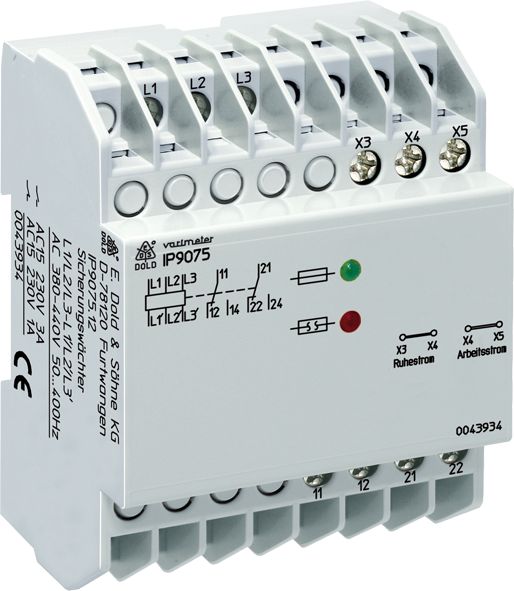

This image may differ from the desired article.
228,56 EUR
( 271,99 EUR incl. VAT )
≈ £191.30  |  ≈ $251.19
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0045104 IP9075.12/010 AC50...400Hz 600-690V fuse monitoring
Datasheet:file_download Download
Lieske Part No.:1583174
Mfg Part No: 0045104
UPC/EAN: 4030641451042
Weight:0.279 kg
Type:IP9075.12/010 AC50...400HZ 600-690V
Graduated prices net
From piecesPrice per pieces
5226,85 EUR
10225,13 EUR
15223,42 EUR
20221,70 EUR

Product information for Dold 0045104:

The fuse monitor IP9075.12/010 AC50...400HZ 600-690V from Dold is a device of the VARIMETER series for monitoring up to three fuses in three-phase networks. It enables early detection of blown fuses, even when the connected loads are switched off, thus avoiding costly damage caused by undetected fault conditions. The operational safety and high availability of the system are supported by preventive maintenance and rapid fault detection.

Applications
This fuse monitor is designed for use in industrial and installation distributors, particularly in systems with three-phase motors, where phase fuse failure monitoring is required. It is suitable for automatic disconnection and lockout of motors in case of failure of one or more fuses. The application is in networks with a nominal voltage of AC 600 to 690 V and a frequency of 50 to 400 Hz. Standard measurement ranges are 3 AC 380 to 415 V, with a maximum measurement range of 690 V.

Functions and Equipment in Detail
The device features two changeover contacts as output contacts, which are either activated (operating current principle) or not activated (rest current principle) in the event of a fault, depending on programming. This setting is programmable via terminals X3-X4 or X4-X5. Additionally, the memory behavior can be programmed via terminals X1-X2, where a bridge between X1 and X2 deactivates the memory function. The status is indicated by two LEDs: a green LED indicates intact fuses, while a red LED indicates a fuse failure.

Technology Explained Simply
The fuse monitor detects a failure by measuring the voltage before and after the fuses. The internal resistance of the measurement paths is in the megohm range (over 2000 Ohm/V), meeting the requirements for touch voltage, even if a fuse is missing or defective. The cable length for programming the operating current/rest current principle via X3, X4, X5 must not exceed 3 m. The devices are specified according to IEC/EN 60255-1, ensuring compliance with standards for electrical measuring instruments and systems.

Compatibility and Accessories
The device is suitable for all types and sizes of fuses and is independent of the network rotation direction. It is rotation-direction-independent and allows for a shorter response time than motor protection switches. The width is 70 mm, and the housing design is intended for installation distributors. The variant IP9075.12/010 is part of the IP series, designed for installation distributors according to DIN 43880.

Mounting and Installation
Mounting is carried out in installation and industrial distributors. The connection terminals are located at the bottom, facilitating integration into standard distributor constructions. The depth is 59 mm, enabling a compact installation. The devices are designed for use in three-phase networks and require no additional components for basic functionality.

Operational Advantages
Early detection of fuse failures increases system availability and prevents damage caused by undetected fault conditions. The reliability of detection is maintained even in asymmetric networks, harmonic loads, or back-feeding motors. The programmable functions allow adaptation to specific system requirements, optimizing operational safety. The LED indication facilitates visual monitoring of the fuse status.

Housing Design and Width
The housing design is intended for installation distributors, with a width of 70 mm. The devices are available in I-type construction, featuring a depth of 59 mm and bottom-mounted connection terminals. This design is suitable for installation and industrial distributors according to DIN 43880.

Programmable Functions
The operating current and rest current principles, as well as the memory behavior, are programmable. Selection is made via terminals X3-X4 or X4-X5 for the operating current/rest current principle and via X1-X2 for the memory behavior. A bridge between X1 and X2 deactivates the memory function, enabling a remote reset function.

Indication and Status Monitoring
Two LEDs provide visual status indication: a green LED indicates intact fuses, while a red LED signals a fuse failure. This indication allows for quick visual inspection of the operational status without additional measuring instruments.

Compliance with Standards
The device complies with IEC/EN 60255-1, which defines requirements for electrical measuring instruments and systems. Compliance ensures reliability and safety in industrial applications.

Application Safety
The measurement paths of the fuse monitor are designed to meet touch voltage requirements, even if a fuse is missing or defective. The internal resistance is in the MOhm range (over 2000 Ohm/V), increasing safety during commissioning and maintenance. Isolation requires switching off the upstream main switch.

Cable Connection and Programming
Programming of the operating current/rest current function is done via terminals X3, X4, X5. The maximum allowable cable length for this programming is 3 m. Terminals X1 and X2 are used for programming the memory behavior and remote reset function.

Technical data
1- / 3-phase3
Enclosure designDistribution board
Measuring range max.690 V
Output contacts2 C/O contacts
Standard measuring range3 AC 380 - 415 V
Width70 mm
TypeIP 9075
Variant
Contact equipping2 changeover contacts
Nominal voltageAC 600 - 690 V 50 - 400 Hz
VariantEnergized / De-energized on trip programmable. Manual reset programmable


Product data sheet
Datasheet for Dold 0045104, EAN: 4030641451042
