Dold 0044945 MK9989 AC/DC24V+AC220-240V 0.05-1S wipe relay

Your rating:
Average rating
product review for Dold 0044945 MK9989 AC/DC24V+AC220-240V 0.05-1S wipe relay
( 4.6 / 5 ) 10 ratings
Dold 0044945

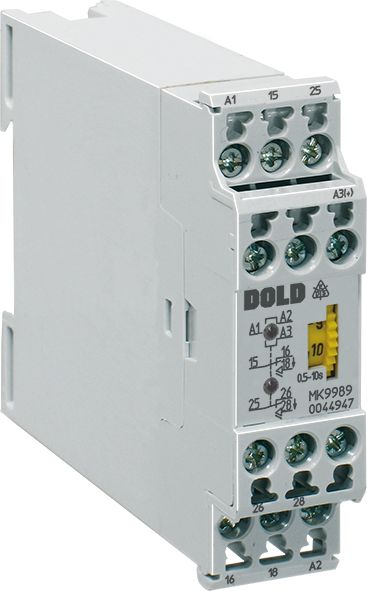

This image may differ from the desired article.
Dold 0044945Dold 0044945
114,72 EUR
( 136,52 EUR incl. VAT )
≈ £96.02  |  ≈ $126.08
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0044945 MK9989 AC/DC24V+AC220-240V 0.05-1S wipe relay
Datasheet:file_download Download
Lieske Part No.:674273
Mfg Part No: 0044945
UPC/EAN: 4030641449452
Weight:0.16 kg
Type:MK9989AC/DC24V+AC220-240V0,05-1S
Graduated prices net
From piecesPrice per pieces
5110,42 EUR
10106,12 EUR
15101,81 EUR
2097,51 EUR

Product information for Dold 0044945:

The Dold MK9989AC/DC24V+AC220-240V0,05-1S is an on-delay timing relay from the MK 9989 series, designed for use in industrial control systems. It is used for time-delayed switching of loads, where the contact position is activated with a delay after applying the operating voltage, adjustable within a time range of 0.05 to 1 second. The device is designed for installation in enclosures and has a width of 22.5 mm, making it suitable for standard DIN rails. The rated voltage is AC/DC 24 V and AC 220–240 V, allowing flexible adaptation to various power supplies.

Applications
This relay is used in systems requiring time-delayed activation of switching operations, for example in motor control, lighting systems, or safety functions. The repeatability of less than ±0.5 % of the scale end value ensures high precision in repeated switching operations. Adjustment is done continuously on an absolute scale, enabling exact and reproducible time settings. The maximum timing duration is up to 300 seconds, with additional time ranges available upon request.

Functions and Equipment in Detail
The device features 2 on-delay timers (changeover contacts), each functioning as a make and break contact. The contact configuration allows control of two independent loads with time-delayed activation. The contacts are made of AgSnO₂, a material suitable for high switching life and low contact resistance. The rated operating voltage is AC 250 V, and the relay is designed for a thermal current of 5 A. The electrical life is 500,000 switching operations at 3 A and AC 230 V, while the mechanical life exceeds 30 million switching operations.

Technology Explained Simply
The timing function is based on an on-delay timing principle, where the contacts close only after the set time has elapsed. The reset time is less than 40 ms at 50/100 V, enabling rapid reset after a switching operation. The operating voltage is connected to terminals A3–A2 (for AC/DC 24 V) and A1–A2 (for AC 220–240 V). The voltage ranges are AC 0.8–1.1 Uₙ and DC 0.9–1.25 Uₙ, with the dropout voltage at 15 % of the rated voltage. The rated power consumption is 8.5 VA at AC 230 V and 1 W at DC 24 V.

Compatibility and Accessories
The relay can be actuated with two-wire initiators and can be used in combination with other MK 9989 variants, for example with version MK 9989.77, which features one on-delay timer and one instantaneous changeover contact. The connection terminals are designed for secure connections, and terminal markings follow the standard A1, A3(+), A2 for operating voltage, and 15–18 and 21–24 for output contacts.

Mounting and Installation
The device is installed in enclosures and is designed for continuous operation. The operating temperature range is from -20 °C to +60 °C, and the storage temperature range is from -25 °C to +70 °C. The relative humidity is up to 93 % at 40 °C. The housing is made of thermoplastic with V0 flammability rating according to UL Subject 94, indicating a high fire protection class. The protection rating is IP 40 for the housing and IP 40 for the terminals, protecting against touch and dust, but not against water or splashing water.

Operational Advantages
The LED indicators signal operational readiness (upper LED) and activation of the output relay (lower LED). EMC testing according to IEC/EN 61000-4-2 to -4-6 ensures high immunity to electromagnetic interference. The overvoltage category III and insulation test voltage of 2.5 kV ensure electrical safety. The permissible switching frequency is 6000 switching operations per hour, which is sufficient for industrial applications. Short-circuit resistance is ensured by a maximum fuse rating of 6 A gG/gL.

Technical data
Enclosure designSwitch cabinet
Output contacts2 C/O contacts
Time function(s)Fleeting on make
Width22,5 mm
TypeMK 9989
Variant
Contact equipping2 contacts fleeting on make (changeover),
Nominal voltageAC/DC 24 V + AC 220 - 240 V
Time range0,05 - 1 s
Variant2 fleeting make


Product data sheet
Datasheet for Dold 0044945, EAN: 4030641449452
