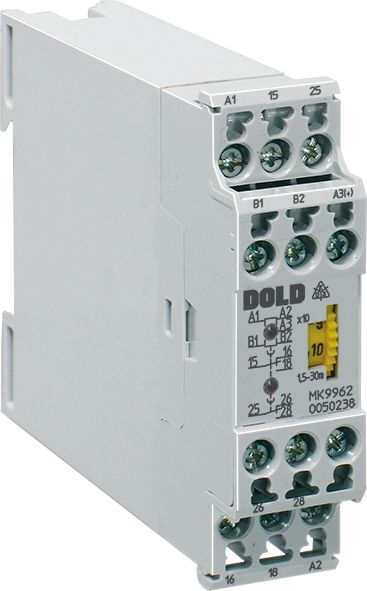

Dold 0044936 MK9962 AC/DC24V+AC220-240V 5-100S time relay delayed return

Your rating:
Average rating
product review for Dold 0044936 MK9962 AC/DC24V+AC220-240V 5-100S time relay delayed return
( 4.5 / 5 ) 26 ratings
Dold 0044936
This image may differ from the desired article.
126,23 EUR
( 150,21 EUR incl. VAT )
≈ £105.65  |  ≈ $138.73
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0044936 MK9962 AC/DC24V+AC220-240V 5-100S time relay delayed return
Datasheet:file_download Download
Lieske Part No.:493021
Mfg Part No: 0044936
UPC/EAN: 4030641449360
Weight:0.2 kg
Type:MK9962 AC/DC24V+AC220-240V 5-100S
Graduated prices net
From piecesPrice per pieces
5125,28 EUR
10124,34 EUR
15123,39 EUR
20122,44 EUR

Product information for Dold 0044936:

The Dold MK9962 is a delayed-reset time relay of the MINITIMER series, designed for use in industrial enclosures. It features a dual-voltage configuration with rated voltages AC/DC 24 V and AC 220–240 V, enabling flexible integration into various electrical systems. The time function is designed as a delayed reset with control signal: when activated via a potential-free contact, the relay is triggered and the output contact closes. Once the control signal is removed, a time-controlled reset begins, returning to the resting position after the set delay time has elapsed. The delay time is continuously adjustable via a rotary switch in the range of 5 to 100 seconds, with adjustment performed on an absolute scale. Repeatability is ≤ ± 1 % of the set value, enabling precise and reproducible time control.

Applications
This time relay is suitable for time-dependent controls in industrial automation, for example, to delay switching operations, to secure motor start-up times, or to control display and signaling devices. The delayed reset function is particularly useful when a function must continue for a defined period after a signal is switched off, such as when shutting down fans or lighting units.

Functions and Equipment in Detail
The device features two changeover contacts as output contacts, sufficient for controlling multiple loads. The contact material consists of AgSnO₂, a material suitable for high switching capacity and long service life under frequent switching operations. Switching capacity is 1 A / AC 230 V (normally open) and 3 A / AC 230 V (normally closed) for AC 15. Electrical life is 500,000 switching operations at 5 A and AC 230 V, while mechanical life is 30 million switching operations. Maximum permissible switching frequency is 6,000 switching operations per hour. Operating voltage is AC 250 V, thermal current Ith is 5 A. Short-circuit withstand requires a maximum fuse rating of 6 A gG / gL.

Technology Explained Simply
Control is performed potential-free via terminals B1/B2, which are electrically connected to voltage terminals A1–A3. Therefore, galvanic isolation of the control contacts is required to ensure safe and interference-free operation. Operating voltage is connected to terminals A1/A2 and A3/A2, with voltage at A3/A2 for AC/DC 24 V and at A1/A2 for AC 220–240 V. Voltage ranges are 0.8 to 1.1 times rated voltage for alternating current. Rated frequency is 50/60 Hz, with a frequency range of ±5 % of rated frequency. Minimum switching-on time is 20 ms, and readiness time is approximately 5 ms.

Compatibility and Accessories
The device is designed for use in enclosures and has a width of 22.5 mm, making it suitable for standard DIN rails. Approvals include EN 61812-1 for time relays. EMC requirements are met according to IEC/EN 61000-4-2 to -4-5, including immunity to static discharge (8 kV), high-frequency radiation (10 V/m up to 1 GHz), and fast transients (2 kV). Insulation testing is performed at 2.5 kV for 1 minute. Overvoltage category is III, rated impulse voltage is 4 kV at pollution degree 2.

Mounting and Installation
Mounting is on a DIN rail inside the enclosure. Connection terminals are clearly labeled: A1, A2, A3 for operating voltage, B1, B2 for control input, 15, 16, 18 and 25, 26, 28 for the two changeover contacts. The connection terminals are designed for secure connections. Operating temperature range is -20 °C to +60 °C, storage temperature range is also -20 °C to +60 °C. Operating altitude is limited to ≤ 2000 m.

Operational Advantages
Two LED indicators facilitate fault diagnosis: the upper LED lights up when the control contact is closed, and the lower LED lights up when the output relay is activated. This enables quick visual inspection of the operating status. Simple operation via the continuously adjustable rotary switch and clear indication ensure efficient commissioning and maintenance. High repeatability and long service life guarantee reliable performance throughout the entire service life.

Technical data
Enclosure designSwitch cabinet
Output contacts2 C/O contacts
Time function(s)Off-delay, with control signal
Width22,5 mm
TypeMK 9962
Variant
Contact equipping2 changeover contacts delayed
Nominal voltageAC/DC 24 V + AC 220 - 240 V
Time range5 - 100 s
VariantRelease delay, with control signal


Product data sheet
Datasheet for Dold 0044936, EAN: 4030641449360
