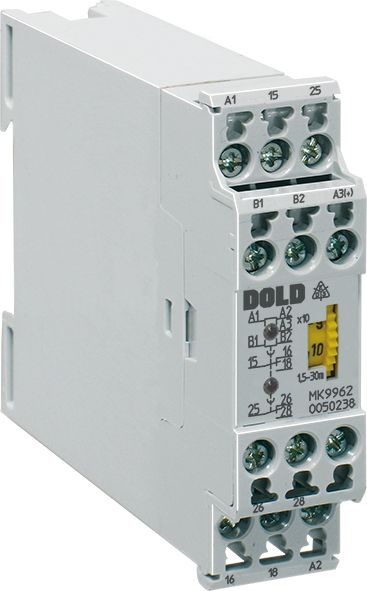

Dold 0044935 MK9962 AC/DC24V+AC220-240V 1.5-30S time relay delayed return

Your rating:
Average rating
product review for Dold 0044935 MK9962 AC/DC24V+AC220-240V 1.5-30S time relay delayed return
( 4.5 / 5 ) 11 ratings
Dold 0044935
This image may differ from the desired article.
126,23 EUR
( 150,21 EUR incl. VAT )
≈ £105.65  |  ≈ $138.73
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0044935 MK9962 AC/DC24V+AC220-240V 1.5-30S time relay delayed return
Datasheet:file_download Download
Lieske Part No.:869146
Mfg Part No: 0044935
UPC/EAN: 4030641449353
Weight:0.2 kg
Type:MK9962 AC/DC24V+AC220-240V 1,5-30S
Graduated prices net
From piecesPrice per pieces
5125,28 EUR
10124,34 EUR
15123,39 EUR
20122,44 EUR

Product information for Dold 0044935:

The Dold MK9962 is an industrial time relay of the MINITIMER series, designed for delayed release control with control signal. It is used for time-delayed switching off of electrical loads after removal of a control signal and is designed for use in enclosures. The device features a dual-voltage version with rated voltages AC/DC 24 V and AC 220–240 V, allowing flexible integration into various systems. The delay time is continuously adjustable from 1.5 to 30 seconds via a rotary switch on an absolute scale, with a repeatability of ≤ ±1 %. The width of 22.5 mm allows for compact mounting in standard control panels.

Applications
This time relay is suitable for time-dependent controls in industrial automation, for example, to delay switching-off processes for pumps, motors, or lighting systems. The delayed release with control signal function ensures that the output contact returns to its resting position only after the set time has elapsed once the control signal is removed. This is useful for minimizing mechanical or thermal stress or ensuring a process is fully completed before the next step begins.

Functions and Equipment in Detail
The device features 2 changeover contacts as output contacts, sufficient for controlling multiple loads. The contact configuration is delayed, meaning switching operations occur with time delay. Control is potential-free via terminals B1/B2, with no galvanic isolation from voltage terminals A1–A3. The operating voltage is connected to terminals A1/A2 and A3/A2, where the voltage at A3/A2 controls the relay and at A1/A2 supplies the control signal voltage. The LED indicators show the control signal status (upper LED) and contact position (lower LED), simplifying fault diagnosis.

Technology Explained Simply
The delayed release time function means that the relay immediately energizes and closes the output contacts when the control signal is applied. Once the control signal is removed, a time delay begins, adjustable via a continuous rotary switch. After the set time (1.5–30 s) has elapsed, the relay returns to its resting position. The time can be precisely adjusted, as repeatability is ≤ ±1 %. The minimum switching-on time is 20 ms, and the re-arming time is approximately 5 ms. Voltage influence values are ≤ ±0.5 %, and temperature influence is < ±0.1 %/K, ensuring high stability under various operating conditions.

Compatibility and Accessories
The time relay is designed for use in enclosures and can be combined with other components of the MINITIMER series. Terminal designations are standardized: A1/A2/A3 for operating voltage, B1/B2 for control input, and 15/16/18 as well as 25/26/28 for changeover contacts. Contact materials consist of AgSnO₂, ensuring high switching durability and corrosion resistance. The rated operating voltage is AC 250 V, and the thermal current Ith is 5 A. The electrical life is 5 × 10⁵ switching operations at 5 A and AC 230 V, while the mechanical life is 30 × 10⁶ switching operations. The maximum permissible switching frequency is 6000 switching operations per hour.

Mounting and Installation
The device is mounted in enclosures and requires installation in a closed housing. The operating temperature ranges from -20 °C to +60 °C, and the storage temperature is also from -20 °C to +60 °C. The operating altitude is limited to ≤ 2000 m. Insulation testing is performed at 2.5 kV for 1 minute. The overvoltage category is III, and the rated impulse voltage is 4 kV at pollution degree 2. EMC requirements comply with standards IEC/EN 61000-4-2 to -4-5, with static discharge at 8 kV (air discharge) and HF radiation from 80 MHz to 2.7 GHz specified at 10 V/m to 1 V/m.

Operational Advantages
The simple operation via the continuous rotary switch and visual indication via LEDs facilitate commissioning and maintenance. High repeatability and low dependence on voltage and temperature ensure reliable performance in industrial applications. The dual-voltage version increases flexibility when integrating into existing systems. The contact configuration with 2 changeover contacts allows independent control of multiple loads. The operating voltages AC/DC 24 V and AC 220–240 V cover common voltage types in industry.

Standards and Approvals
The device complies with standard EN 61812-1 for time relays. Approvals and markings are listed in the datasheet, including overvoltage category III and insulation testing at 2.5 kV for 1 minute. EMC requirements are met according to IEC/EN 61000-4-2 to -4-5.

Operational Requirements
The device is designed for continuous operation. The operating temperature ranges from -20 °C to +60 °C, and the storage temperature is also from -20 °C to +60 °C. The operating altitude is limited to ≤ 2000 m. Creepage and clearance distances comply with IEC 60664-1 requirements, with a rated impulse voltage of 4 kV and pollution degree 2.

Technical data
Enclosure designSwitch cabinet
Output contacts2 C/O contacts
Time function(s)Off-delay, with control signal
Width22,5 mm
TypeMK 9962
Variant
Contact equipping2 changeover contacts delayed
Nominal voltageAC/DC 24 V + AC 220 - 240 V
Time range1,5 - 30 s
VariantRelease delay, with control signal


Product data sheet
Datasheet for Dold 0044935, EAN: 4030641449353
