Dold 0044934 MK9962 AC/DC24V+AC220-240V 0.5-10S time relay delayed return

Your rating:
Average rating
product review for Dold 0044934 MK9962 AC/DC24V+AC220-240V 0.5-10S time relay delayed return
( 4.5 / 5 ) 51 ratings
Dold 0044934
This image may differ from the desired article.
126,23 EUR
( 150,21 EUR incl. VAT )
≈ £105.65  |  ≈ $138.73
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0044934 MK9962 AC/DC24V+AC220-240V 0.5-10S time relay delayed return
Datasheet:file_download Download
Lieske Part No.:498266
Mfg Part No: 0044934
UPC/EAN: 4030641449346
Weight:0.2 kg
Type:MK9962 AC/DC24V+AC220-240V 0,5-10S
Graduated prices net
From piecesPrice per pieces
5125,28 EUR
10124,34 EUR
15123,39 EUR
20122,44 EUR

Product information for Dold 0044934:

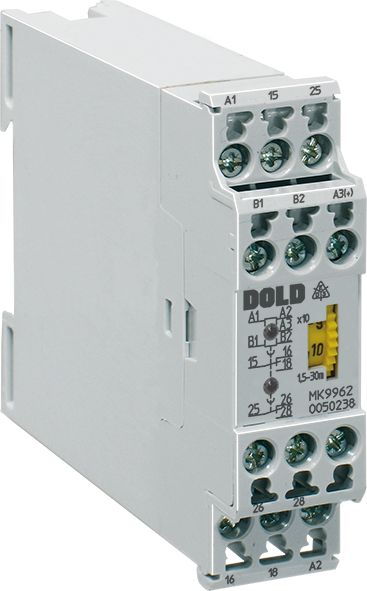

The Dold MK9962 is an industrial time relay of the MINITIMER series, designed for delayed-off control applications with a control signal. It is used for time-delayed switching off of electrical loads after interruption of a control signal and is designed for use in enclosures. The width of 22.5 mm allows for compact mounting in standard control panels. The device features a dual-voltage version, making it suitable for various operating voltages, and is equipped with a continuously adjustable rotary switch to set the delay time in the range of 0.5 to 10 seconds.

Applications
This time relay is suitable for time-dependent control applications in industrial plants, such as in manufacturing automation, pump control systems, or in installations where delayed switching off of components is required. The delayed-off function means that the relay responds immediately upon activation of the control signal and closes the output contacts. Once the control signal is removed, a timing sequence begins, which ends only after the set delay time has elapsed. After that, the relay returns to its resting position. This function is particularly useful to avoid switching off loads immediately, but rather after a defined time interval, to prevent mechanical stress or thermal transitions.

Functions and Features in Detail
The device features 2 changeover contacts as output contacts, each providing one normally open and one normally closed contact. The contact operation is delayed, meaning switching occurs after the timing sequence. The contacts are made of AgSnO₂, a material known for high switching life and low tendency to contamination. The repeatability accuracy is ≤ ±1 %, ensuring high precision in repeated switching operations. Two LED indicators support diagnostics: the upper LED lights up when the control signal is present, and the lower LED indicates the state of the output relay. This facilitates troubleshooting during operation.

Technical Explanation
The operating voltage is supplied via terminals A1/A2/A3, with rated voltages of AC/DC 24 V and AC 220–240 V. Control is performed via potential-free terminals B1/B2, with no galvanic isolation from the voltage terminals. Therefore, control must be carried out using potential-free contacts, which must have appropriate insulation depending on the operating voltage. The time delay is set using a continuously adjustable rotary switch on an absolute scale. The minimum switching-on time is 20 ms, and the re-arming time is approximately 5 ms. Voltage influence values are ≤ ±0.5 %, and temperature influence is < ±0.1 %/K, indicating high stability under varying operating conditions.

Compatibility and Accessories
The device is designed for use in enclosures and complies with the standard EN 61812-1 for time relays. The rated operating voltage is AC 250 V, and the thermal current Ith is specified as 5 A. The electrical life at 5 A and AC 230 V is 500,000 switching operations, and the mechanical life is 30 million switching operations. The permissible switching frequency is 6000 switching operations per hour. The short-circuit withstand requires a maximum fuse rating of 6 A gG/gL. The operating temperature range is from -20 °C to +60 °C, and the storage temperature range is also from -20 °C to +60 °C. The operating altitude is limited to ≤ 2000 m.

Mounting and Installation
The time relay is mounted in enclosures, with a width of 22.5 mm enabling standard mounting on DIN rails. The connection terminals are clearly labeled: A1/A2/A3 for operating voltage, B1/B2 for control input, and contacts 15/16/18 and 25/26/28 for the output relays. Control is potential-free, with terminals B1/B2 electrically connected to A1/A2/A3. Therefore, installation requires appropriate insulation of the control contacts, depending on the operating voltage level.

Operational Advantages
The simple operation via the continuously adjustable rotary switch and the clear LED indication of control and contact status facilitate commissioning and maintenance. The high repeatability accuracy and long contact life ensure reliable operation. The dual-voltage version increases flexibility when integrating into existing systems. Compliance with the EN 61812-1 standard ensures the quality and safety of the device. EMC requirements according to IEC/EN 61000-4-2 to -4-5 are met, ensuring immunity against electromagnetic interference.

Technical data
Enclosure designSwitch cabinet
Output contacts2 C/O contacts
Time function(s)Off-delay, with control signal
Width22,5 mm
TypeMK 9962
Variant
Contact equipping2 changeover contacts delayed
Nominal voltageAC/DC 24 V + AC 220 - 240 V
Time range0,5 - 10 s
VariantRelease delay, with control signal


Product data sheet
Datasheet for Dold 0044934, EAN: 4030641449346

Questions & answers

What is the delivery time of Dold 0044934 MK9962 AC/DC24V+AC220-240V 0.5-10S time relay delayed return ?

The article Dold 0044934 MK9962 AC/DC24V+AC220-240V 0.5-10S time relay delayed return is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0044934 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0044934 MK9962 AC/DC24V+AC220-240V 0.5-10S time relay delayed return always at the best possible price. We can give you a discount of 2% on Dold 0044934 MK9962 AC/DC24V+AC220-240V 0.5-10S time relay delayed return if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Dold 0044934 MK9962 AC/DC24V+AC220-240V 0.5-10S time relay delayed return we can offer you a price of 125,28 EUR per piece. The more you buy, the cheaper the article will be.
