Dold 0044645 IK7819.81 AC/DC110-240V 0.15-3S time relay delayed return

Your rating:
Average rating
product review for Dold 0044645 IK7819.81 AC/DC110-240V 0.15-3S time relay delayed return
( 4.4 / 5 ) 30 ratings

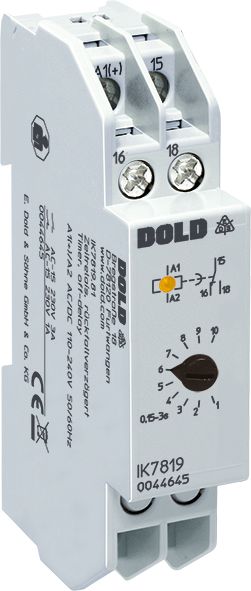

Dold 0044645
This image may differ from the desired article.
128,52 EUR
( 152,94 EUR incl. VAT )
≈ £107.57  |  ≈ $141.24
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0044645 IK7819.81 AC/DC110-240V 0.15-3S time relay delayed return
Datasheet:file_download Download
Lieske Part No.:706799
Mfg Part No: 0044645
UPC/EAN: 4030641446451
Weight:0.078 kg
Type:IK7819.81 AC/DC110-240V 0,15-3S
Graduated prices net
From piecesPrice per pieces
5127,56 EUR
10126,59 EUR
15125,63 EUR
20124,66 EUR

Product information for Dold 0044645:

The Dold IK7819.81 is a drop-out delayed time relay, specifically designed for industrial control and automation systems. It is used for precise delay when switching off loads, with the output contact remaining active for a set period of time after interruption of the control voltage. The variant is rated for a nominal voltage of AC/DC 110 to 240 V and offers a time range of 0.15 to 3 seconds. The contact configuration includes a changeover contact, suitable for controlling loads in various application scenarios. The device is designed as an installation distributor and conforms to the enclosure form for distributors according to DIN 43880, with a width of 17.5 mm.

Applications
This time relay is suitable for applications requiring controlled switch-off delay, for example in conveyor technology, pump control systems, or lighting technology. The zero-voltage safety ensures that the relay reacts immediately in case of voltage failure and switches off the load according to the set delay time. Its use in control systems requiring high reliability and repeatability is particularly suitable due to the repeatability accuracy of ≤ 1 % of the scale end value.

Functions and Equipment in Detail
The device features an LED indicator that visually signals the power supply. The time setting is adjusted continuously on a relative scale, allowing precise adaptation to the specific application. The reset time is 100 ms, meaning the relay is operational again within this time after switching off. The temperature dependence of the time function is < 0.1 % per Kelvin, ensuring stable operation over a wide temperature range.

Technology Explained Simply
The drop-out delayed function means that the output contact does not switch immediately after interruption of the control voltage, but only after the set delay time has elapsed. This is useful, for example, to switch off motors gently or to ensure that a load is not switched off prematurely. The nominal voltage AC/DC 110–240 V allows use in various mains voltage conditions, both in Europe and in other regions with corresponding voltage standards. The operating temperature ranges from -20 °C to +60 °C, ensuring broad applicability in industrial environments.

Compatibility and Accessories
The time relay is designed for use in installation and industrial distributors according to DIN 43880. It is mounted on a DIN rail (DIN-35 mm), enabling easy integration into existing enclosures. The terminal connections are rated for conductor cross-sections of 2 x 2.5 mm² (solid) or 2 x 1.5 mm² (stranded wire with ferrule). Terminal marking follows EN 50005, with A1 and A2 representing the supply voltage (L/+ and N/-) and 15, 16, and 18 representing the changeover contacts.

Mounting and Installation
Mounting is done via DIN rail (IEC/EN 60715), with the device depth being 58 mm. The terminals are located at the bottom, which is typical for installation distributors. The stripping length is 10 mm, and the tightening torque for the terminals is 0.8 Nm. The device dimensions are 17.5 mm (width) × 90 mm (height) × 58 mm (depth). Installation is carried out in a closed enclosure, with the enclosure protection rating being IP 40 and the terminals IP 40.

Advantages in Operation
The zero-voltage safety and high repeatability accuracy ensure reliable operation in critical applications. The LED indicator allows for quick visual verification of operational readiness. The continuous time adjustment on the relative scale offers flexibility in adapting to different processes. The low temperature dependence of the time function ensures consistent performance over a wide temperature range. The device is designed for continuous operation and complies with standards EN 61812-1 and IEC/EN 60529 for protection rating. EMC tests according to IEC/EN 61000-4-2 to -4-6 ensure functionality in electromagnetically demanding environments.

Technical data
Enclosure designDistribution board
Output contacts1 C/O contact
Time function(s)Off-delay, without control signal
Width17,5 mm
TypeIK 7819
Variant
Contact equipping1 changeover contact
Nominal voltageAC/DC 110 - 240 V
Time range0,15 - 3 s
VariantRelease delay, without control signal


Product data sheet
Datasheet for Dold 0044645, EAN: 4030641446451
