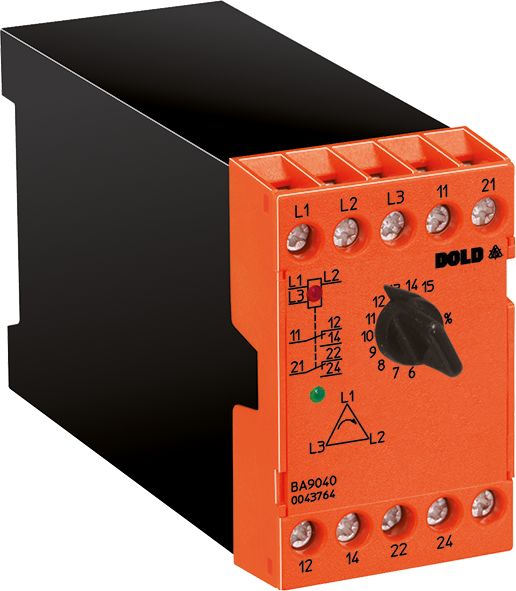

Dold 0044582 BA9040.12/011 3AC50/60Hz 400V 0.5-5S asymmetrical relay
|
320,41 EUR |
|||||||||||
|
( 381,29 EUR incl. VAT ) ≈ £267.86 | ≈ $354.05 plus delivery charges: 55,00 € |
|||||||||||
| On order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 100047 | ||||||||||
| Mfg Part No: | 0044582 | ||||||||||
| UPC/EAN: | 4030641445829 | ||||||||||
| Weight: | 0.355 kg | ||||||||||
| Type: | BA9040.12/011 3AC50/60HZ 400V ,5-5S | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Dold 0044582:
Applications
This relay is intended for use in industrial and commercial installations where stable and symmetrical power supply is critical for the correct operation of electric motors and drive systems. Particularly in installations requiring high availability, such as in manufacturing industry or public transport, the BA9040.12/011 ensures preventive maintenance through early fault detection and prevents costly downtimes.
Functions and Features in Detail
The device detects voltage asymmetry, where the voltages of individual phases are no longer evenly distributed, as well as phase failures, where one or more phases are interrupted. Additionally, it monitors reverse voltages, which may occur due to unexpected voltage surges. A central function is phase sequence detection, ensuring that the phase sequence L1-L2-L3 is correct to guarantee the proper rotation direction of motors. The adjustable time delay between 0.5 and 5 seconds allows application-specific adjustment to filter out short-term voltage fluctuations and avoid false tripping.
Technology Explained Simply
The relay operates according to the standard IEC/EN 60255-1, which applies to electrical measuring and monitoring devices in industry. It monitors a three-phase network with a rated voltage of 3 AC 400 V at 50/60 Hz. The measurement range extends up to 3 AC 690 V, making it suitable for higher voltages as well. The output contacts consist of 2 changeover contacts, which can trigger switching operations when the relay trips, for example, to switch off a motor or activate a warning indicator. The operating delay is built-in and can be set between 0.5 and 5 seconds to dampen the response to short-term disturbances.
Compatibility and Accessories
The device is designed for mounting on a DIN rail (IEC/EN 60715) and is therefore suitable for standard enclosures. The connection terminals allow connection of solid conductors up to 2.5 mm² or stranded conductors up to 1.5 mm², with terminals conforming to DIN 46228-1/-2/-3/-4. The tightening torque is 0.8 Nm. The LED indicators signal the operating status: a red LED lights up when supply voltage is present, and a green LED lights up when the output relay is activated.
Mounting and Installation
Mounting is done via quick fastening on a DIN rail inside the enclosure. The connection terminals are designed for easy wiring, with a stripping length of 10 mm for conductors. The width is 45 mm, enabling compact installation in existing control systems. The device dimensions are 45 mm (width) × 74 mm (height) × 133 mm (depth).
Operational Advantages
Through early detection of disturbances in the three-phase network, the BA9040.12/011 enables preventive maintenance and prevents damage to drives and motors. The adjustable time delay reduces the likelihood of false tripping due to short-term voltage fluctuations. The clear visual indication via LED indicators facilitates diagnosis during operation. Compliance with the standard IEC/EN 60255-1 ensures reliable and standard-conforming performance in industrial applications. The UKCA and CCC certifications confirm compliance with respective market regulations in the United Kingdom and China.
Certifications and Markings
The device carries the UKCA and CCC certifications, confirming compliance with safety and quality requirements in the respective markets. Manufacturing is carried out in accordance with the IEC/EN 60255-1 standard, which applies to electrical measuring and monitoring devices in industry.
Switching Capacity and Thermal Rating
The relay has a switching capacity of 3 A at 230 V AC (AC 15) and 1 A at 24 V DC (DC 13), according to IEC/EN 60947-5-1. The thermal current is 5 A, describing the device’s load capacity under continuous operation. The nominal power consumption is approximately 4.8 VA.
Connection and Conductor Connection
The conductor connection terminals are designed for solid copper conductors up to 2.5 mm² or stranded conductors up to 1.5 mm², with terminals manufactured according to DIN 46228-1/-2/-3/-4. The stripping length is 10 mm, and the tightening torque for the terminals is 0.8 Nm. The terminals are equipped with self-lifting connection washers, ensuring a secure and easy connection.
Device Indicators
Two LED indicators signal the operating status: the red LED lights up when supply voltage is present, and the green LED lights up when the output relay is activated. These indicators facilitate visual inspection of the device status during operation.
Use in Industrial Installations
The BA9040.12/011 is particularly suitable for installations where correct phase sequence and stable voltage supply are critical. Its use in elevators, escalators, or crane systems ensures safe and reliable operation of drives and prevents damage caused by incorrect rotation direction or insufficient voltage.
| Technical data | |
| 1- / 3-phase | 3 |
| Enclosure design | Switch cabinet |
| Measuring range max. | 3 AC 690 V |
| Output contacts | 2 C/O contacts |
| Standard measuring range | 3 AC 400 V |
| Width | 45 mm |
| Type | BA 9040 |
| Operate delay | |
| Variant | |
| Contact equipping | 2 changeover contacts |
| Nominal voltage | 3AC 400 V 50/60 Hz |
| Time delay | 0,5 - 5 s |
| Approvals and Markings | UKCA, CCC |
| Variant | With phase sequence detection. With adjustable time delay |
