Dold 0044012 EF7666.24 AC 50/60 Hz 240 V 0.2 s–60 h time relay delayed return

Your rating:
Average rating
product review for Dold 0044012 EF7666.24 AC 50/60 Hz 240 V 0.2 s–60 h time relay delayed return
( 4.9 / 5 ) 9 ratings

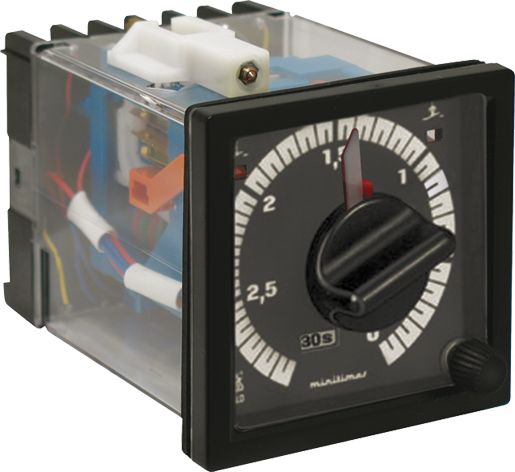

Dold 0044012
This image may differ from the desired article.
335,33 EUR
( 399,04 EUR incl. VAT )
≈ £280.67  |  ≈ $368.53
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0044012 EF7666.24 AC 50/60 Hz 240 V 0.2 s–60 h time relay delayed return
Datasheet:file_download Download
Lieske Part No.:1583483
Mfg Part No: 0044012
UPC/EAN: 4030641440121
Weight:0.44 kg
Type:EF7666.24 AC50/60HZ 240V 0,2S-60H
Graduated prices net
From piecesPrice per pieces
4330,30 EUR
8325,27 EUR
12320,24 EUR
16315,21 EUR

Product information for Dold 0044012:

The Dold time relay EF7666.24 is a drop-out delayed industrial time relay for front panel mounting, designed for a rated voltage of AC 240 V and a frequency of 50/60 Hz. It is used for time-delayed control of electrical devices and system components, particularly to account for coast-down behaviour, as occurs with motors or pumps. The device features a wide adjustment range from 0.2 seconds to 60 hours, which can be continuously adjusted at the front via six switchable time ranges. The time function is purely mechanical, ensuring a high repeatability accuracy of ≤ ± 0.5 % (≤ ± 1 % at 3 and 6 seconds). The time progress indicator enables visual monitoring of the timing process.

Applications
This time relay is designed for industrial applications requiring precise, time-controlled switching off. Typical uses include controlling fans, pumps, lighting systems, or other equipment where immediate switching off after a control signal is not desired. The voltage loss safety ensures that the relay remains in its output position in case of voltage drop, which is important for the safety and stability of control systems.

Functions and Features in Detail
The device features contact configuration with one instantaneous closer, one delayed closer, one instantaneous opener, and one delayed opener, corresponding to an output contact type of 1 changeover. The contact position indicator allows visual verification of the contact position, which is available in the EF 7666 variant. The contacts are made of AgNi + 0.2 μm Au, ensuring high switching capacity and long service life. The actuation time of the contacts is less than 35 ms, and the release time is less than 60 ms.

Technology Explained Simply
The time delay is achieved through a mechanical timing mechanism, controlled via a continuously adjustable rotary switch on the front. The delay time is set using an absolute scale, with the adjustment range varying depending on the selected time range. The reset time is less than 150 ms, meaning the device is quickly ready for the next operation after switching. Adjustment is performed using a black or white setting pointer, directly visible on the front.

Compatibility and Accessories
The time relay is designed for use in industrial control systems and switchgear. It is compatible with a rated voltage of AC 240 V and a frequency of 50/60 Hz. The width is 72 mm, and the front panel measures 72 x 72 mm, making it suitable for standard control panels. The front is protected against spray water and meets protection class IP 65, enabling use in outdoor or damp environments. The switching capacity according to AC 15 is 3 A at AC 230 V, and the electrical service life is 1 x 10⁵ switching operations at 3 A and 5 x 10⁵ at 1 A. The mechanical service life exceeds 30 x 10⁶ switching operations or 15,000 operating hours.

Mounting and Installation
The device is mounted as a front panel insert in control panels or control cabinets. The terminal clamps are designed for connection to wires, with a maximum fuse rating of 10 A gG / gL. Mounting is done by securing to the front panel, taking into account the width of 72 mm. The delay time adjustment is performed directly on the front via the rotary switch.

Operational Advantages
The combination of a wide adjustment range, high repeatability accuracy, and mechanical time function ensures reliable and low-maintenance control. The voltage loss safety and contact position indicator enhance safety and transparency during operation. The IP 65 protection class allows flexible installation even in harsh environments. The simple operation via the continuously adjustable rotary switch reduces setup time and minimizes error sources.

Technical data
Enclosure designFront panel mounting
Output contacts1 C/O contact
Time function(s)Off-delay, with control signal
Width72 mm
TypeEF 7666
Variant
Contact equipping1 NO contact undelayed, 1 NO contact delayed, 1 NC contact undelayed, 1 NC contact delayed
Nominal voltageAC 240 V
Time range0,2 s - 60 h


Product data sheet
Datasheet for Dold 0044012, EAN: 4030641440121
