Dold 0044011 EF7666.24 AC 50/60 Hz 240 V 0.15 s–30 h time relay delayed return

Your rating:
Average rating
product review for Dold 0044011 EF7666.24 AC 50/60 Hz 240 V 0.15 s–30 h time relay delayed return
( 4.5 / 5 ) 11 ratings

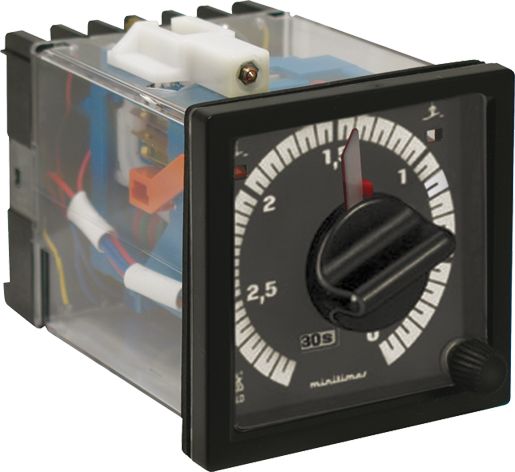

Dold 0044011
This image may differ from the desired article.
321,19 EUR
( 382,22 EUR incl. VAT )
≈ £268.84  |  ≈ $352.99
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0044011 EF7666.24 AC 50/60 Hz 240 V 0.15 s–30 h time relay delayed return
Datasheet:file_download Download
Lieske Part No.:1583484
Mfg Part No: 0044011
UPC/EAN: 4030641440114
Weight:0.44 kg
Type:EF7666.24 AC50/60HZ 240V 0,15S-30H
Graduated prices net
From piecesPrice per pieces
4316,37 EUR
8311,55 EUR
12306,74 EUR
16301,92 EUR

Product information for Dold 0044011:

The Dold time relay EF7666.24 is a delayed-release industrial time relay for front panel mounting, designed for a rated voltage of AC 240 V and a time range from 0.15 seconds to 30 hours. It belongs to the MINITIMER series and is used for controlling devices and systems where a programmed delayed release is required, for example, to account for the coast-down behavior of motors or other system components. The time function complies with EN 61812-1 and is equipped with a control signal, so that the relay does not switch off immediately when the control signal is interrupted, but after the set delay time.

Applications
This device is designed for industrial applications where time-controlled switching operations require high accuracy and reliability. Typical applications include controlling pumps, fans, lighting systems, or other electrical loads, where a controlled switching-off process is necessary to minimize mechanical stress or energy loss. The zero-voltage safety feature ensures that the relay immediately returns to its default position in case of a power failure, which is important for safety in industrial processes.

Functions and Equipment in Detail
The time relay features contact configuration with one instantaneous closer, one delayed closer, one instantaneous opener, and one delayed opener, corresponding to an output contact type of 1 changeover. The delay time can be adjusted via a continuously variable rotary switch on the front, with six switchable time ranges available. Adjustment is made on an absolute scale with a black or white indicator pointer, enabling precise and easy operation. The repeatability is ≤ ± 0.5 % of the scale end value, with a deviation of ≤ ± 1 % allowed in the 3 to 6 second range.

Technology Explained Simply
The time delay is purely mechanical, offering high reliability and independence from electronic components. The time delay is generated by a mechanical timing mechanism controlled by the rotary switch setting. The time progress indicator on the device shows the advancement of the delay time, facilitating monitoring of the switching process. The switching position indicator informs about the current state of the contacts, which is available in the EF 7666 variant. The front of the device is splash-proof and meets protection class IP 65, enabling use in outdoor or damp environments.

Compatibility and Accessories
The relay is designed for a rated frequency of 50/60 Hz and can be operated within a range of ±5 % of the rated frequency. The voltage range coverage is 0.8 to 1.1 times the rated voltage. The rated operating voltage of the contacts is AC 250 V. The contacts are made of AgNi with a gold plating of 0.2 μm, ensuring high switching capacity and long service life. The electrical life is at least 100,000 switching operations at 3 A and AC 230 V, and at least 500,000 switching operations at 1 A and AC 230 V. The mechanical life exceeds 30 million switching operations or 15,000 operating hours.

Mounting and Installation
The device is designed for front panel mounting and has a width of 72 mm. The front surface measures 72 x 72 mm, allowing compact installation in standard control panels. The connection terminals are designed for wiring, with a maximum fuse rating of 10 A gG/gL. The re-activation time is < 150 ms, enabling a quick return to operational status after a switching-off event.

Advantages in Operation
The combination of a wide adjustment range, high repeatability, and purely mechanical time delay makes this device a robust and low-maintenance solution for industrial control tasks. Front-side adjustment and clear switching position indication simplify commissioning and maintenance. The IP 65 protection class allows flexible installation even in harsh environments. The zero-voltage safety and high mechanical life contribute to operational safety and reliability.

Technical data
Enclosure designFront panel mounting
Output contacts1 C/O contact
Time function(s)Off-delay, with control signal
Width72 mm
TypeEF 7666
Variant
Contact equipping1 NO contact undelayed, 1 NO contact delayed, 1 NC contact undelayed, 1 NC contact delayed
Nominal voltageAC 240 V
Time range0,15 s - 30 h


Product data sheet
Datasheet for Dold 0044011, EAN: 4030641440114

Questions & answers

What is the delivery time of Dold 0044011 EF7666.24 AC 50/60 Hz 240 V 0.15 s–30 h time relay delayed return ?

The article Dold 0044011 EF7666.24 AC 50/60 Hz 240 V 0.15 s–30 h time relay delayed return is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0044011 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0044011 EF7666.24 AC 50/60 Hz 240 V 0.15 s–30 h time relay delayed return always at the best possible price. We can give you a discount of 2% on Dold 0044011 EF7666.24 AC 50/60 Hz 240 V 0.15 s–30 h time relay delayed return if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Dold 0044011 EF7666.24 AC 50/60 Hz 240 V 0.15 s–30 h time relay delayed return we can offer you a price of 316,37 EUR per piece. The more you buy, the cheaper the article will be.
