Dold 0043935 IP9075.12 AC50...400Hz 600-690V fuse monitoring

Your rating:
Average rating
product review for Dold 0043935 IP9075.12 AC50...400Hz 600-690V fuse monitoring
( 4.3 / 5 ) 4 ratings
Dold 0043935
This image may differ from the desired article.
218,21 EUR
( 259,67 EUR incl. VAT )
≈ £182.64  |  ≈ $239.81
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0043935 IP9075.12 AC50...400Hz 600-690V fuse monitoring
Datasheet:file_download Download
Lieske Part No.:1583193
Mfg Part No: 0043935
UPC/EAN: 4030641439354
Weight:0.279 kg
Type:IP9075.12 AC50...400HZ 600-690V
Graduated prices net
From piecesPrice per pieces
5216,57 EUR
10214,94 EUR
15213,30 EUR
20211,66 EUR

Product information for Dold 0043935:

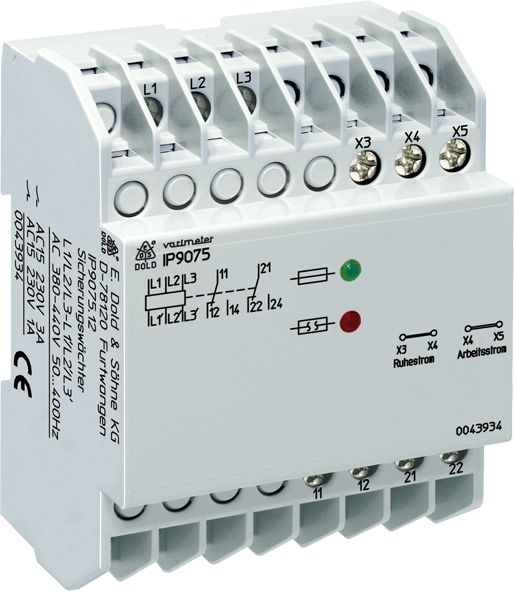

The IP9075.12 fuse monitor from Dold is an industrial monitoring switch for three-phase networks, designed to monitor up to three fuses. The device enables early detection of blown fuses, even when the connected loads are switched off, to prevent operational interruptions and damage to equipment. It is specifically designed for use in installation and industrial distribution boxes, with form type I featuring bottom-mounted connection terminals and a depth of 59 mm, suitable for DIN 43880-compliant distributors. The width is 70 mm, allowing for compact mounting in standard distribution boxes.

Applications
This fuse monitor is designed for monitoring fuses in three-phase installations up to 3 AC 690 V. It is typically used in industrial plants where power supply reliability is critical, such as monitoring motors, pumps, or other electrical loads. The ability to detect fuse failures even when loads are switched off enables preventive maintenance and increases overall system availability. The application is independent of rotation direction and functions even in unbalanced or harmonic-loaded networks, as well as with regenerative motors.

Functions and Equipment in Detail
The device features two changeover contacts as output contacts, which can be programmed to either activate (operating current principle) or deactivate (resting current principle) in the event of a fault. This setting is adjustable via programming terminals X3, X4, and X5. The device operates without memory function, meaning it automatically resets once the fault condition is resolved. Indication is provided by two LEDs: a green LED indicates intact fuses, while a red LED signals a fuse failure. Programming is done via terminals X1 and X2, with a maximum cable length of 3 m for these inputs.

Technology Explained Simply
The fuse monitor monitors voltage before and after the fuses (L1, L2, L3 and L1’, L2’, L3’) and detects a failure when current flow is interrupted. The internal resistance of the measurement paths is in the megohm range (over 2000 Ohm/V), ensuring compliance with touch voltage regulations, even if a fuse is defective or missing. The measurement ranges extend from a standard range of 3 AC 380–415 V to a maximum measurement range of 69ron V. The rated voltage of the device is AC 600–690 V at a frequency of 50–400 Hz, making it suitable for a wide range of industrial networks. The devices comply with the standard IEC/EN 60255-1.

Compatibility and Accessories
The fuse monitor is compatible with all common fuse types and sizes. It is independent of rotation direction and can be used in various network conditions, including unbalanced networks and regenerative motors. Devices from the VARIMETER series are available in various form types, with IP 9075 and SP 9075 variants having a width of 70 mm. The I form type is designed for installation distributors according to DIN 43880, while the S form type is intended for enclosures with mounting plate and cable duct.

Mounting and Installation
Mounting is done in standard installation distributor boxes. The terminals are located at the bottom, enabling easy wiring. The depth of 59 mm requires sufficient space within the distributor. The connection terminals are intended for connecting to network inputs (L1, L2, L3) and subsequent loads (L1’, L2’, L3’). The programming terminals X1–X5 are used to set the operating mode and must be connected according to technical specifications. The maximum cable length for programming terminals X3–X5 is 3 m.

Operational Advantages
Early detection of fuse failures increases operational safety and prevents costly damage. Quick response even when loads are switched off ensures high system availability. Reliability in unbalanced networks and with regenerative motors makes the device a robust solution for demanding industrial environments. The clear LED indication enables quick diagnosis of the status. The programmability of the operating and resting current principles offers flexibility when integrating into existing control systems.

Technical data
1- / 3-phase3
Enclosure designDistribution board
Measuring range max.690 V
Output contacts2 C/O contacts
Standard measuring range3 AC 380 - 415 V
Width70 mm
TypeIP 9075
Variant
Contact equipping2 changeover contacts
Nominal voltageAC 600 - 690 V 50 - 400 Hz
VariantEnergized / De-energized on trip programmable. Automatic reset


Product data sheet
Datasheet for Dold 0043935, EAN: 4030641439354
