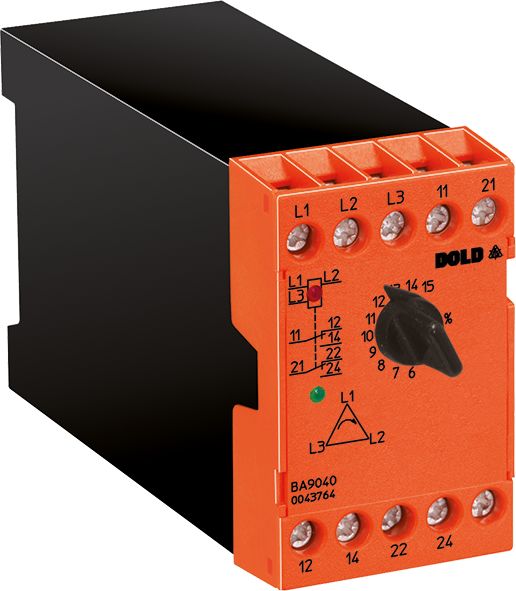

Dold 0043764 BA9040.12/001 3AC 50/60 Hz 400 V asymmetry relay
|
311,75 EUR |
|||||||||||
|
( 370,98 EUR incl. VAT ) ≈ £260.93 | ≈ $342.61 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 350179 | ||||||||||
| Mfg Part No: | 0043764 | ||||||||||
| UPC/EAN: | 4030641437640 | ||||||||||
| Weight: | 0.355 kg | ||||||||||
| Type: | BA9040.12/0013AC50/60HZ400V | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Dold 0043764:
Applications
This relay is specifically designed for industrial applications where power supply reliability is critical. It is used in systems where correct rotation direction of drives must be ensured, such as in conveyor systems, pumps, or machine tools. Phase sequence monitoring prevents motors from starting in the wrong direction, which could cause mechanical damage. Application areas also include electrical distribution systems and enclosure construction, where network quality must be continuously monitored.
Functions and Equipment in Detail
The BA9040.12/001 detects deviations in the three-phase network and responds by switching the output contacts. The contact configuration consists of 2 changeover contacts, which can be used to control auxiliary circuits or alarms. Phase sequence detection is activated in this variant, meaning the device recognizes an incorrect phase sequence (e.g., L1-L3-L2 instead of L1-L2-L3) and reacts accordingly. Response delay is not included in this version, enabling an immediate reaction upon detection of a fault. The rated voltage is 3AC 400 V at 50/60 Hz, with a measurement range up to 3 AC 690 V. The operating voltage is connected via terminals L1, L2, and L3.
Technology Explained Simply
The device operates according to IEC/EN 60255-1 standards and continuously monitors the voltage values of the three phases. If a deviation exceeds 100% of the set asymmetry (standard 100%) or if a phase failure occurs, the output contact is triggered. The LED indicators signal the operating status: the red LED lights up when the operating voltage is applied, and the green LED lights up when the output relay is activated. The wire connection terminals are designed for 2 x 2.5 mm² solid or 2 x 1.5 mm² stranded wire with ferrules according to DIN 46228-1/-2/-3/-4. The tightening torque is 0.8 Nm. Mounting is done via a DIN rail according to IEC/EN 60715, enabling quick and secure installation in enclosures.
Compatibility and Accessories
The relay is designed for use in enclosures and is compatible with standard control systems. It can be used in combination with other monitoring devices or protection relays to implement a comprehensive protection concept. The width is 45 mm, making it suitable for installation in standard enclosures. The UKCA and CCC certifications confirm compliance with applicable safety and quality standards.
Mounting and Installation
Mounting is done via a DIN rail, allowing the device to be quickly integrated into the enclosure without additional fastening elements. The connection terminals are designed for copper conductors, with a stripping length of 10 mm. Wiring is done via terminals L1, L2, L3 for the network voltage and contacts 11, 12, 14 as well as 21, 22, 24 for output signals. The connection terminals are equipped with self-lifting connection washers, ensuring a secure and durable connection.
Advantages in Operation
By detecting network disturbances early, the BA9040.12/001 contributes to operational safety and availability of the system. Preventive maintenance is enabled, as disturbances can be detected before a failure occurs. Simple wiring and clear signaling via LED indicators facilitate commissioning and maintenance. The robust design and proven Dold quality ensure long service life and reliable performance under industrial conditions. The device is designed for use in environments with temperatures up to 60 °C, making it suitable for industrial applications.
| Technical data | |
| 1- / 3-phase | 3 |
| Enclosure design | Switch cabinet |
| Measuring range max. | 3 AC 690 V |
| Output contacts | 2 C/O contacts |
| Standard measuring range | 3 AC 400 V |
| Width | 45 mm |
| Type | BA 9040 |
| Operate delay | |
| Variant | |
| Contact equipping | 2 changeover contacts |
| Nominal voltage | 3AC 400 V 50/60 Hz |
| Time delay | without |
| Approvals and Markings | UKCA, CCC |
| Variant | With phase sequence detection. Without time delay |
